High Mount Stop Lamp Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

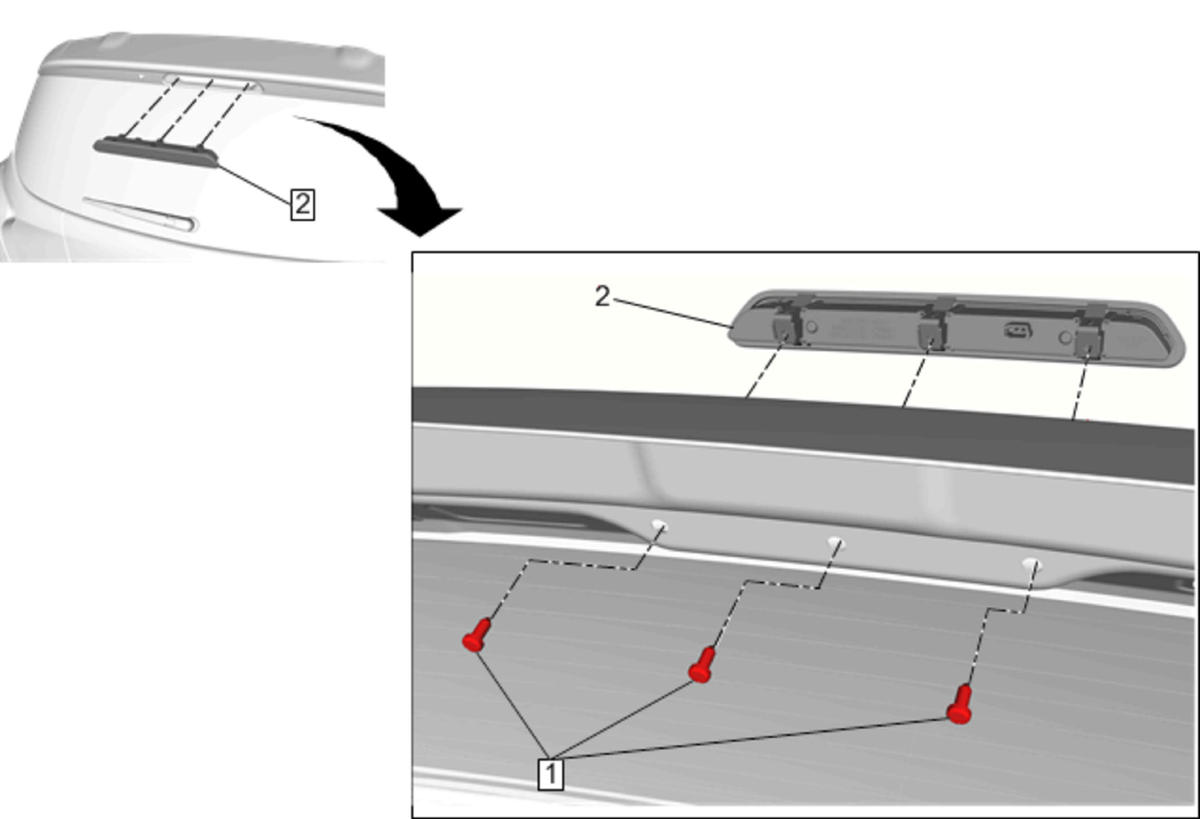

| Callout | Component Name |
|---|---|
| 1 | High Mount Stop Lamp Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | High Mount Stop Lamp Assembly Procedure Release the electrical connector and light emitting diode (LED) lamp from the cover. |
