Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

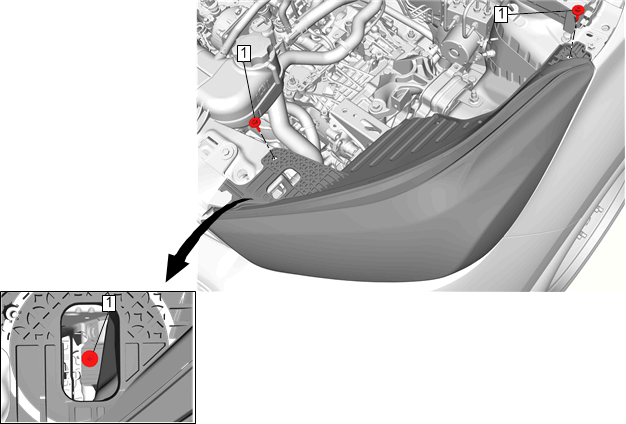

    Fig 1: Headlamp Screw
    GM4208719Courtesy of GENERAL MOTORS COMPANY
  1. Remove the headlamp screw (1) and pull the headlamp assembly forward far enough to access the electrical connector.

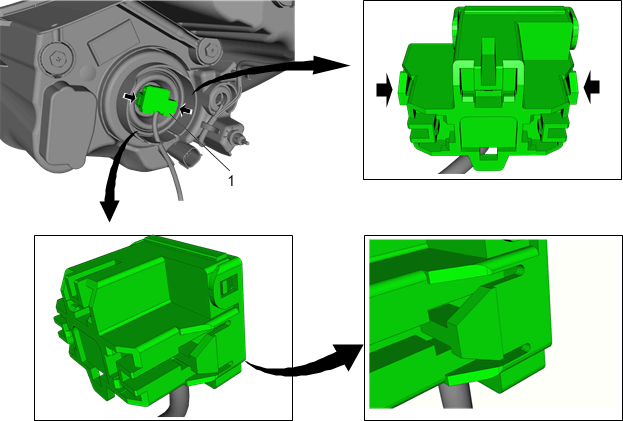

    2. Fig 2: Headlamp Electrical Connector
    GM4208726Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Push the retaining tab and then remove the electric connector from the headlamp.

  2. Disconnect the headlamp electrical connector (1).

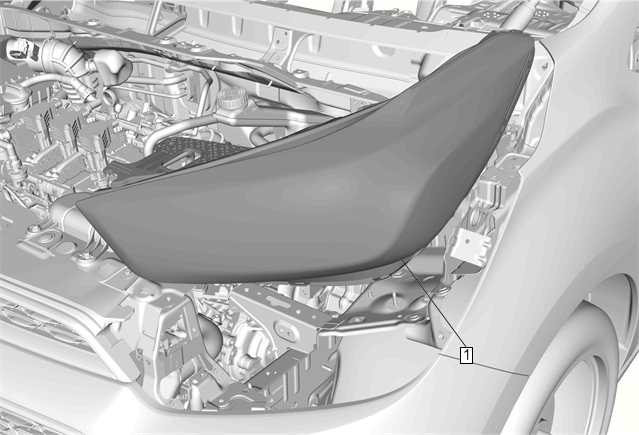

    3. Fig 3: Headlamp Assembly
    GM4208732Courtesy of GENERAL MOTORS COMPANY
  3. Remove the headlamp assembly (1).
