Light Pattern / Scheme of Headlamps
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

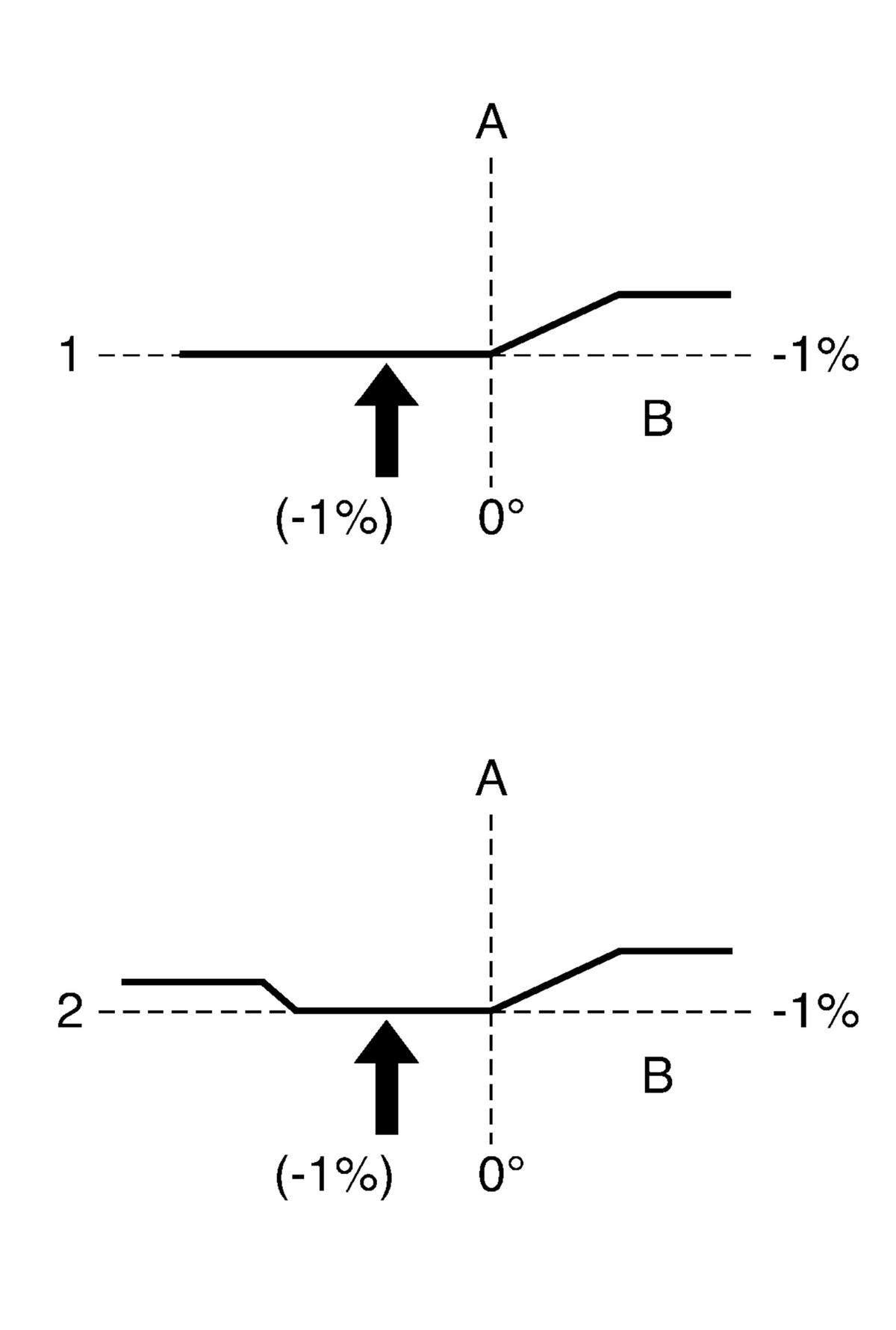

A = Kink of cut-off line for the left/right setting
B = Horizontal area of the cut-off line for up/down setting
1 and 2 = Depending on the headlamp setup the outer sections will be straight or increasing.
