Front Turn Signal Lamp Bulb Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

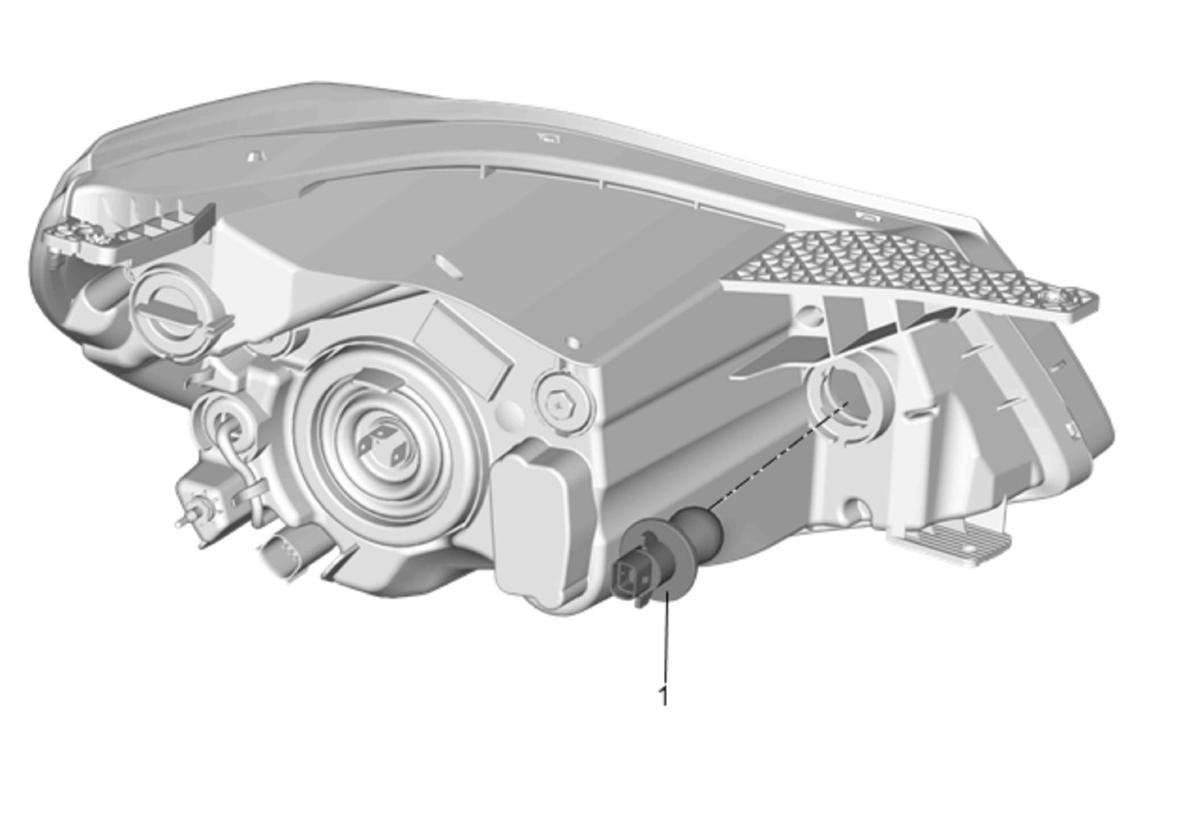

| Callout |
Component Name |
| 1 |
Front Turn Signal Lamp Bulb Socket Procedure
- Rotate the front turn signal lamp bulb socket counter-clockwise and remove from the headlamp housing.
- Hold the front turn signal lamp socket, rotate the front turn signal lamp bulb counter-clockwise and remove from the socket.
|
