Front Side Turn Signal Lamp Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

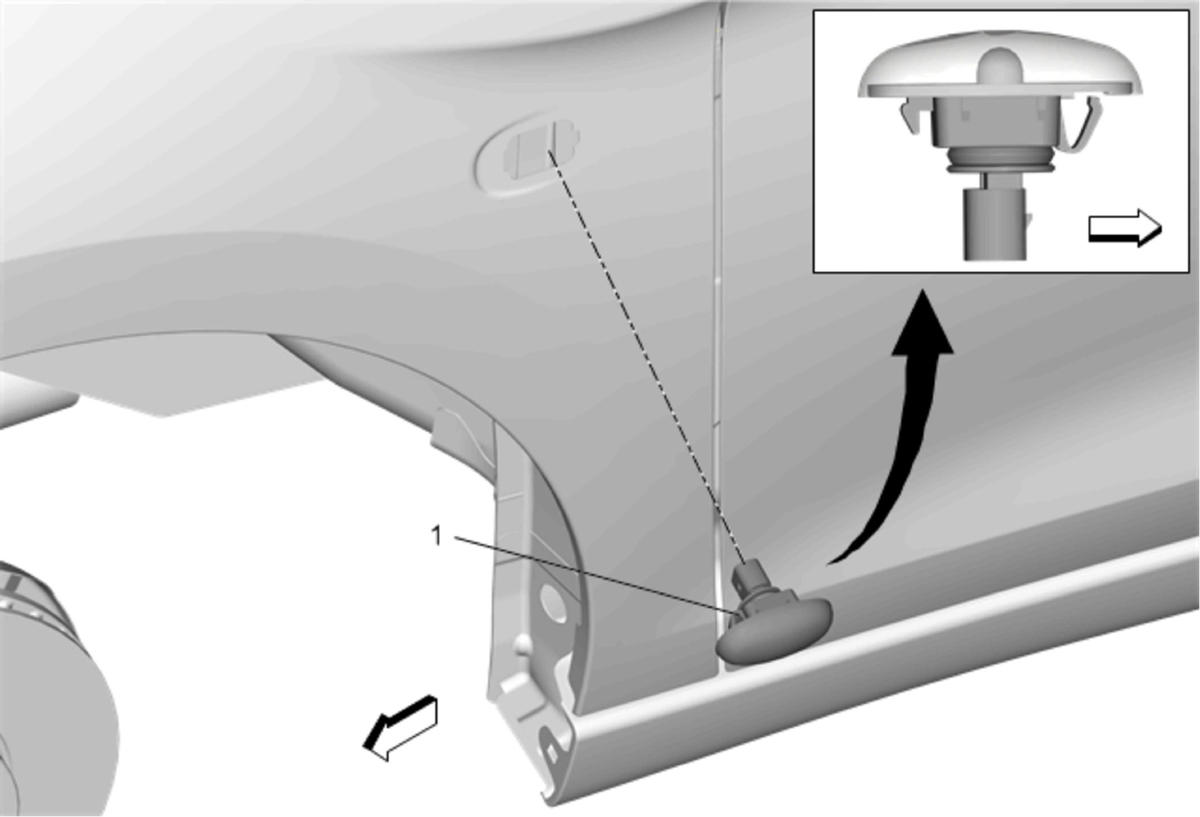

| Callout |
Component Name |
| 1 |
Front Side Turn Signal Lamp Procedure
- Slide lamp to the front and lift up the rear end of lamp to remove it.
- Disconnect electrical connector.
- Replace the bulb, as needed.
|
