Aiming Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Alignment Points On Target Screen

Courtesy of GENERAL MOTORS COMPANY

Park the vehicle 7.6 m (25 ft) away from the target screen (a).
Measure from the center of the fog lamp to the ground line. Using this measurement, mark the horizontal center line (2) of the fog lamp on the target screen directly in front of the vehicle.
Turn ON the fog lamps. The top of the fog lamp beam image (4) on the target screen should be 102 mm (4 in) below the center of the fog lamp lens height.

Fig 2: Rotate Front Wheelhouse Liner Filler Clockwise For RH

Courtesy of GENERAL MOTORS COMPANY

To access the adjusting screw, rotate the front wheelhouse liner filler (1) clockwise for RH and counter-clockwise for LH to remove it from the front wheelhouse liner.

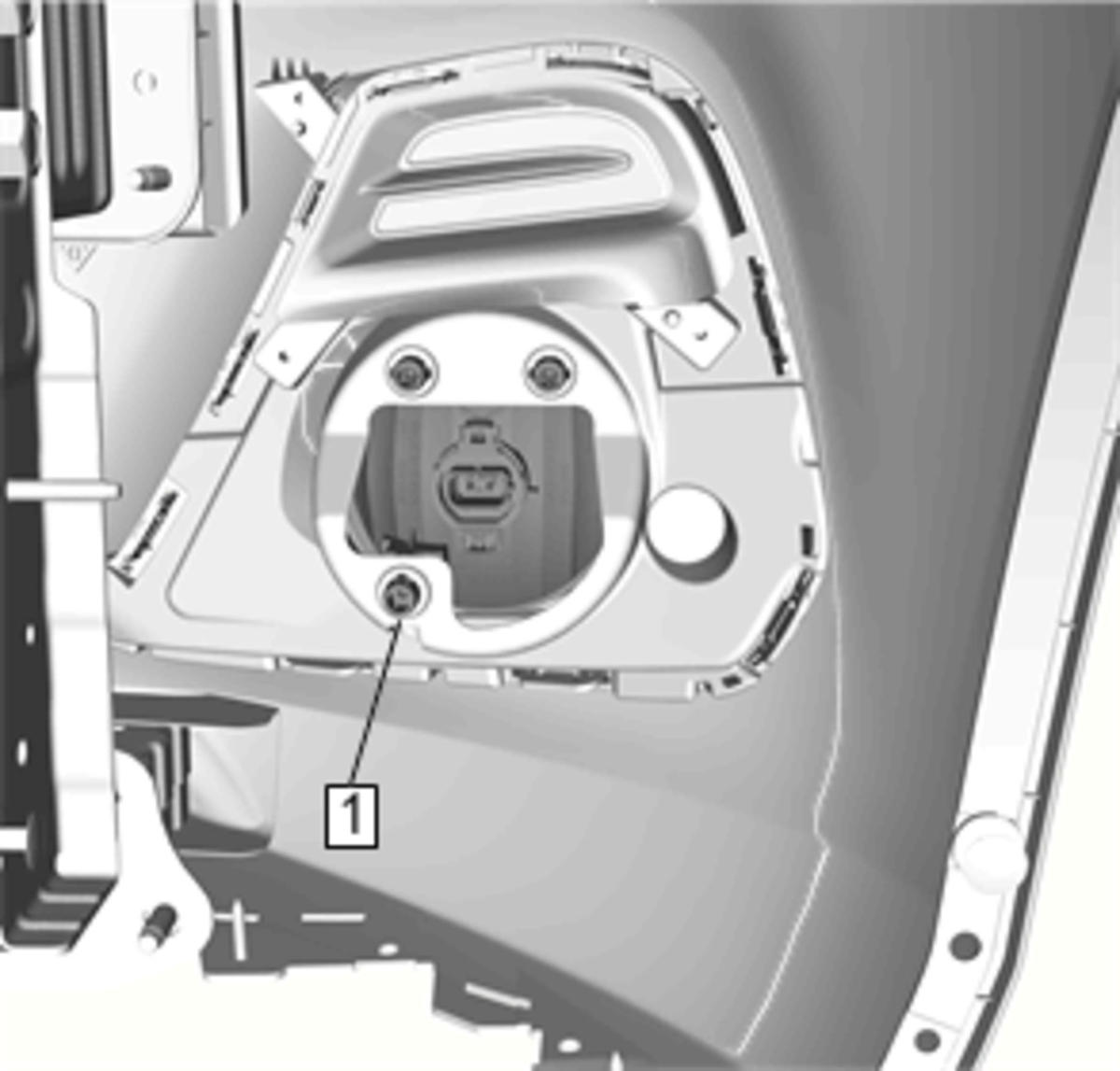

Fig 3: Fog Lamp Adjusting Screw

Courtesy of GENERAL MOTORS COMPANY

Adjust the fog lamp as required using the adjusting screw (1).
Turn OFF the fog lamps.
