Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to Halogen Bulb Warning .

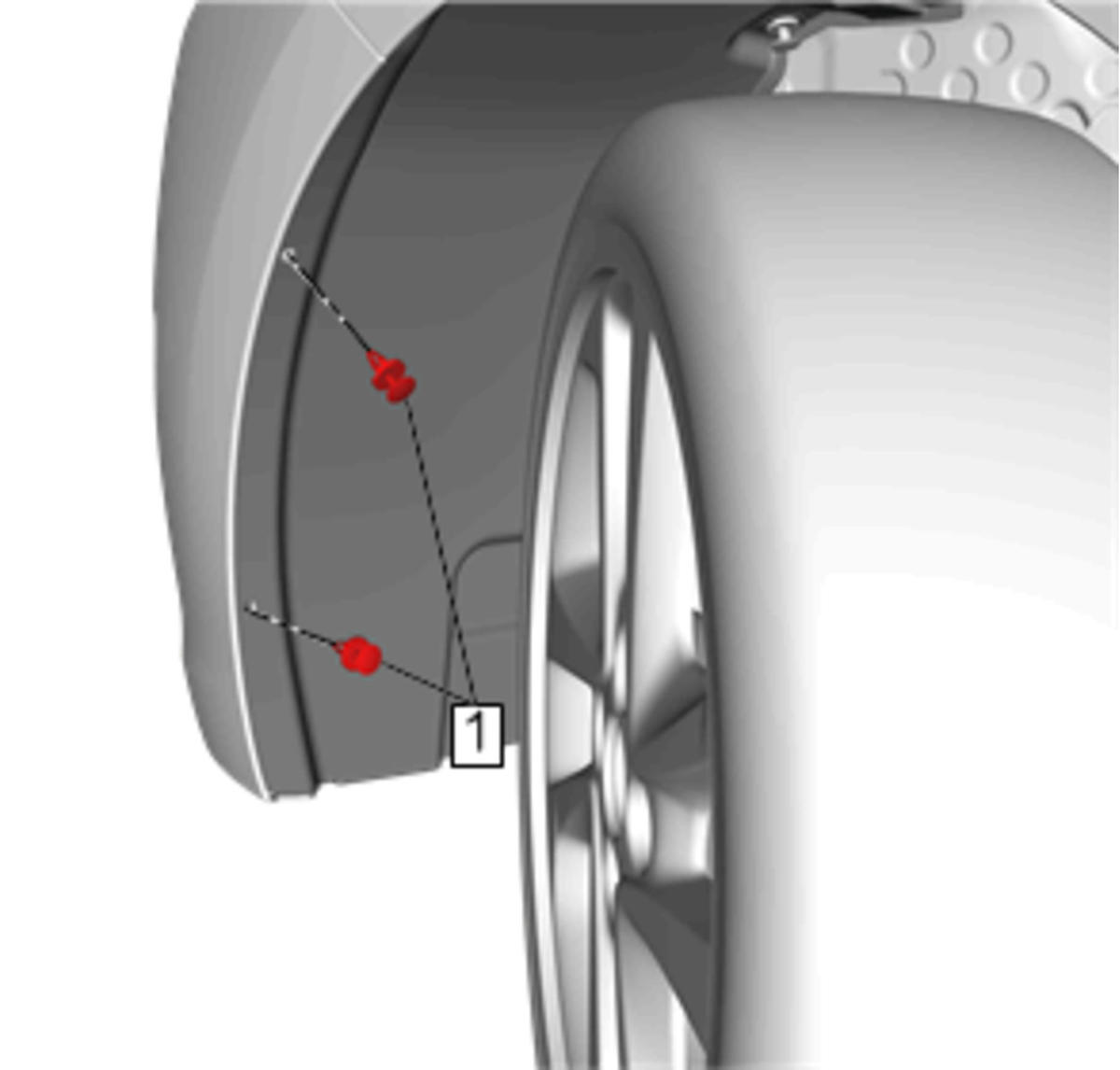

Fig 1: Two Push Nuts On Outside Of Wheelhouse Liner

Courtesy of GENERAL MOTORS COMPANY

Tilt the wheel and tire and remove the two push nuts (1) on outside of wheelhouse liner.

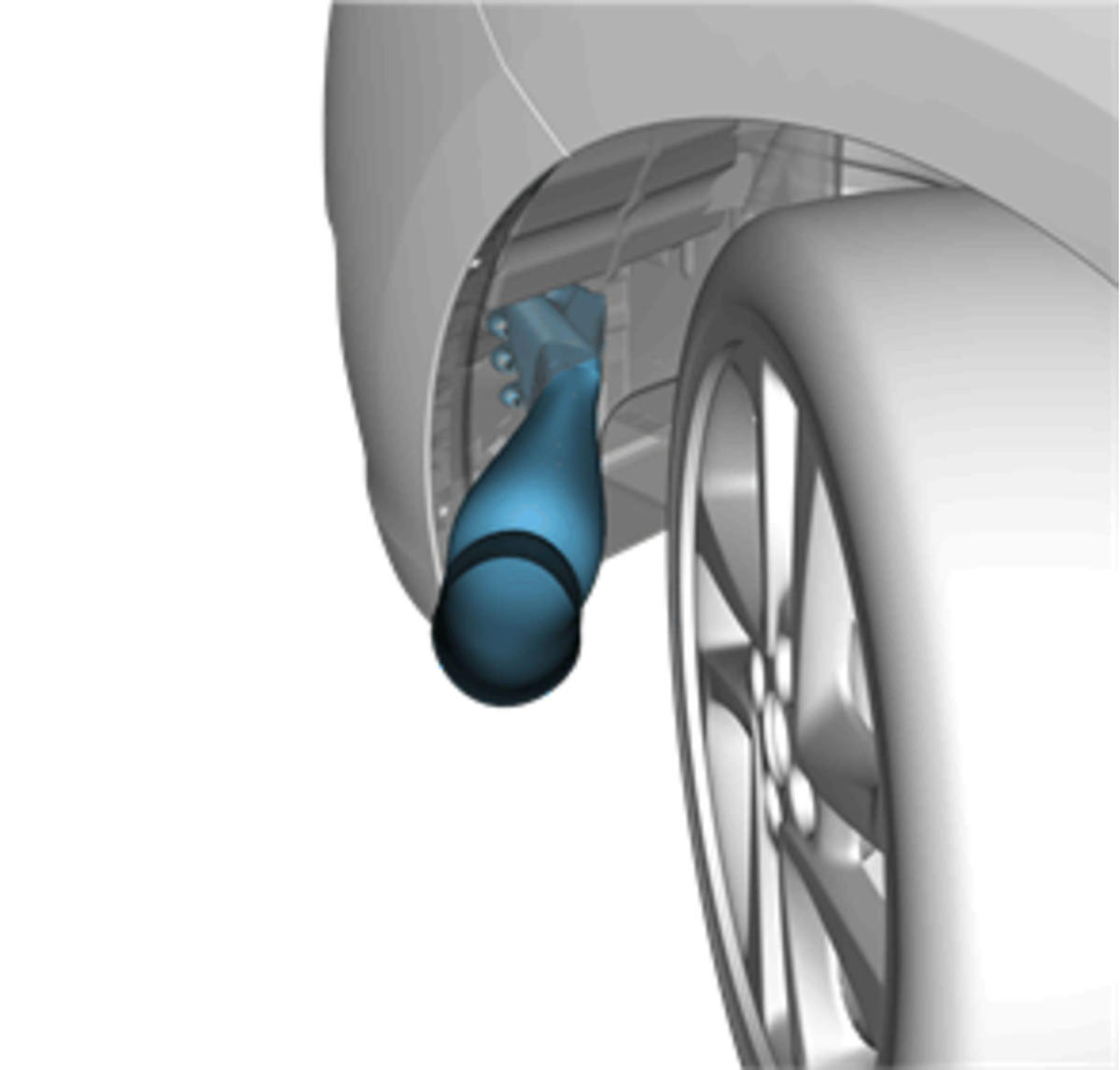

Fig 2: Pull Out Wheelhouse Liner Slightly To Access Fog Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Pull out the wheelhouse liner slightly to access the daytime running lamp bulb.
Disconnect the electrical connector from the bulb holder.

Fig 3: Daytime Running Lamp Bulb Assembly

Courtesy of GENERAL MOTORS COMPANY

Rotate the daytime running lamp bulb assembly (1) counterclockwise and pull it out from the lamp housing.
