Center Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

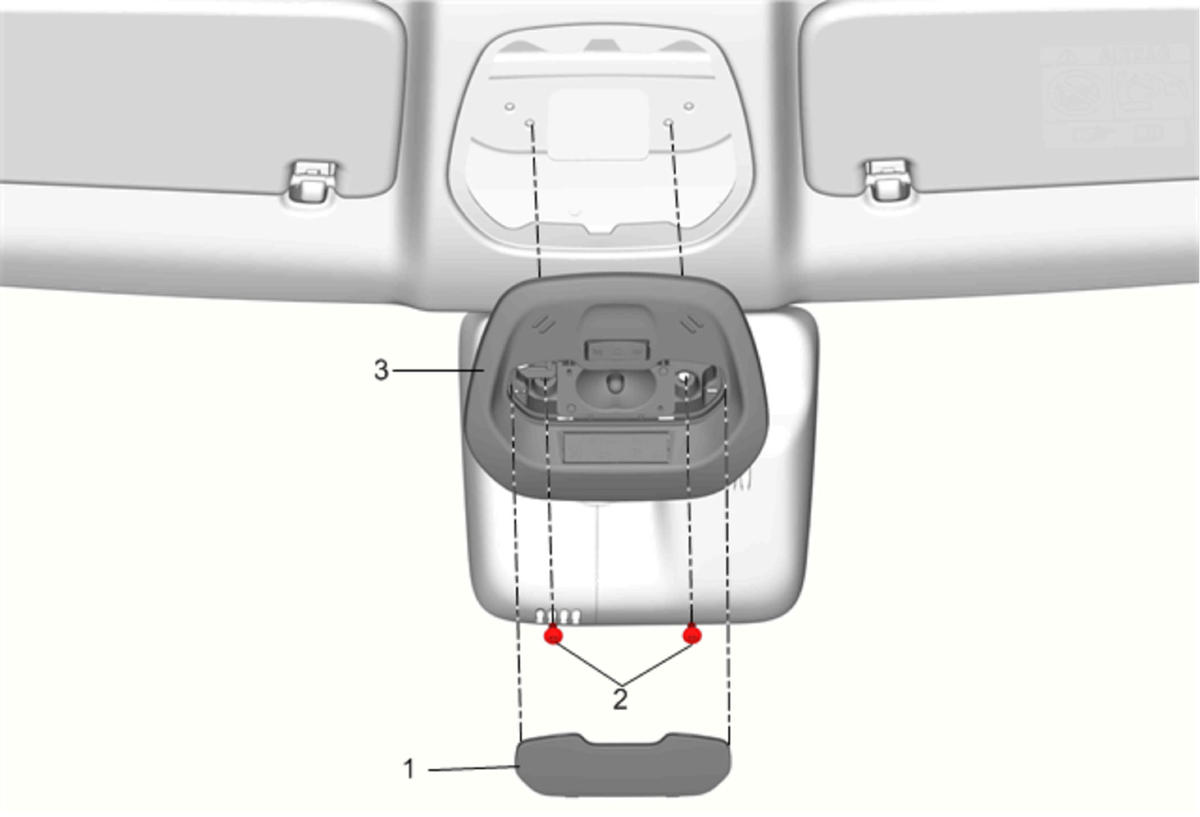

Fig 1: Center Courtesy Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Center Courtesy Lamp Lens Procedure Carefully use the appropriate tool to release the retainers securing the lens to the center reading lamp assembly.
2	Center Courtesy Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Center Courtesy Lamp Procedure Disconnect the electrical connections. Transfer parts as needed.

Callout

Component Name

Center Courtesy Lamp Lens
Procedure
Carefully use the appropriate tool to release the retainers securing the lens to the center reading lamp assembly.

Center Courtesy Lamp Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Center Courtesy Lamp

Procedure

Disconnect the electrical connections.
Transfer parts as needed.
