Rear Bumper Lower Fascia Replacement (Active)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

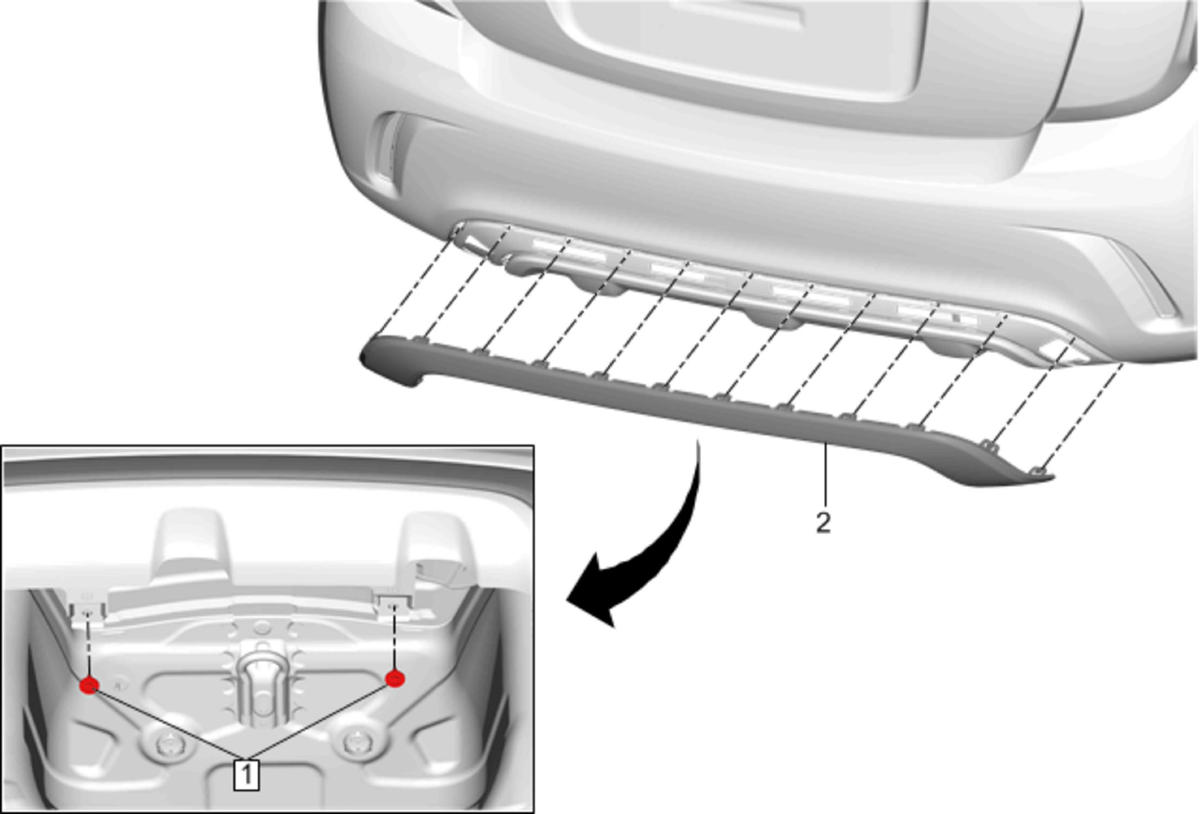

Fig 1: Rear Bumper Lower Fascia (Active)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Bumper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Rear Bumper Fascia Procedure Working from the inside of rear bumper fascia. Use a small flat-bladed tool to release the retainer from the rear bumper fascia.

Callout

Component Name

Rear Bumper Fascia Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
4 N.m (35 lb in)

Rear Bumper Fascia

Procedure

Working from the inside of rear bumper fascia.
Use a small flat-bladed tool to release the retainer from the rear bumper fascia.
