Front Bumper Fascia Air Deflector Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

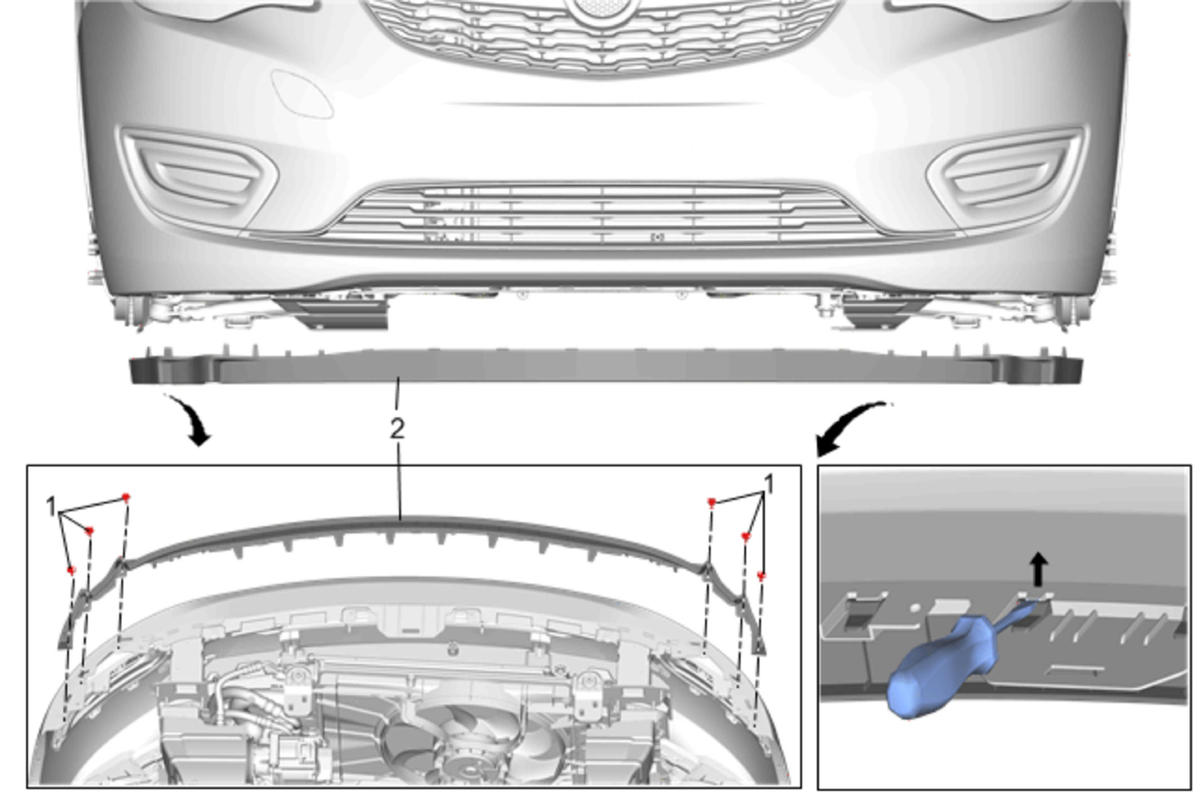

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement . |
|
| 1 | Front Bumper Fascia Air Deflector Screw (Qty: 6)
CAUTION:
Refer to Fastener Caution
. Tighten 8 N.m (71 lb in) |
| 2 | Front Bumper Fascia Air Deflector Procedure Use a small flat-bladed tool to release the retainer from the front bumper fascia
NOTE:
Please be careful to remove the air deflector, It can be easily damaged.
|
