Front Bumper Energy Absorber Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

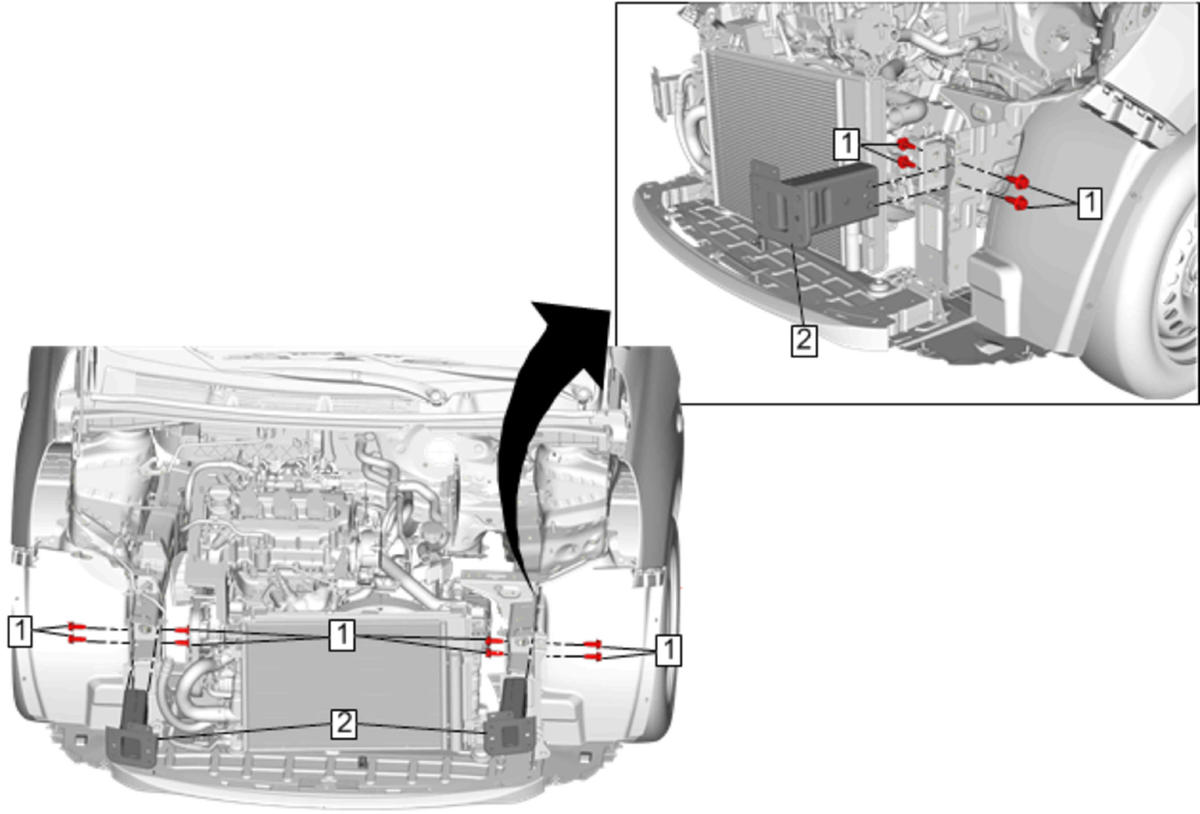

Fig 1: Front Bumper Energy Absorber

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement Remove the radiator front end upper tie bar. Refer to Front End Upper Tie Bar Replacement . Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .
1	Front Bumper Impact Bar Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . NOTE: Use only the original front bumper energy absorber bracket bolts. Replace bolts if damaged. Tighten 32 N.m (24 lb ft)
2	Front Bumper Energy Absorber

Callout

Component Name

Preliminary Procedures

Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement
Remove the radiator front end upper tie bar. Refer to Front End Upper Tie Bar Replacement .
Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .

Front Bumper Impact Bar Bolt (Qty: 8)

CAUTION: Refer to Fastener Caution .

NOTE: Use only the original front bumper energy absorber bracket bolts. Replace bolts if damaged.

Tighten
32 N.m (24 lb ft)

Front Bumper Energy Absorber
