Front Air Bags, Sensors and Pretensioners and Passenger Disable Switch (AYC/AYF)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

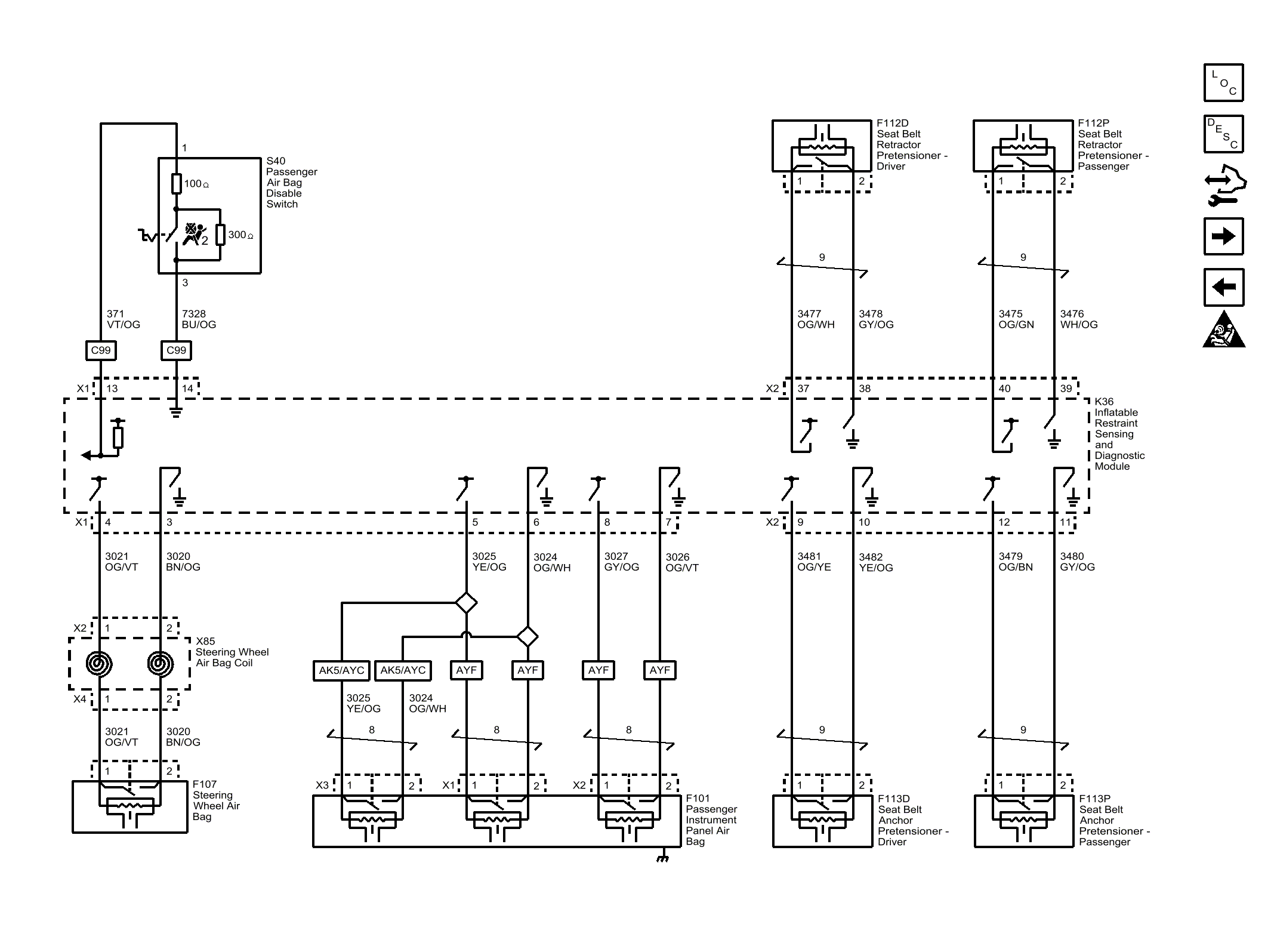

Fig 1: Front Air Bags, Sensors and Pretensioners and Passenger Disable Switch (AYC/AYF)
GM4322640Courtesy of GENERAL MOTORS COMPANY
