Instrument Panel Lower Airbag Replacement - Passenger Side

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

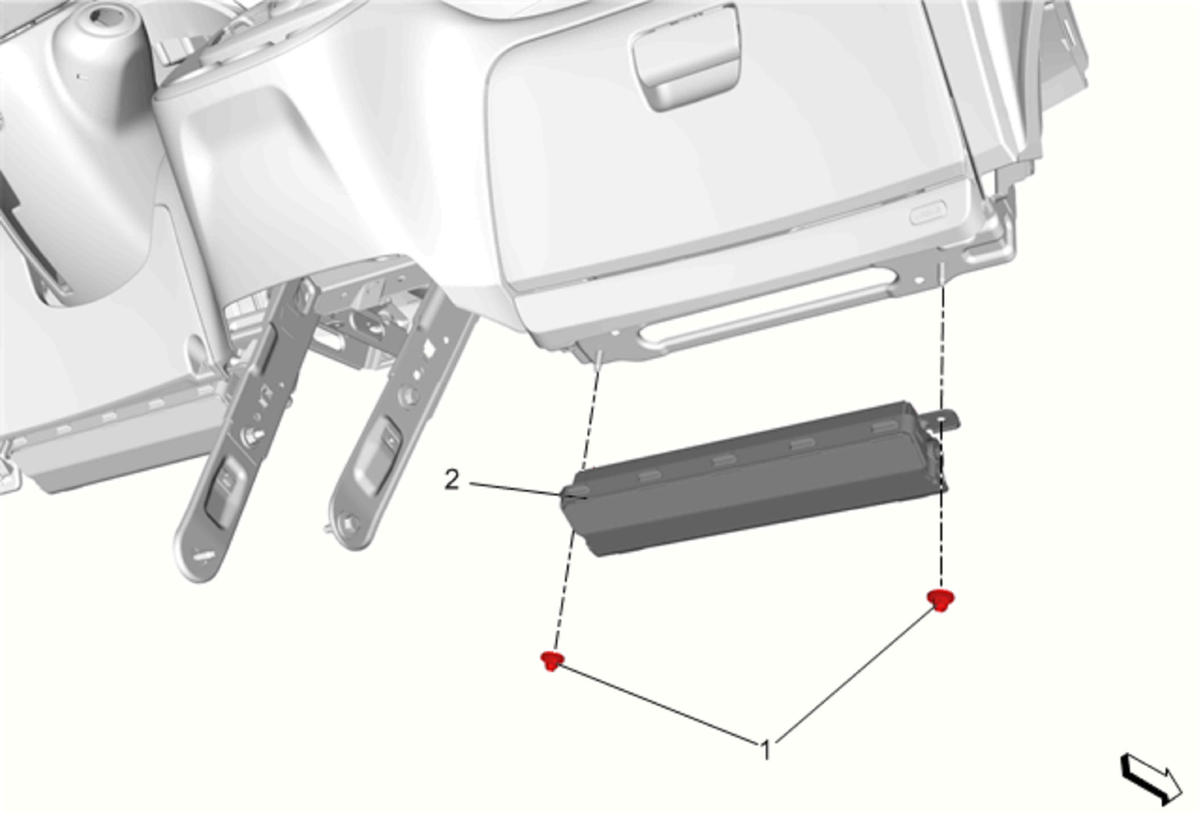

Fig 1: Inflatable Restraint Instrument Panel Lower Module - Passenger Side
GM4167030Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to SIR Warning .
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1 Inflatable Restraint Instrument Panel Lower Module Nut (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)
2 Inflatable Restraint Instrument Panel Lower Module

Procedure

  1. Disconnect the electrical connector.
  2. For proper handling and scrapping, refer to Inflatable Restraint Module Handling and Scrapping .
