Instrument Panel Airbag Disable Switch Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

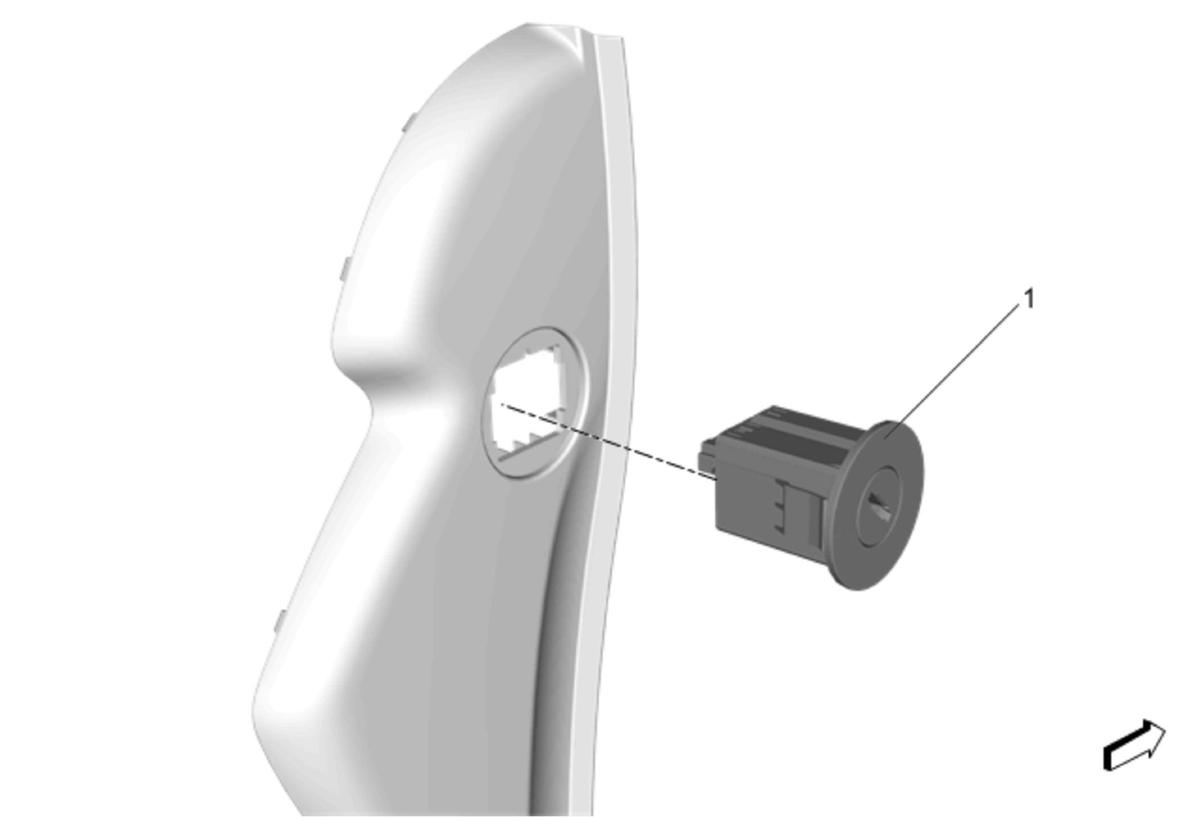

Fig 1: Instrument Panel Airbag Disable Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (With C99)Instrument Panel Outer Trim Cover Replacement (Without C99) .
1	Instrument Panel Airbag Disable Switch WARNING: Verify the proper installation of the airbag disable switch. Ensure the airbag disable switch is functioning properly by activating and deactivating the switch. If the airbag disable switch is not properly installed and its function is not verified, the airbag may discharge improperly and cause personal injury or death.

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (With C99)Instrument Panel Outer Trim Cover Replacement (Without C99) .

Instrument Panel Airbag Disable Switch

WARNING: Verify the proper installation of the airbag disable switch. Ensure the airbag disable switch is functioning properly by activating and deactivating the switch. If the airbag disable switch is not properly installed and its function is not verified, the airbag may discharge improperly and cause personal injury or death.
