Instrument Panel Airbag Arming Status Display Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

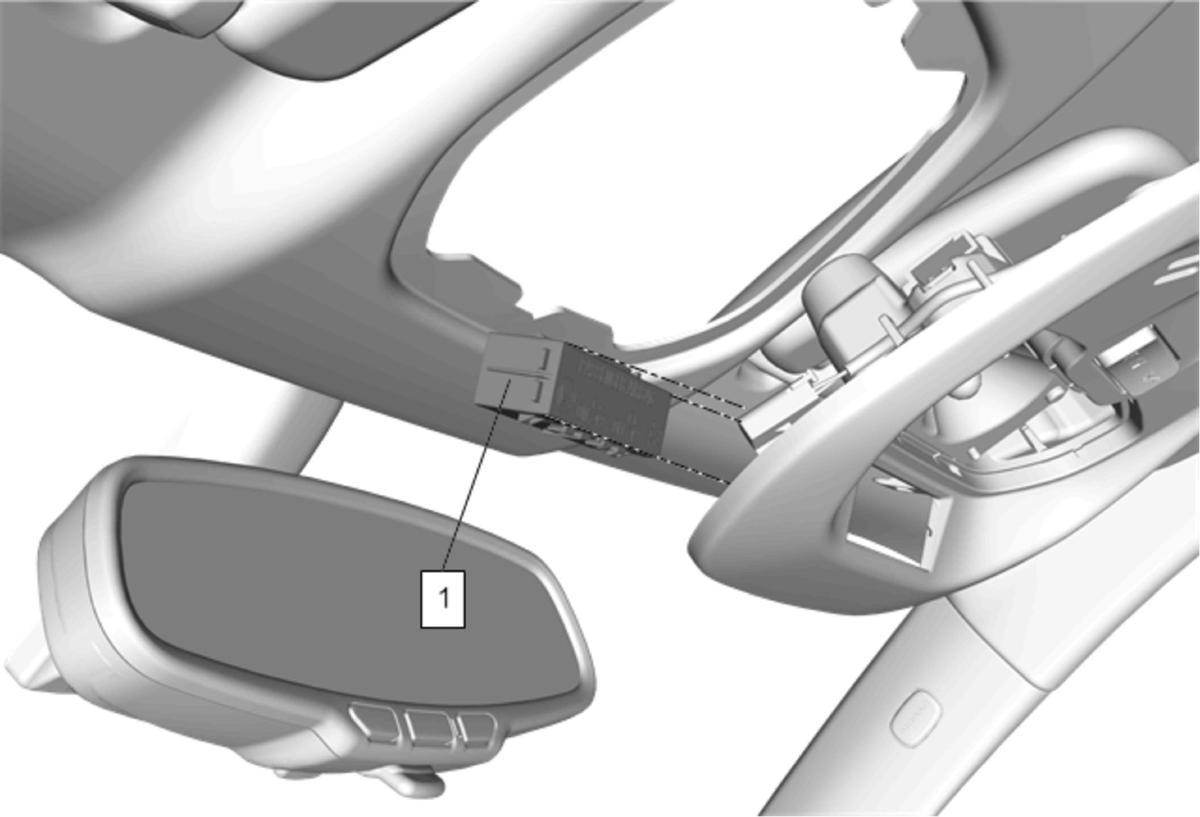

Fig 1: Instrument Panel Airbag Arming Status Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedures Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the center reading and courtesy lamp assembly. Refer to Center Reading and Courtesy Lamp Replacement .
1	Instrument Panel Inflatable Restraint Module Assembly Procedure Disconnect the electrical connector. Release tabs and remove the display from the lamp assembly.

Callout

Component Name

WARNING: Refer to Battery Disconnect Warning .

Preliminary Procedures

Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the center reading and courtesy lamp assembly. Refer to Center Reading and Courtesy Lamp Replacement .

Instrument Panel Inflatable Restraint Module Assembly

Procedure

Disconnect the electrical connector.
Release tabs and remove the display from the lamp assembly.
