Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: When replacing either a steering wheel or driver airbag, it is mandatory that both components are sourced from the same country. Parts from different countries are not interchangeable and may cause a malfunction of the air bag system causing personal injury.

WARNING: Refer to SIR Inflator Module Handling and Storage Warning .

WARNING: Refer to SIR Warning .

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Lower the steering column and move to the maximum rear end position.
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
To remove the airbag steering wheel module, push the spring retainers in the direction of the arrows.

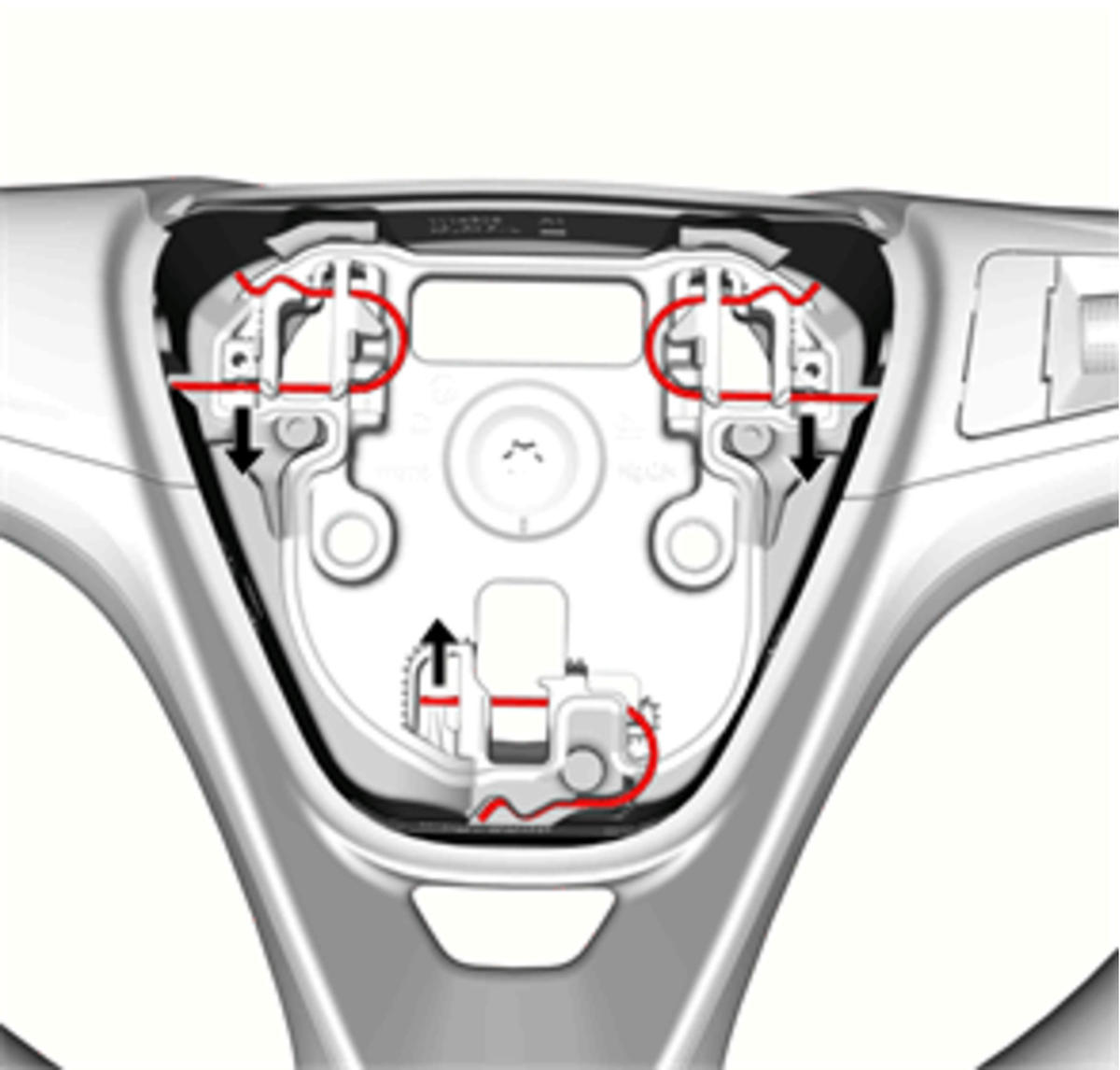

Fig 1: Airbag Steering Wheel Module Spring Retainers
Courtesy of GENERAL MOTORS COMPANY
Rotate the steering wheel in the 90 degrees to the right.

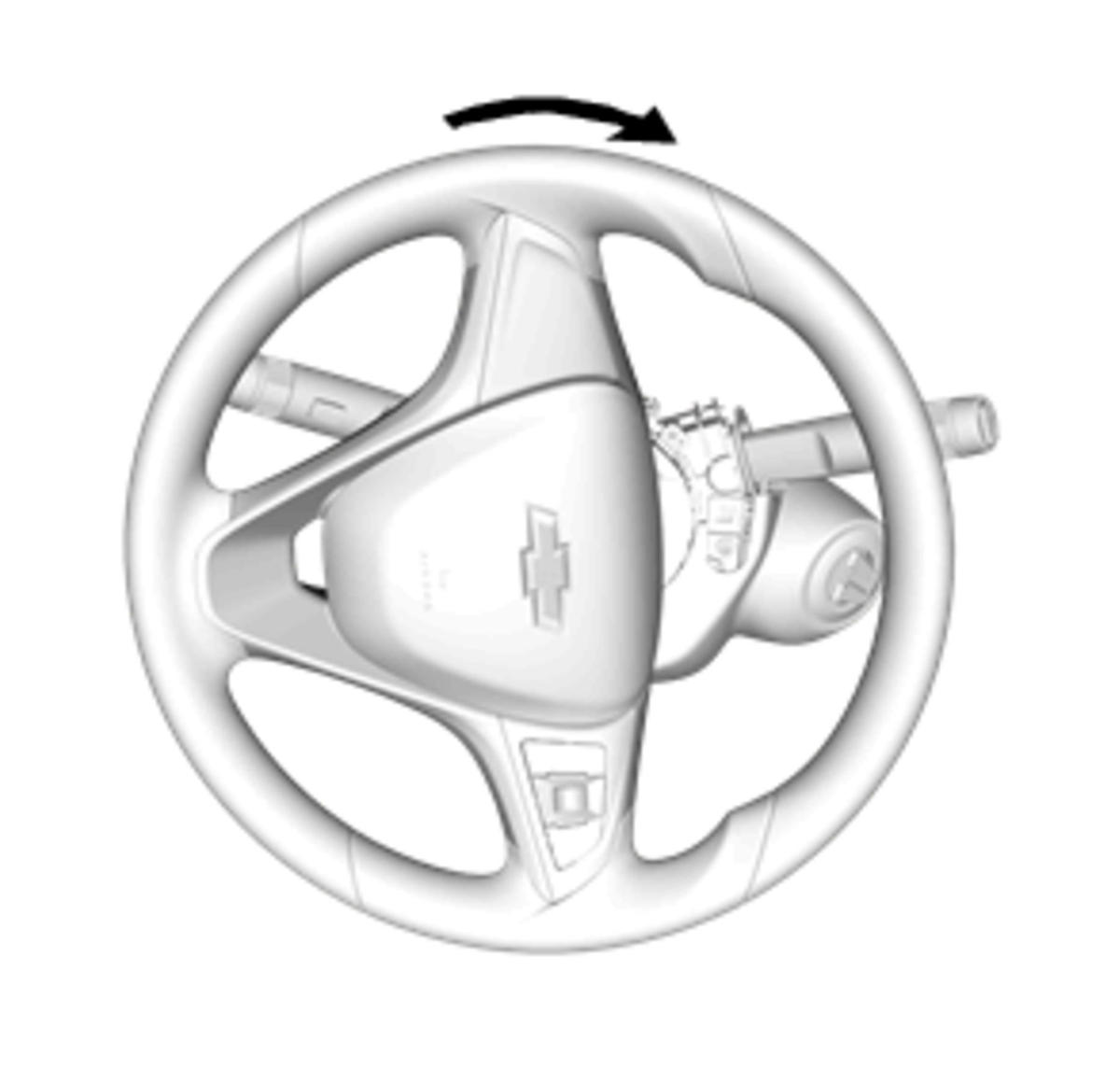

Fig 2: Rotate Steering Wheel 90 Degrees To Right
Courtesy of GENERAL MOTORS COMPANY

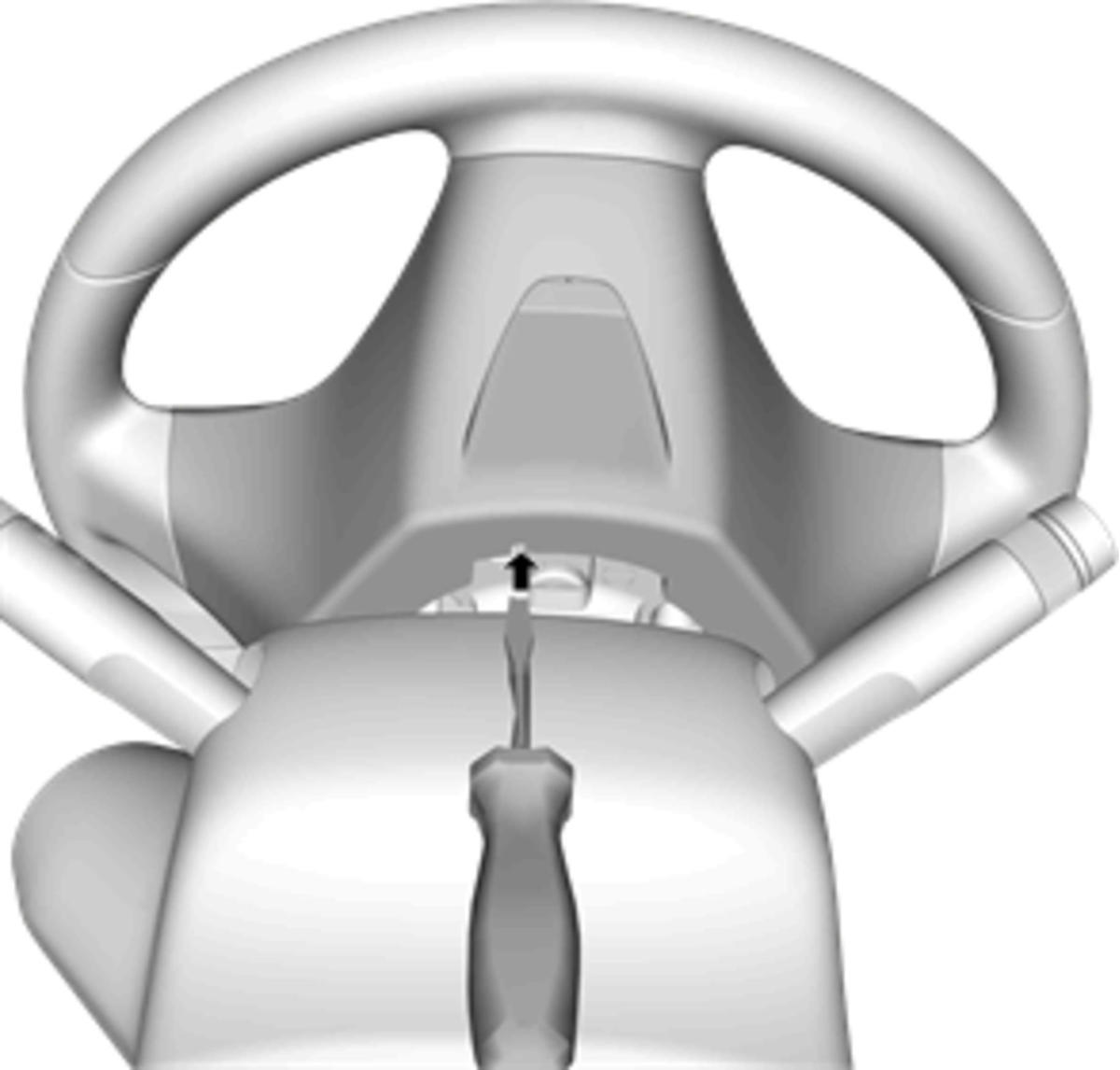

Insert a small flathead screwdriver on the back of the steering wheel.
TIP: The end tip of flathead screwdriver should be vertical. Refer to the upper picture.

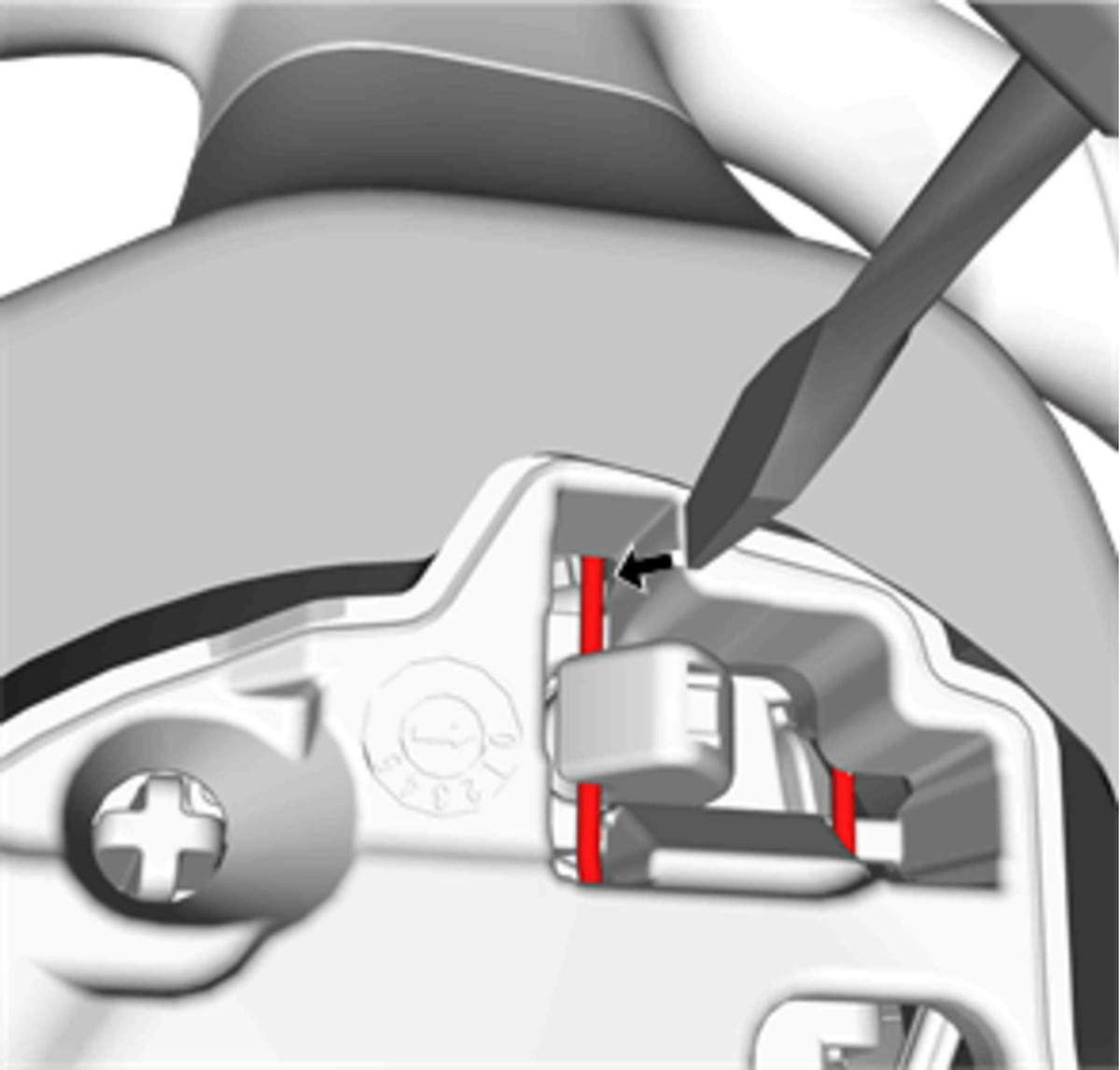

Fig 3: Inserting Flathead Screwdriver Vertically
Courtesy of GENERAL MOTORS COMPANY

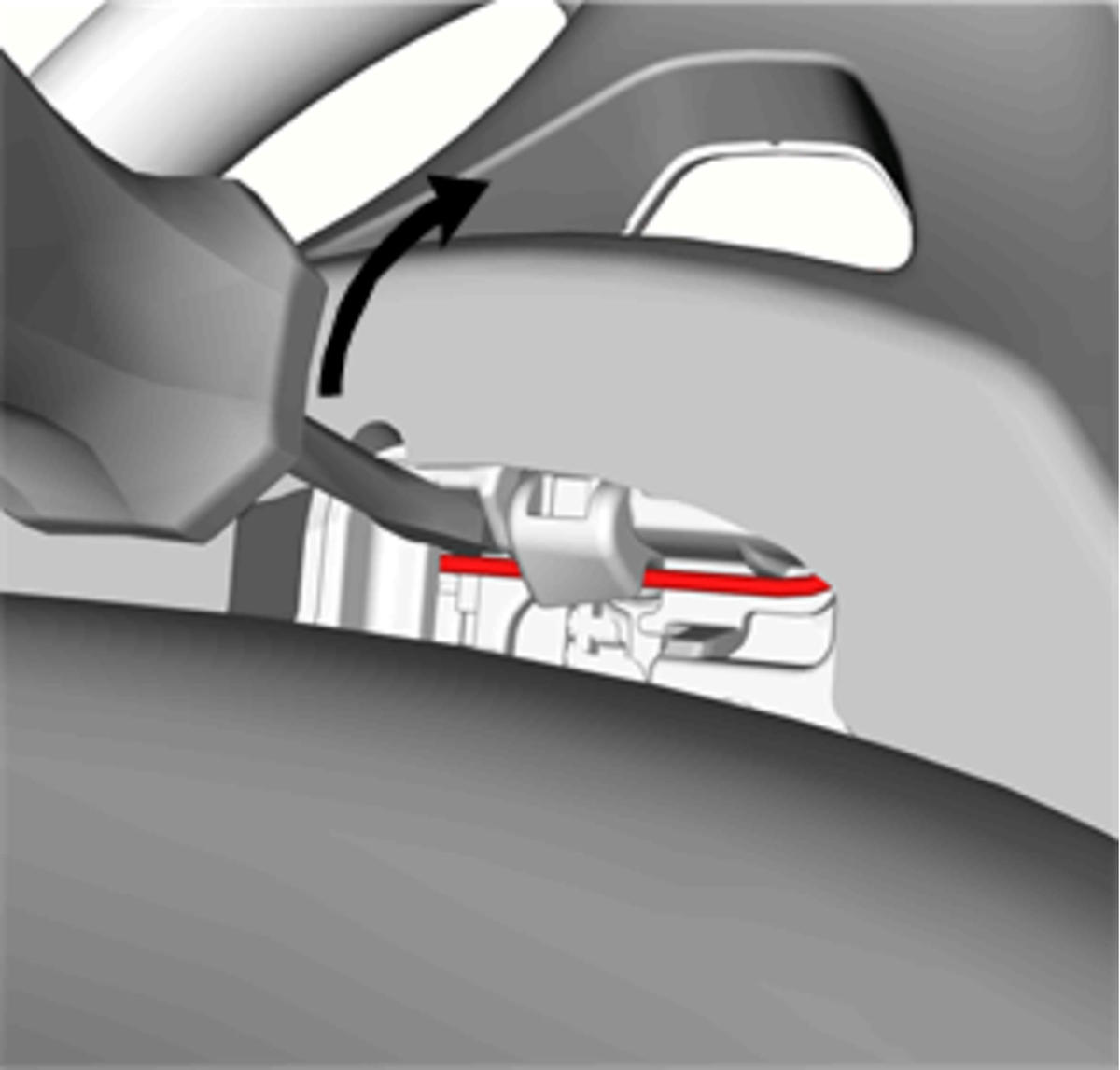

Pull the screwdriver in the opposite direction of the steering column to push the spring retainer.

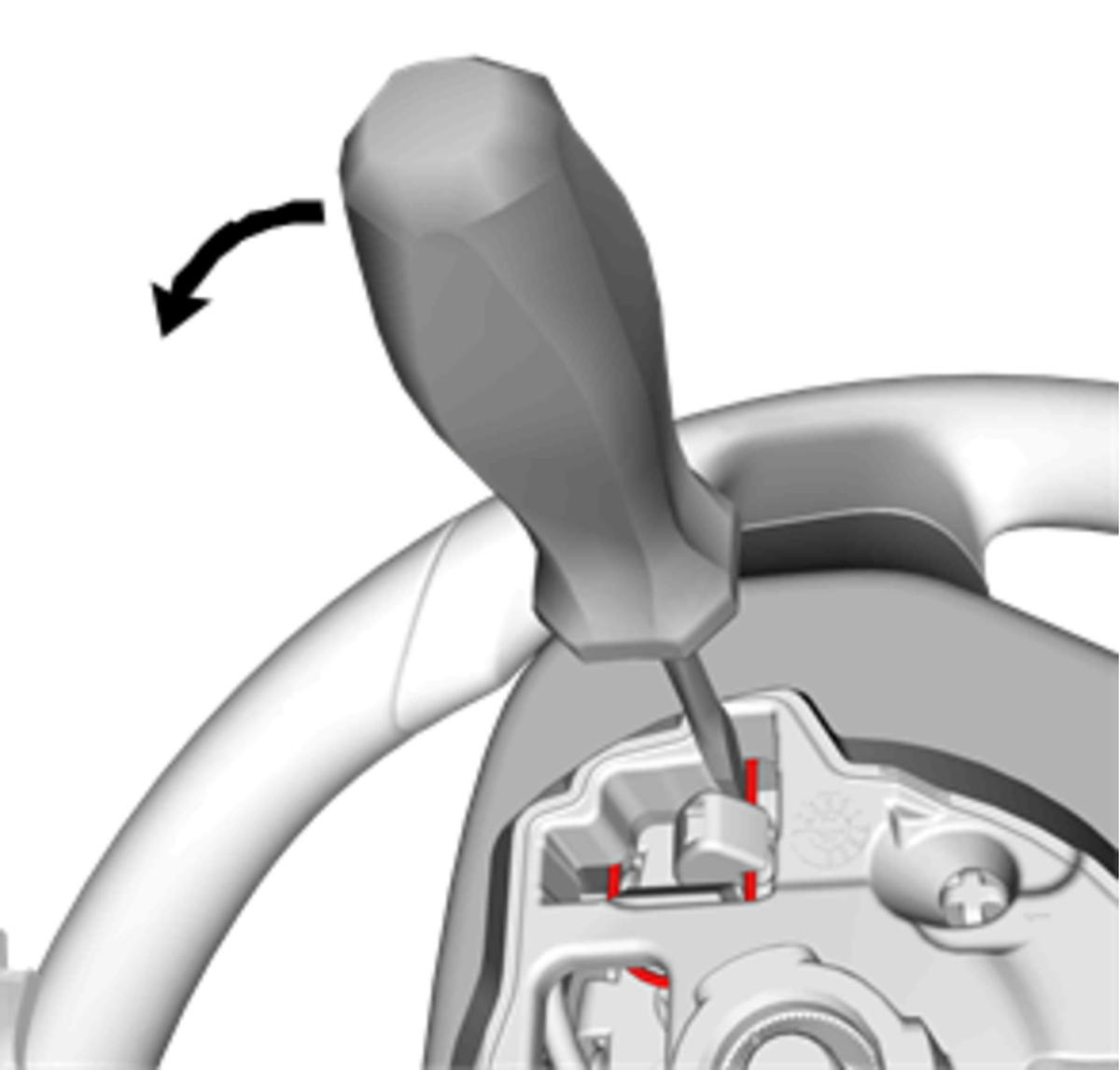

Fig 4: Pulling Screwdriver To Push Spring Retainer
Courtesy of GENERAL MOTORS COMPANY

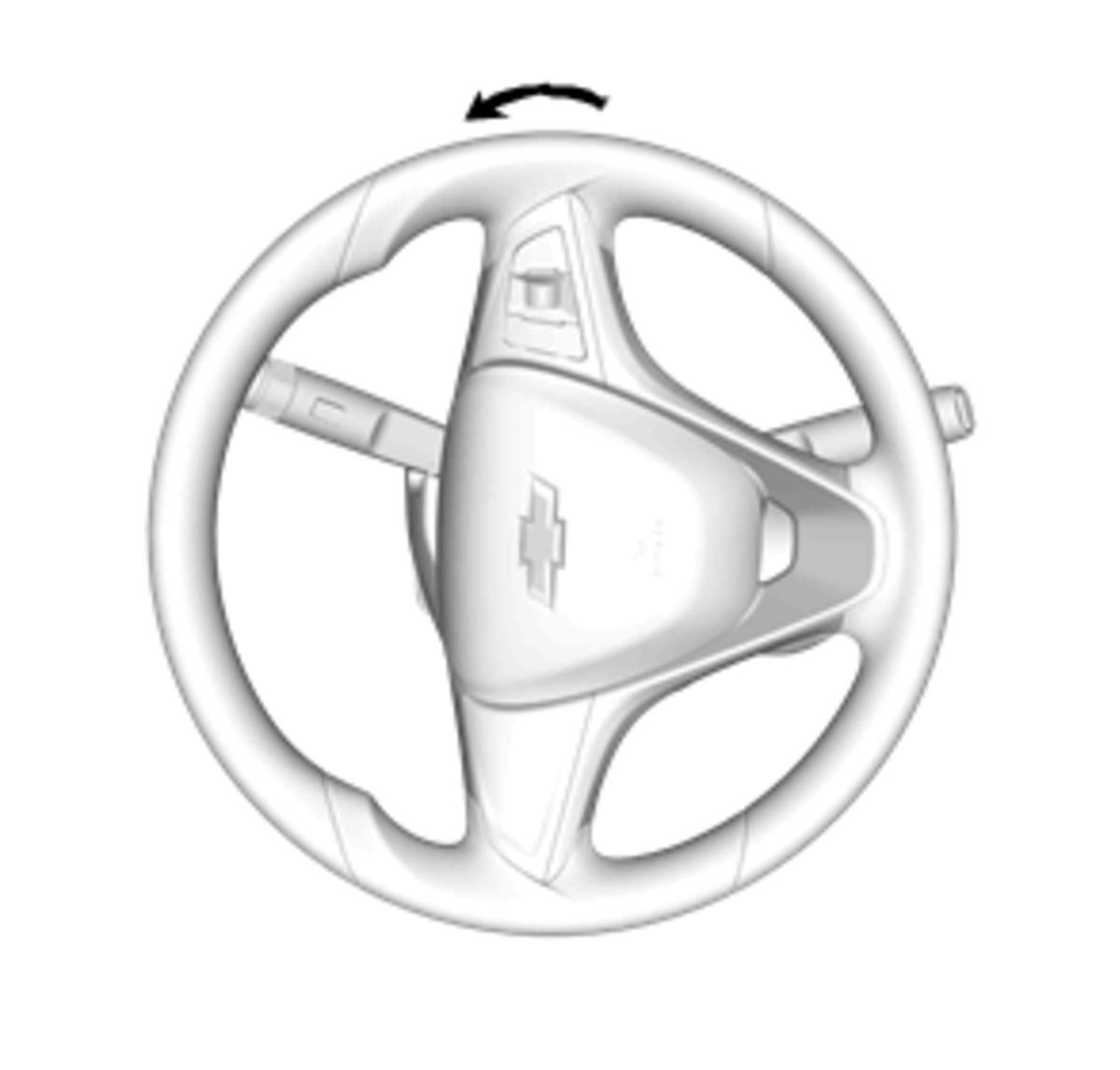

Rotate the steering wheel in the 90 degrees to the left.

Fig 5: Rotate Steering Wheel 90 Degrees To Left
Courtesy of GENERAL MOTORS COMPANY
TIP: The end tip of flathead screwdriver should be vertical. Refer to the upper picture.
Insert a small flathead screwdriver on the back of the steering wheel.

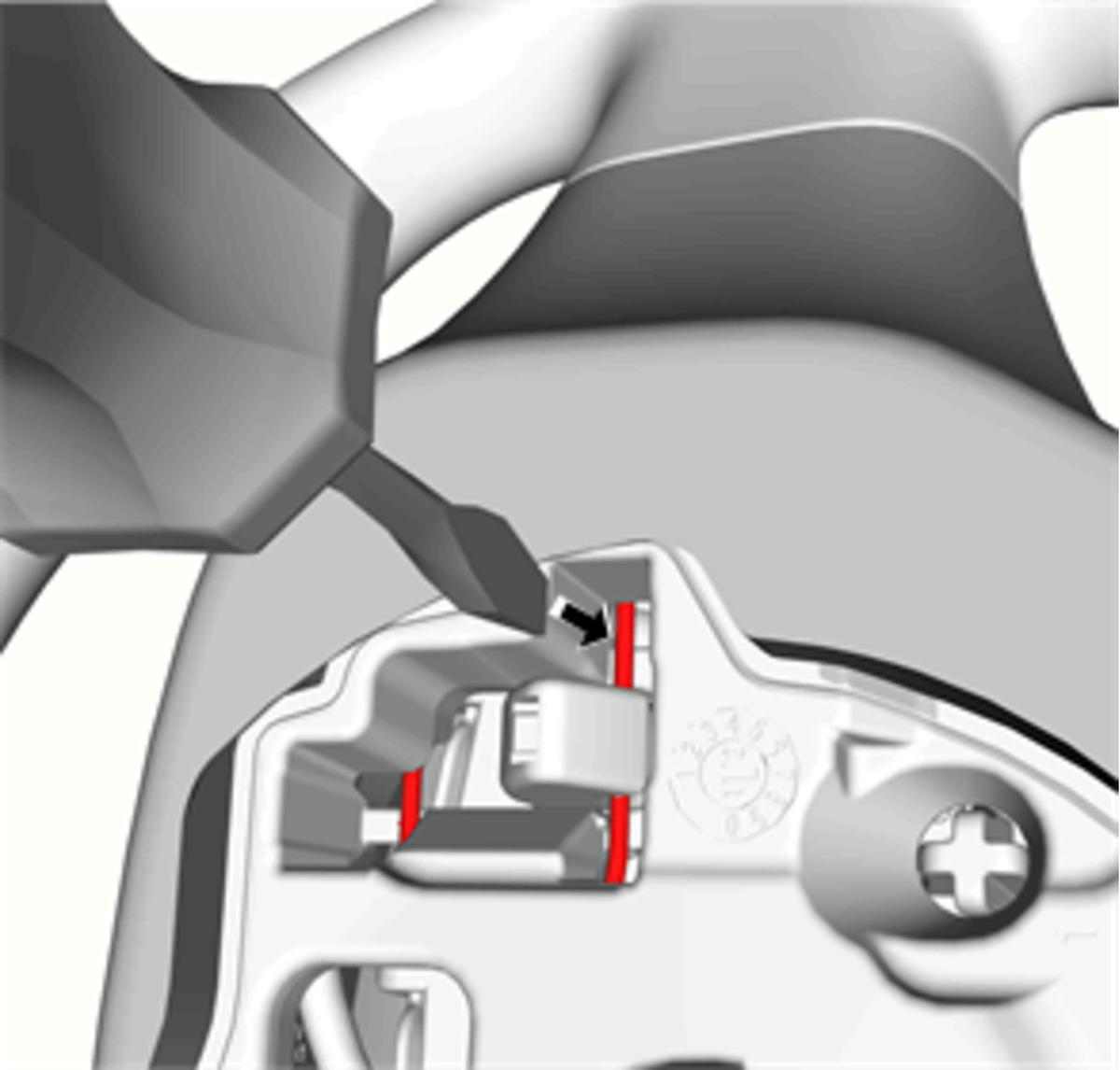

Fig 6: Inserting Flathead Screwdriver Vertically
Courtesy of GENERAL MOTORS COMPANY
Pull the screwdriver in the opposite direction of the steering column to push the spring retainer.

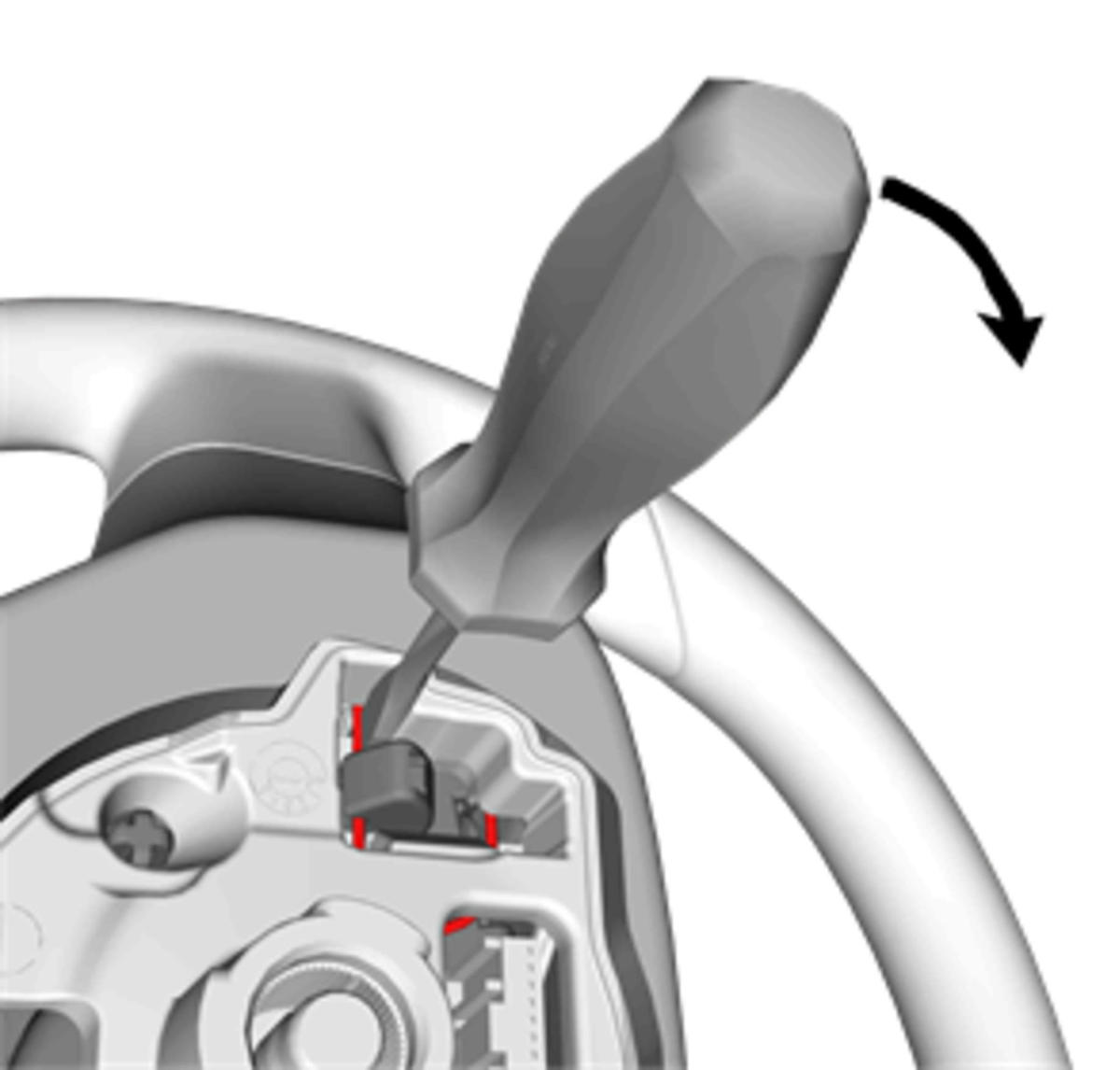

Fig 7: Pulling Screwdriver To Push Spring Retainer
Courtesy of GENERAL MOTORS COMPANY
Rotate the steering wheel in the 180 degrees.

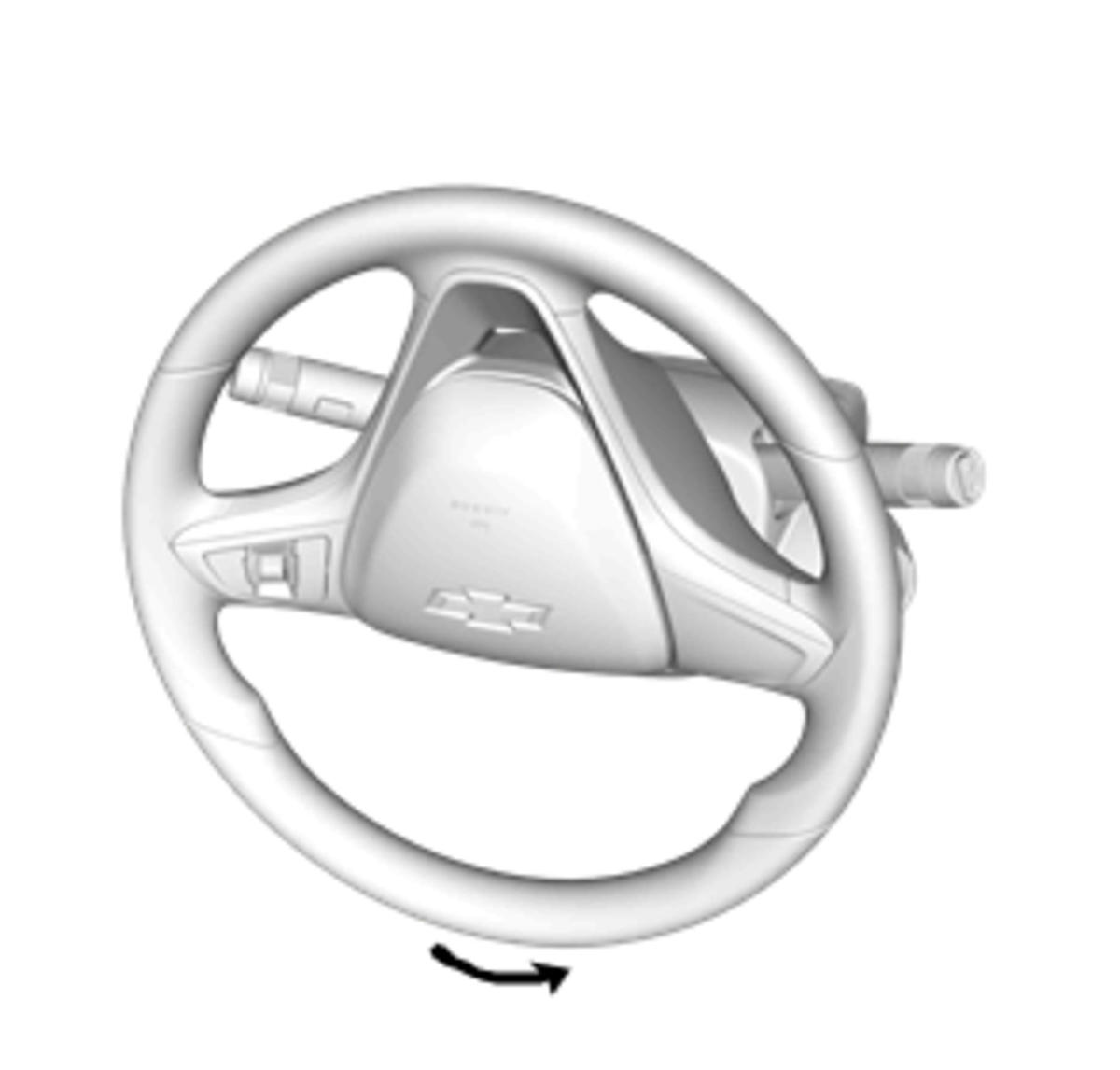

Fig 8: Rotate Steering Wheel 180 Degrees To Left
Courtesy of GENERAL MOTORS COMPANY
TIP: The end tip of flathead screwdriver should be horizontal. Refer to the upper picture.
Insert a small flathead screwdriver through the service openings on the back of the steering wheel.

Fig 9: Inserting Flathead Screwdriver Horizontally
Courtesy of GENERAL MOTORS COMPANY
Pull the screwdriver in the opposite direction of the steering column to push the spring retainer.

Fig 10: Pulling Screwdriver To Push Spring Retainer
Courtesy of GENERAL MOTORS COMPANY
Disconnect the electrical connectors.

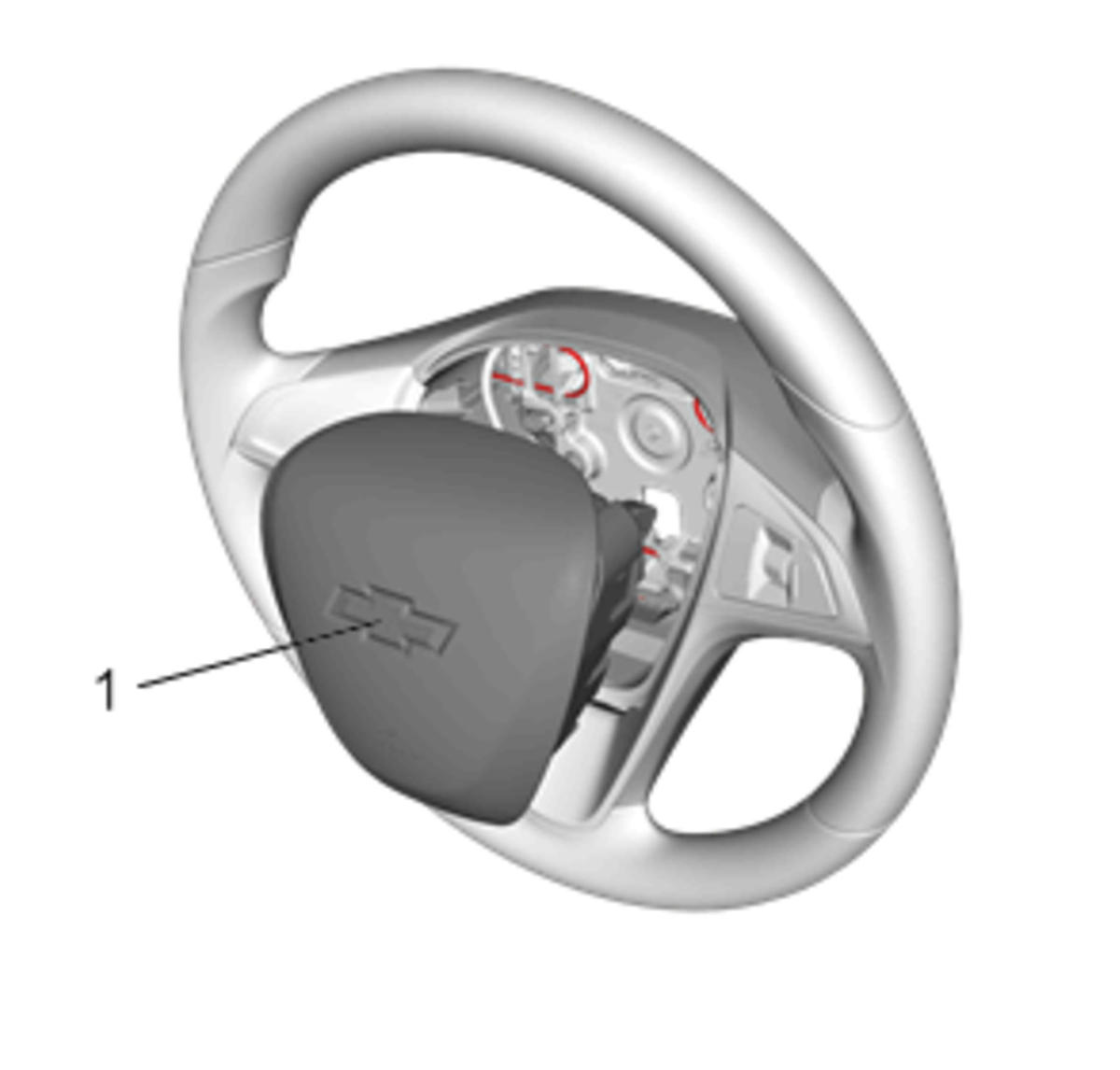

Fig 11: Airbag Steering Wheel Module
Courtesy of GENERAL MOTORS COMPANY
Remove the airbag steering wheel module (1).
