Immobilizer (UTJ)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

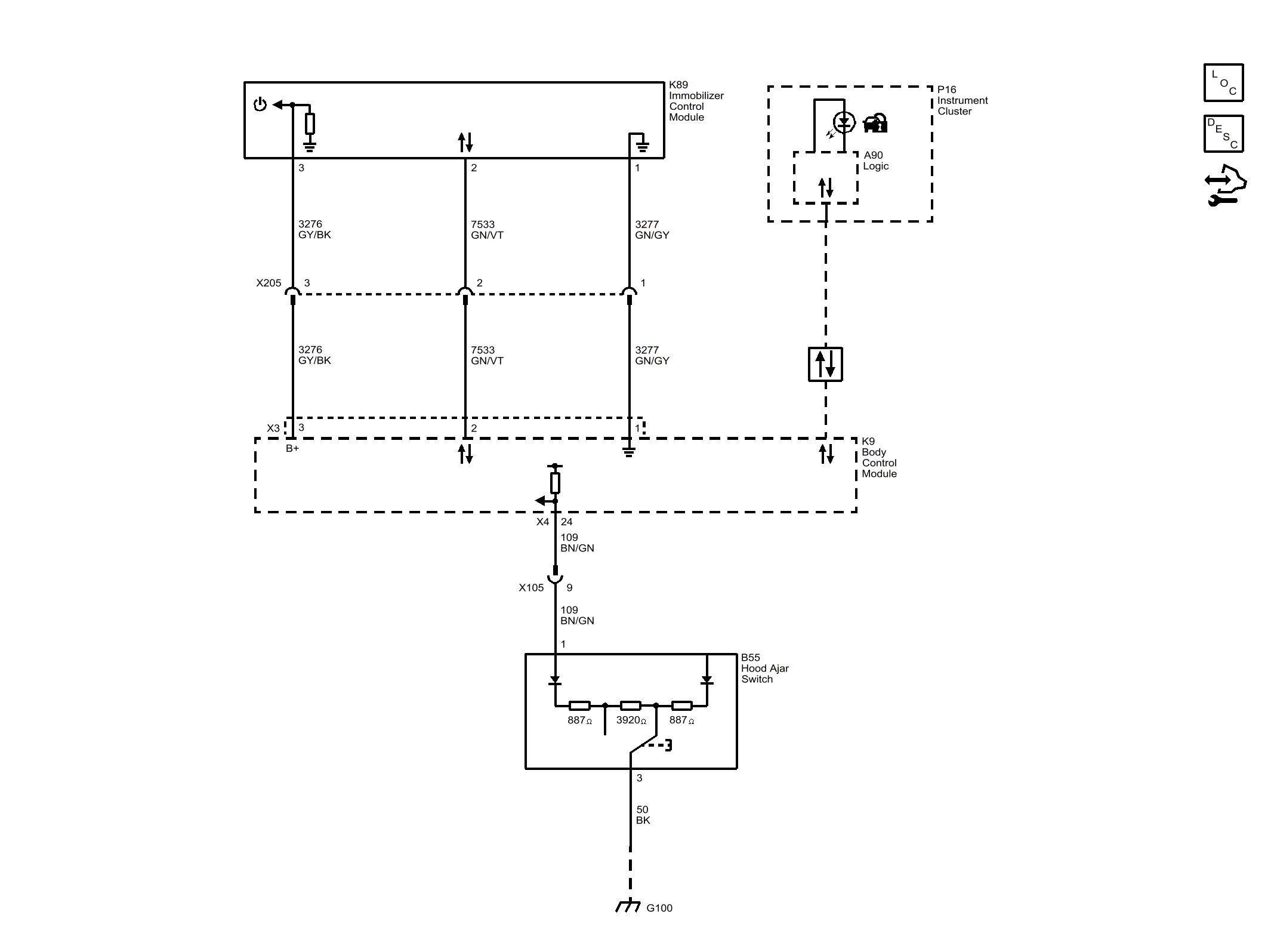

Fig 1: Immobilizer (UTJ)
GM4322628Courtesy of GENERAL MOTORS COMPANY
