Liftgate Weatherstrip Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

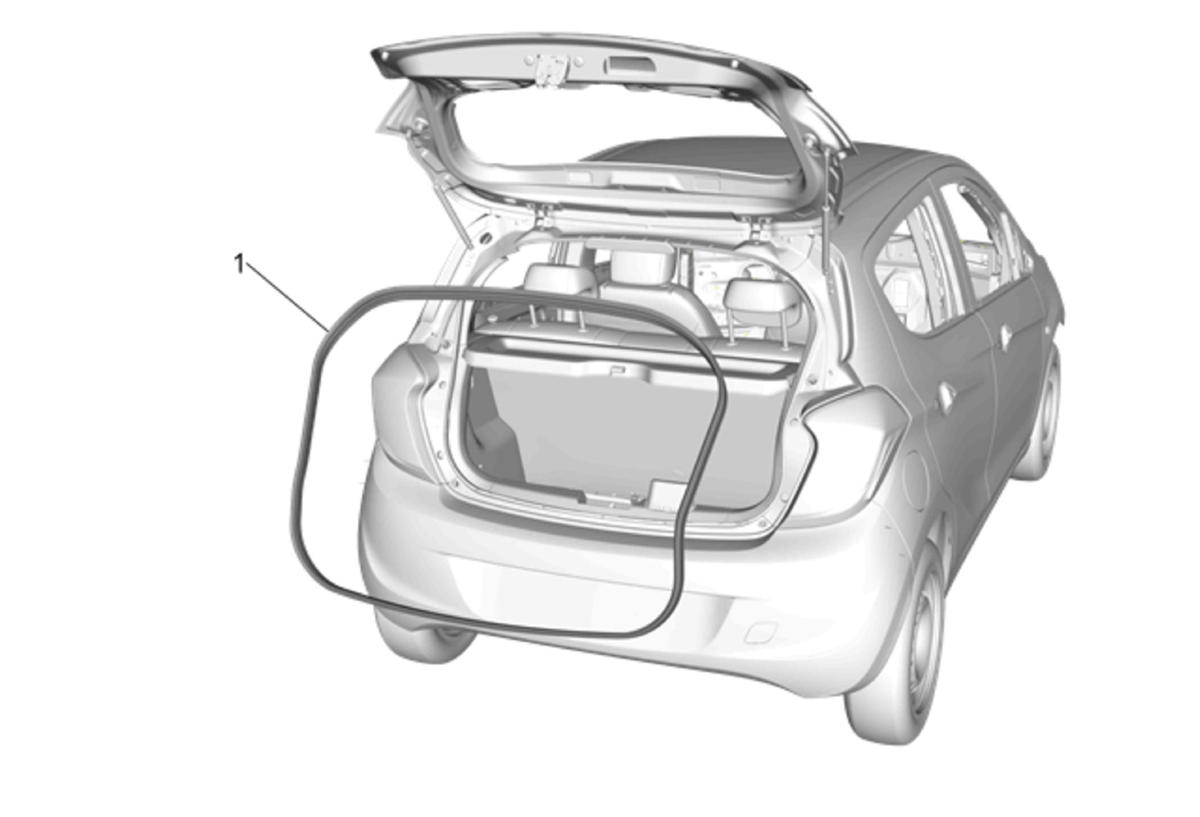

Fig 1: Liftgate Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Liftgate Window Weatherstrip Procedure Start at the upper corner of the liftgate opening and pull the weatherstrip away from the liftgate opening flange. Position the weatherstrip in the upper corner of the liftgate opening. Working downward along the edge, install the weatherstrip on the liftgate opening flange ensuring that the carrier is fully seated in the corners. Using a rubber mallet, ensure that the weatherstrip is seated on the entire liftgate opening flange.

Callout

Component Name

Liftgate Window Weatherstrip

Procedure

Start at the upper corner of the liftgate opening and pull the weatherstrip away from the liftgate opening flange.
Position the weatherstrip in the upper corner of the liftgate opening.
Working downward along the edge, install the weatherstrip on the liftgate opening flange ensuring that the carrier is fully seated in the corners.
Using a rubber mallet, ensure that the weatherstrip is seated on the entire liftgate opening flange.
