Liftgate Upper Weatherstrip Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Open the liftgate. |

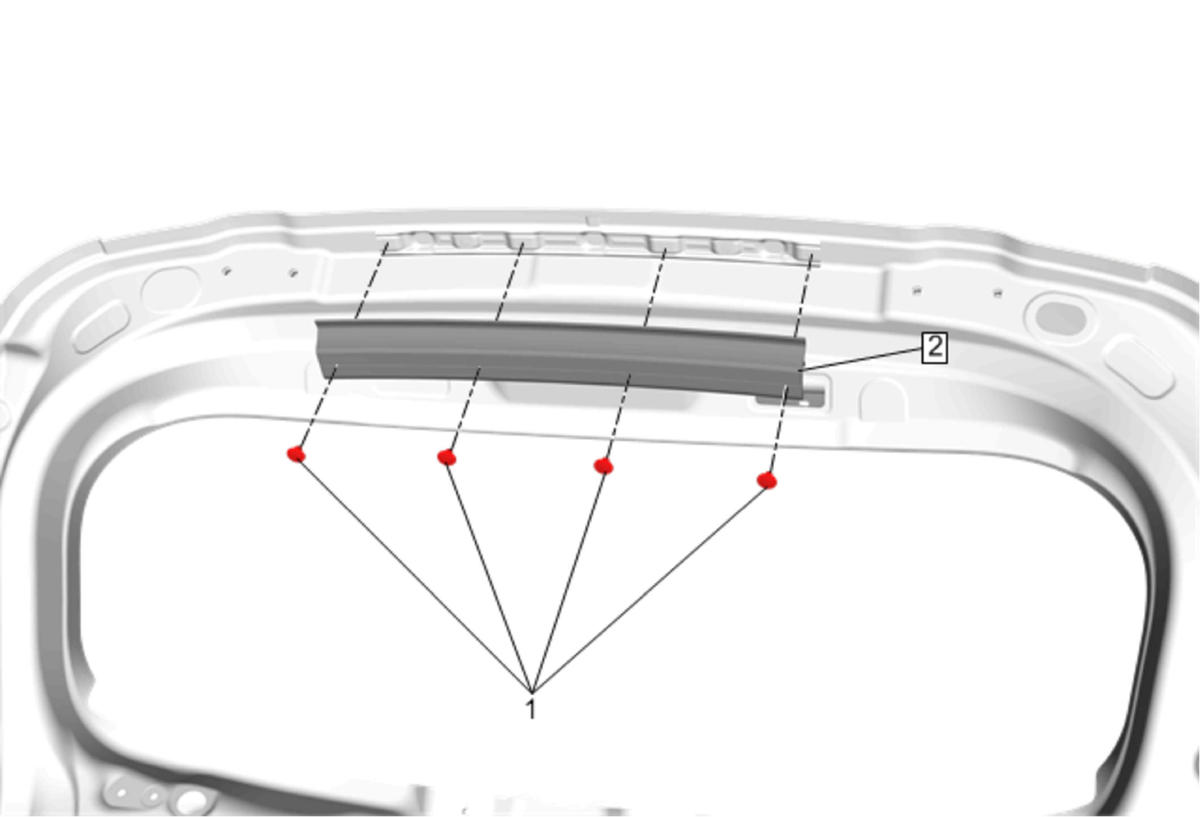

| 1 |
Liftgate Upper Weatherstrip Retainer [4x]
Procedure
Using a suitable flat-bladed tool, remove the liftgate upper weatherstrip retainers. |
| 2 |
Liftgate Upper Weatherstrip |
