Liftgate Hinge Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

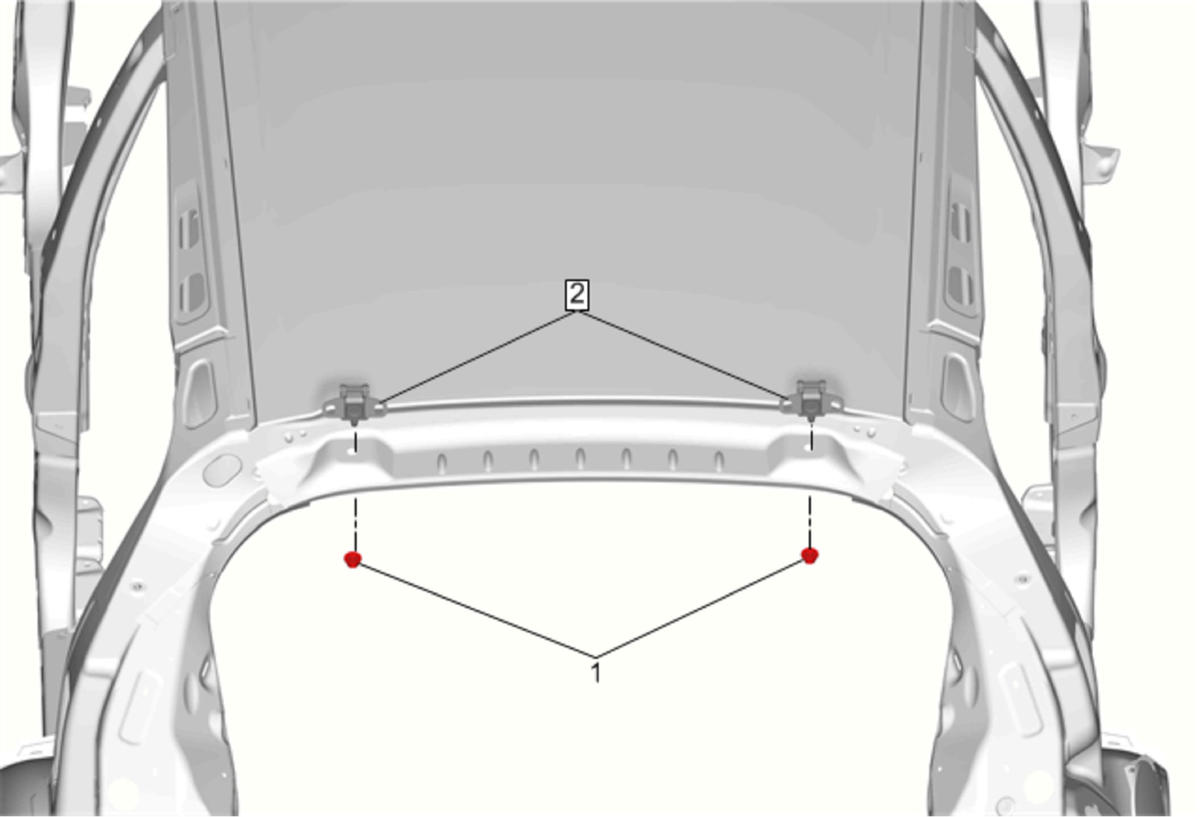

Fig 1: Liftgate Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the liftgate. Refer to Liftgate Replacement . Lower the rear headliner enough to access the liftgate hinge nuts. Refer to Headlining Trim Panel Replacement . Use a grease pencil to mark the liftgate hinge position to the body prior to removal.
1	Liftgate Hinge Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Hinge

Callout

Component Name

Preliminary Procedures

Remove the liftgate. Refer to Liftgate Replacement .
Lower the rear headliner enough to access the liftgate hinge nuts. Refer to Headlining Trim Panel Replacement .
Use a grease pencil to mark the liftgate hinge position to the body prior to removal.

Liftgate Hinge Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Liftgate Hinge
