Fuel Tank Filler Door Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

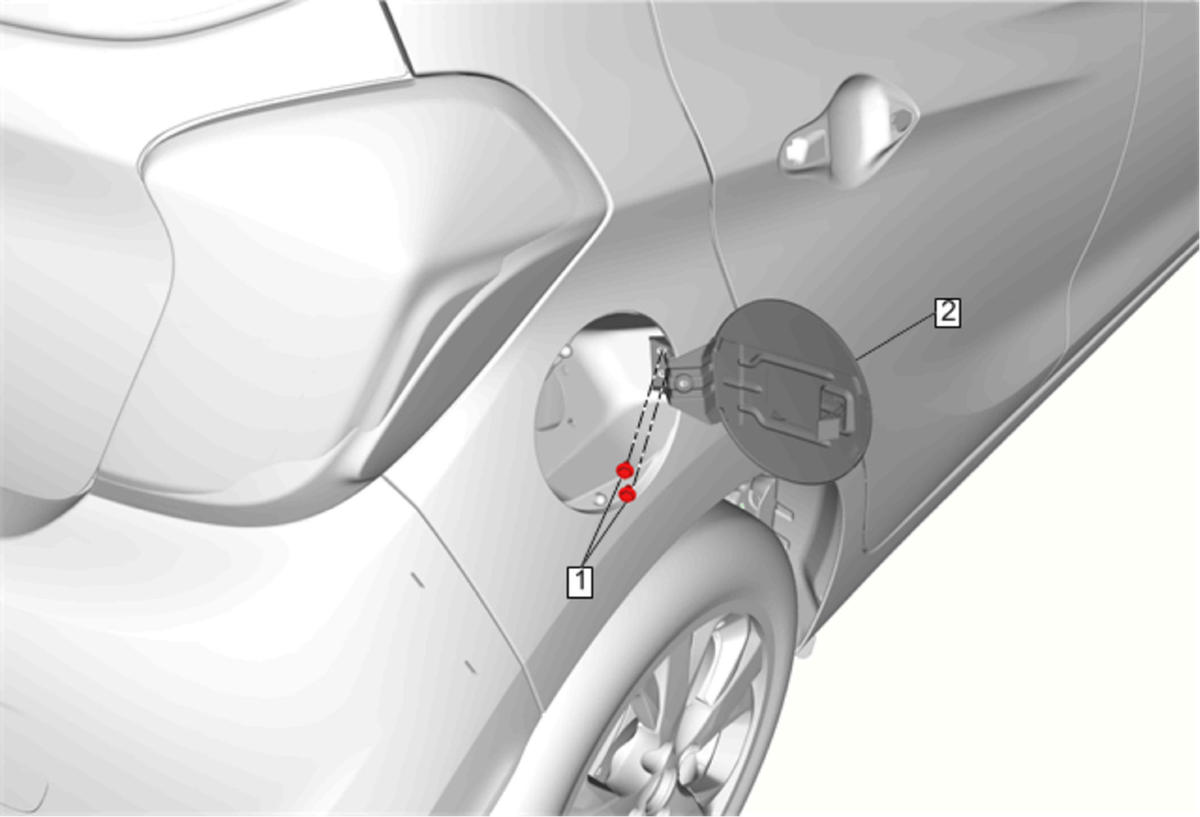

| Callout | Component Name |
|---|---|
| 1 | Fuel Tank Filler Door Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 5.5 N.m (49 lb in) |
| 2 | Fuel Tank Filler Door Procedure Use a grease pencil to mark the fuel tank filler door position to the body prior to removal. |
