Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Vehicle Lifting and Jacking Caution .
  2. Remove the wheel cover, if equipped.
  3. Remove the wheel nut cap, if equipped.
  4. Remove the wheel cap, if equipped.
  5. Mark the wheel in relation to the wheel hub flange.

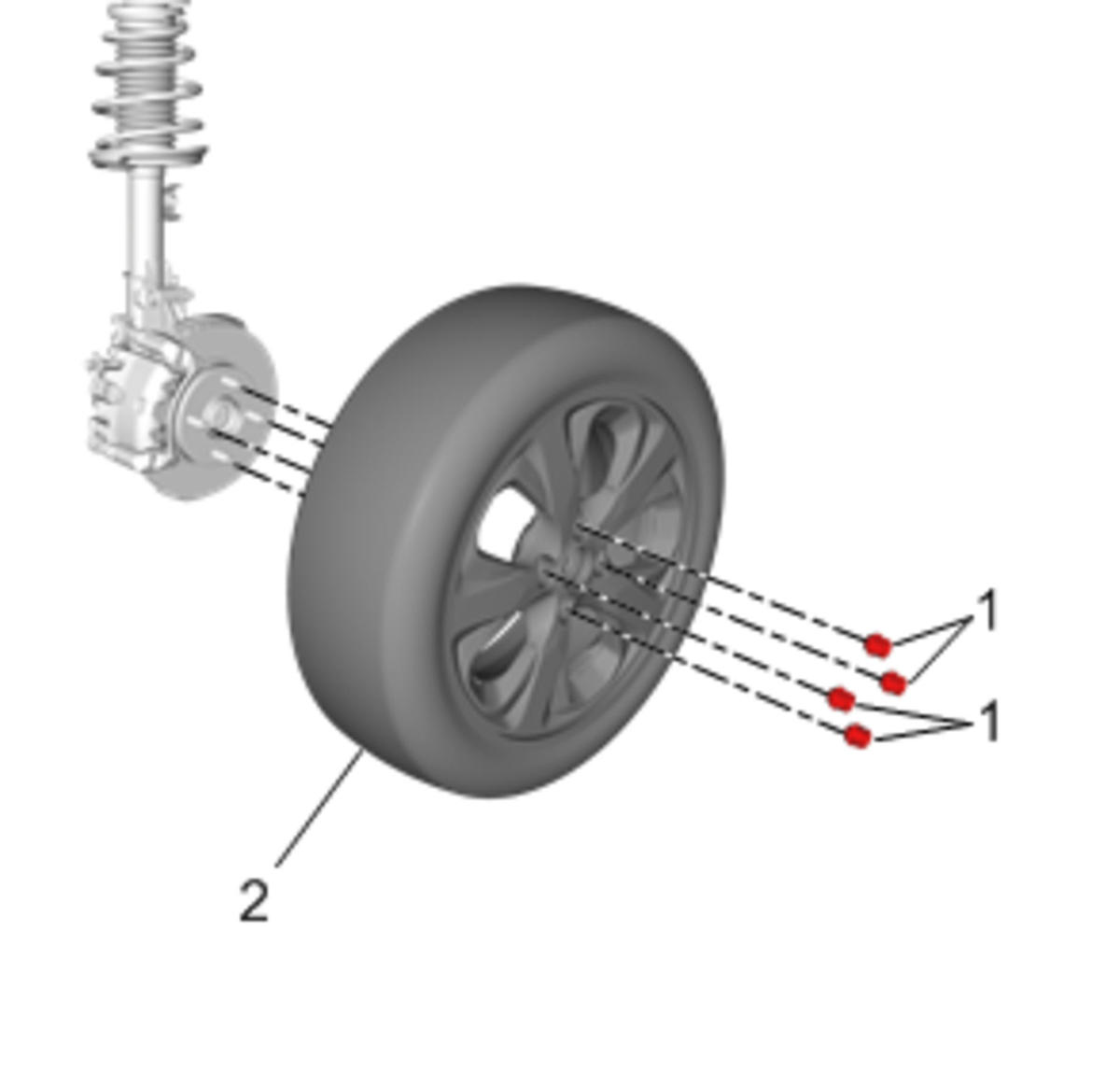

    Fig 1: Wheel Nuts, Tire And Wheel Assembly
    GM4042046Courtesy of GENERAL MOTORS COMPANY
  6. Remove the wheel nuts (1).
  7. Remove the tire and wheel assembly (2) from the vehicle.
    WARNING: If penetrating oil gets on the vertical surfaces between the wheel and the rotor or drum, it could cause the wheel to work loose as the vehicle is driven, resulting in a loss of control and an injury accident.
    CAUTION: Removing the wheel may be difficult because of foreign materials or a tight fit between the wheel and the hub/rotor. Slightly tap the tire side wall with a rubber mallet in order to remove the wheel. Failure to follow these instructions may result in damage to the wheel.
