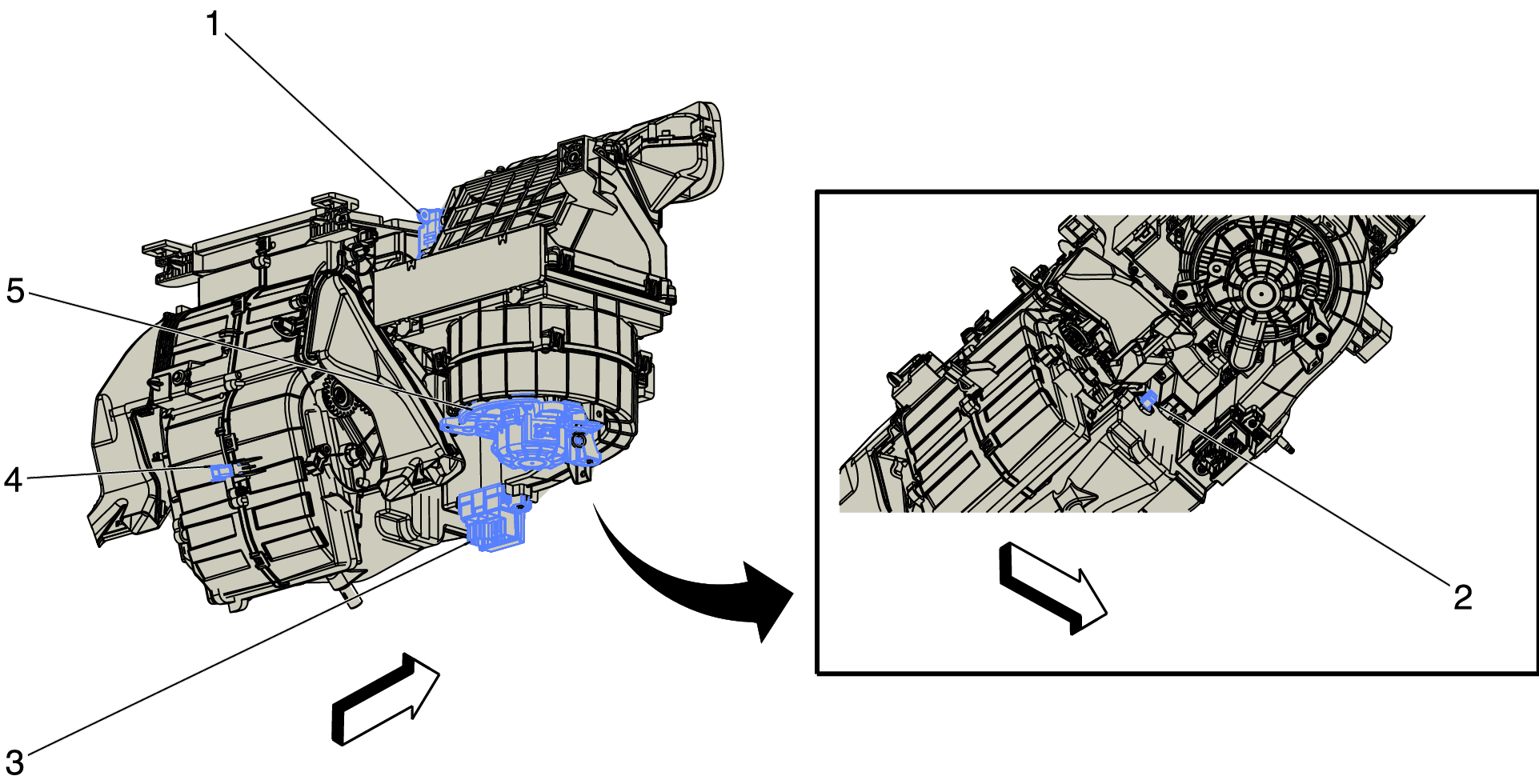

HVAC Components
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. M46 Air Recirculation Door Actuator (C41, C60 or C68) M46 Air Recirculation Door ActuatorM46 Air Recirculation Door Actuator (C68) |
| 2. B39 A/C Evaporator Temperature Sensor (C60 or C68) B39 A/C Evaporator Temperature Sensor C60B39 A/C Evaporator Temperature Sensor (C68) C60 |
| 3. K8 Blower Motor Control Module (C68) K8 Blower Motor Control Module X1 C68K8 Blower Motor Control Module X2 (C68) X2 |
| 4. B7D Air Temperature Sensor - Duct Left Lower (C68) B7D Air Temperature Sensor - Duct Left Lower (C68) |
| 5. M8 Blower Motor (C41, C60 or C68) M8 Blower MotorM8 Blower Motor (C68) |
