G104 and G105 (LHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

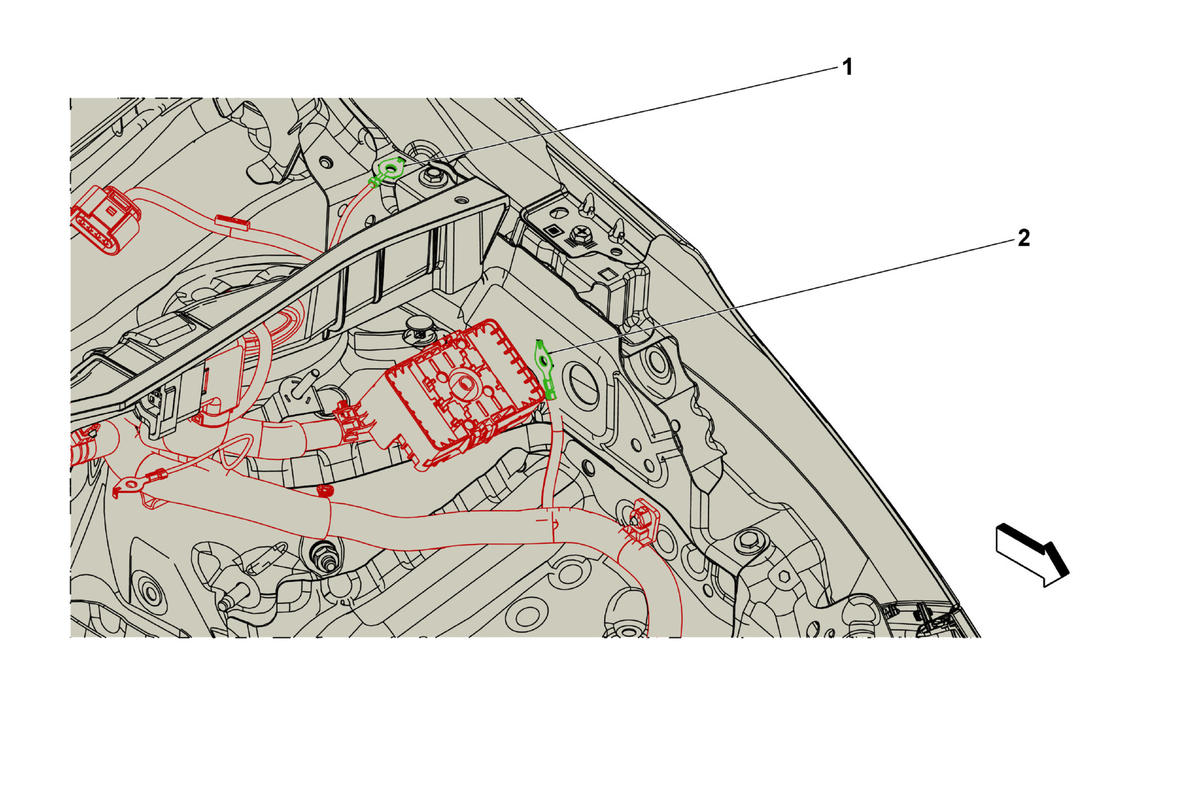

Fig 1: G104 and G105 (LHD)
GM4039655Courtesy of GENERAL MOTORS COMPANY
Items
1. G105
2. G104
