Front of the Vehicle Components (1 of 2)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

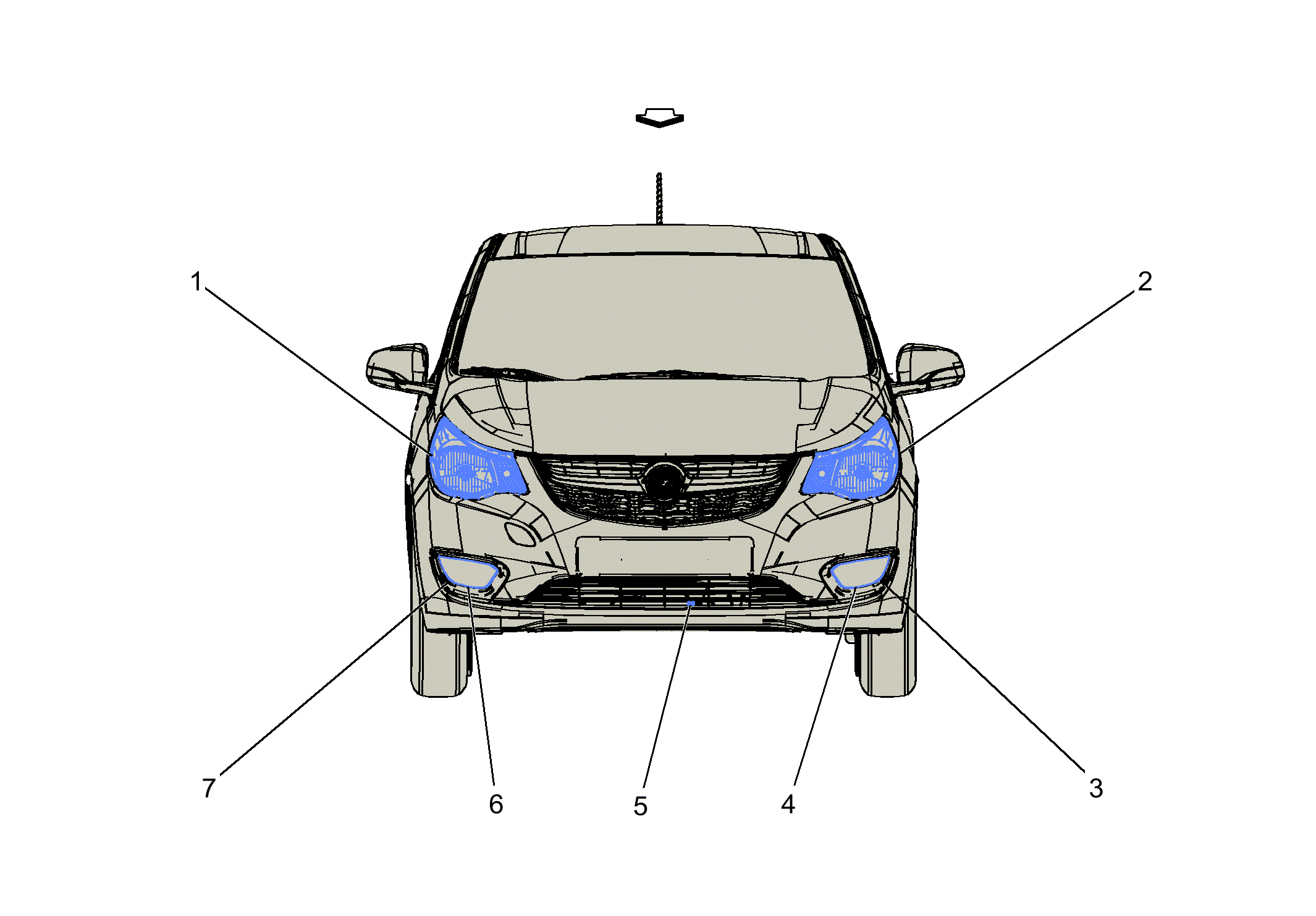

Fig 1: Front of the Vehicle Components (1 of 2)
GM4040482Courtesy of GENERAL MOTORS COMPANY
Items
1. E13R Headlamp - Right E13R Headlamp - Right MAH or MBCE13R Headlamp - Right -MAH or -MBC
2. E13L Headlamp - Left E13L Headlamp - Left MAH or MBCE13L Headlamp - Left -MAH or -MBC
3. E29LF Fog Lamp - Left Front (T87) E29LF Fog Lamp - Left Front T3U-T87
4. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
5. E29RF Fog Lamp - Right Front (T87) E29RF Fog Lamp - Right Front T3U-T87
