Body Harness Routing - Right Side of the Passenger Compartment (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

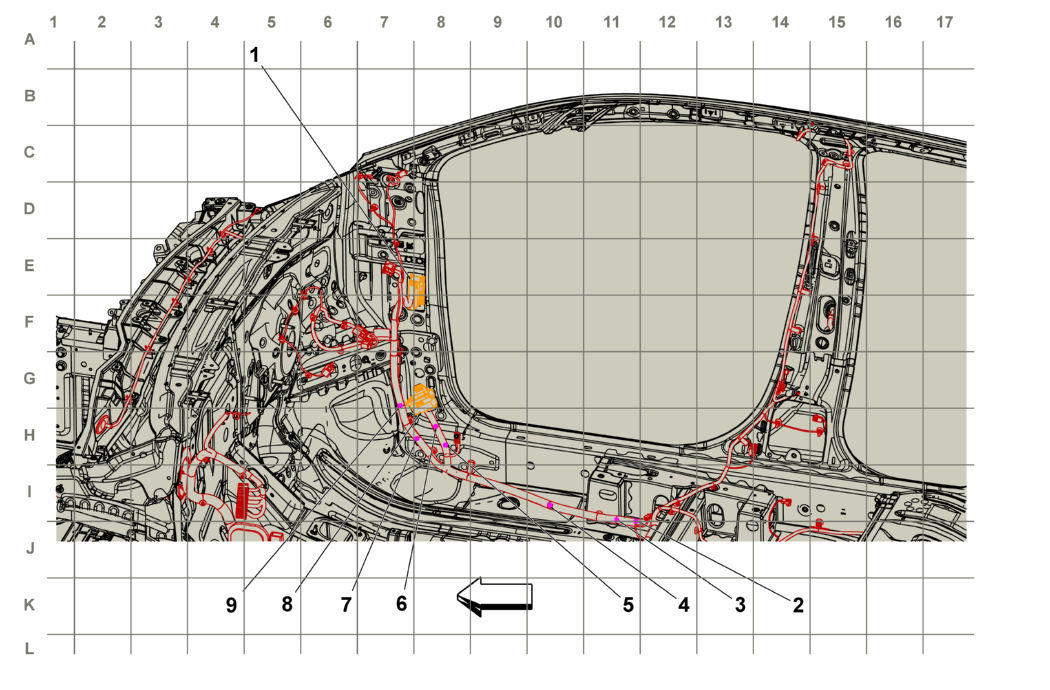

Fig 1: Body Harness Routing - Right Side of the Passenger Compartment (RHD)
GM4041184Courtesy of GENERAL MOTORS COMPANY
Items
1. X500 X500 Body Harness to Driver Door Harness
2. J326
3. J320
4. J319
5. J317
6. J316
7. J329
8. X200 X200 Instrument Panel Harness to Body Harness
9. J330
