Body Harness Routing - Right Side of the Passenger Compartment (LHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

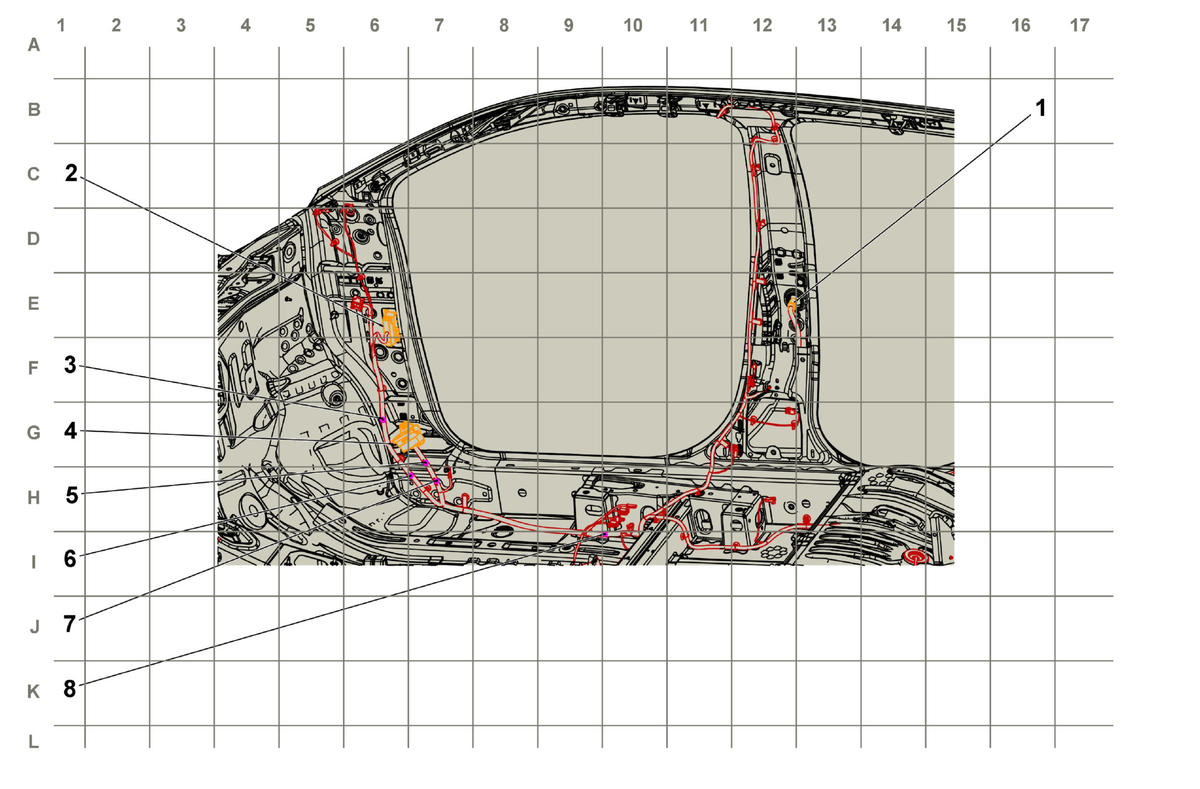

Fig 1: Body Harness Routing - Right Side of the Passenger Compartment (LHD)
GM4041182Courtesy of GENERAL MOTORS COMPANY
Items
1. X800 X800 Right Rear Door Harness to Body Harness
2. X600 X600 Body Harness to Passenger Door Harness
3. J330
4. X201 X201 Instrument Panel Harness to Body Harness
5. J327
6. J329
7. J328
8. J326
