Body Harness Routing - Left Side of the Passenger Compartment (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

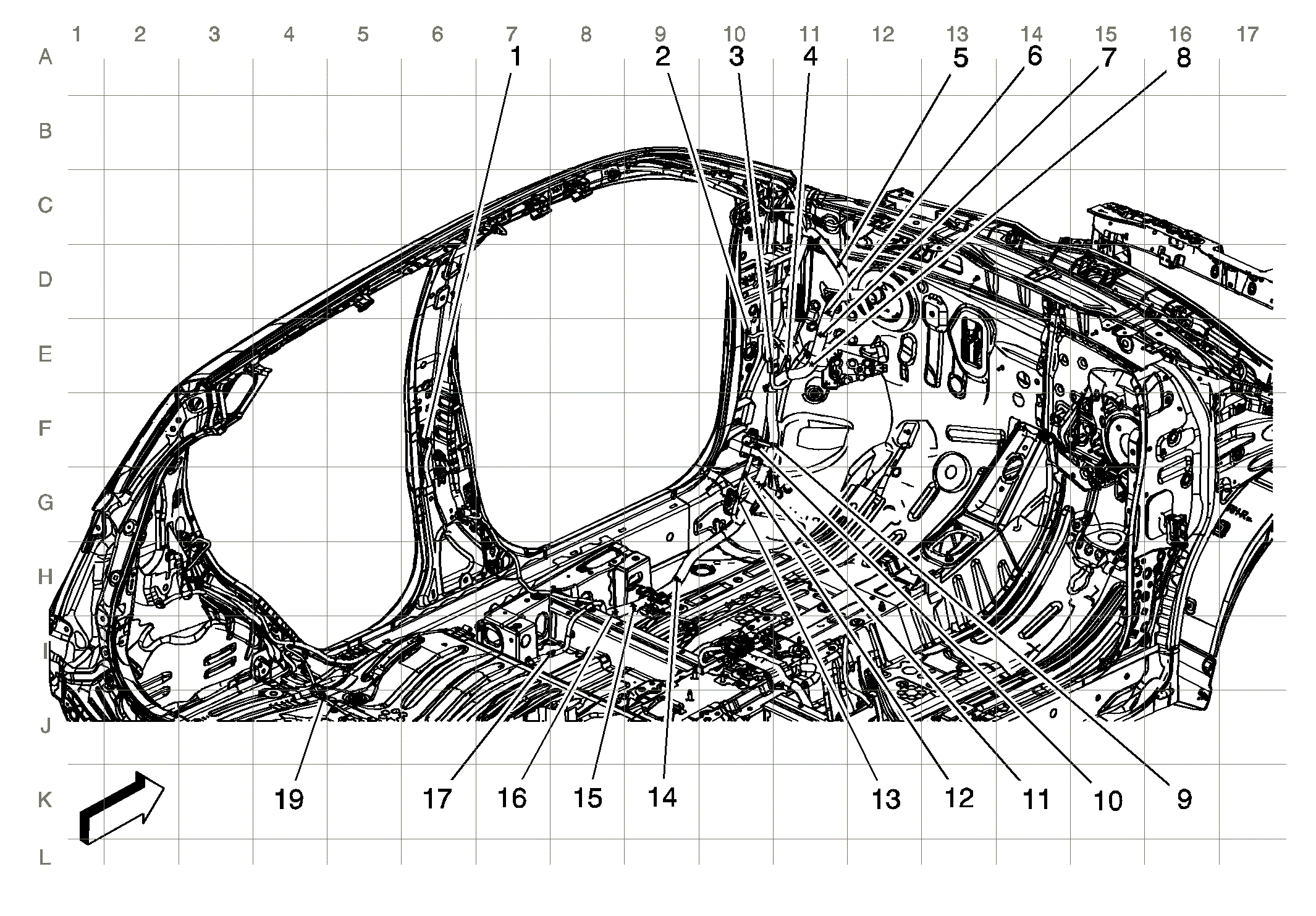

Fig 1: Body Harness Routing - Left Side of the Passenger Compartment (RHD)
GM4041169Courtesy of GENERAL MOTORS COMPANY
Items
1. X700 X700 Left Rear Door Harness to Body Harness
2. X600 X600 Body Harness to Passenger Door Harness
3. X202 X202 Body Harness to Instrument Panel Harness
4. J213
5. J306
6. J303
7. J311
8. J313
9. J314
10. X201 X201 Instrument Panel Harness to Body Harness
11. J302
12. J327
13. J328
14. J321
15. J322
16. J318
17. J322
19. J333
