Body Harness Routing - Left Side of the Passenger Compartment (LHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

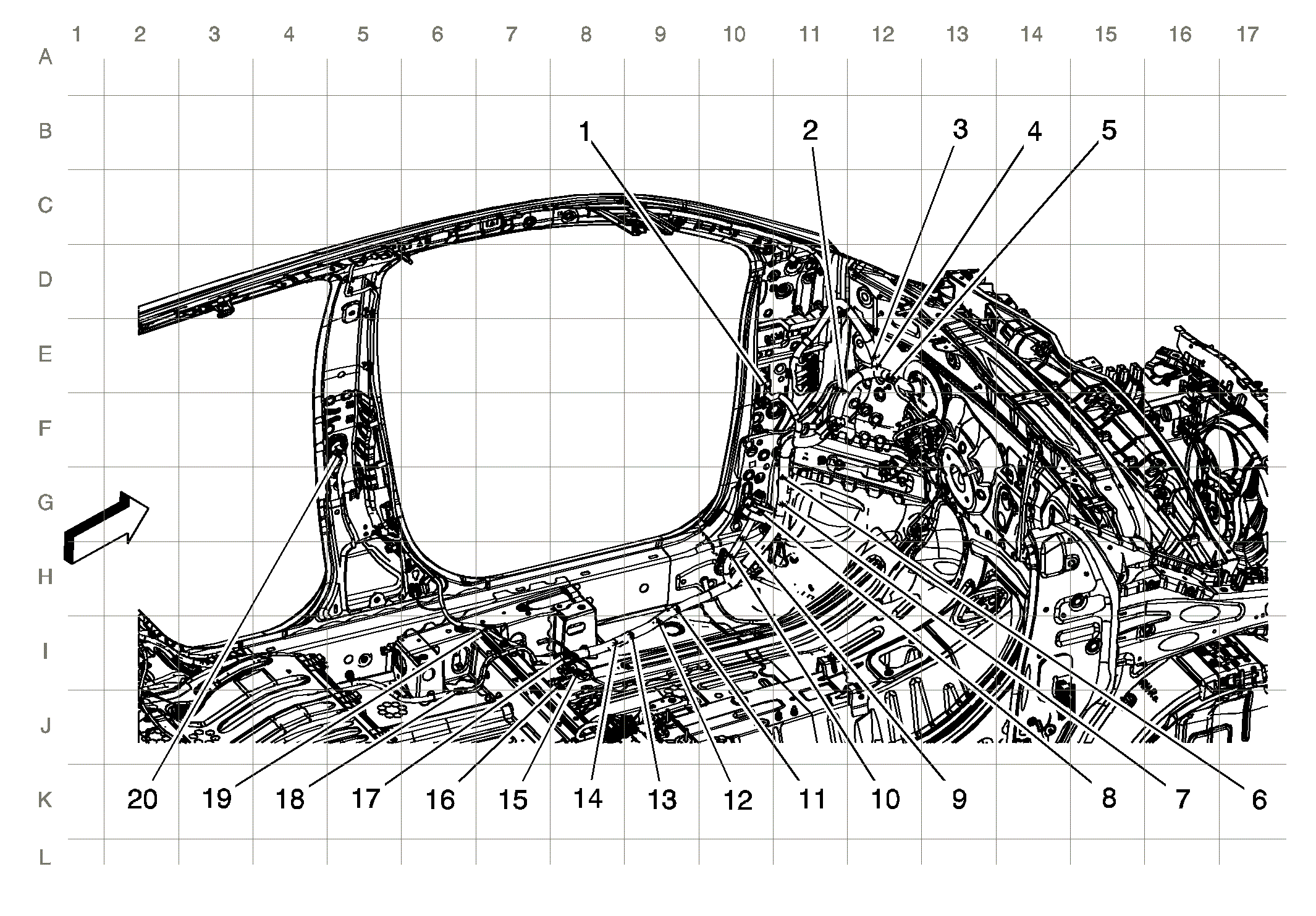

Fig 1: Body Harness Routing - Left Side of the Passenger Compartment (LHD)
GM4041167Courtesy of GENERAL MOTORS COMPANY
Items
1. X500 X500 Body Harness to Driver Door Harness
2. J311
3. J306
4. J303
5. J302
6. J313
7. J314
8. X200 X200 Instrument Panel Harness to Body Harness
9. J316
10. J317
11. J318
12. J319
13. J320
14. J321
15. J324
16. J323
17. J322
18. J331
19. J332
20. X700 X700 Left Rear Door Harness to Body Harness
