Ignition Coil Replacement

Courtesy of GENERAL MOTORS COMPANY

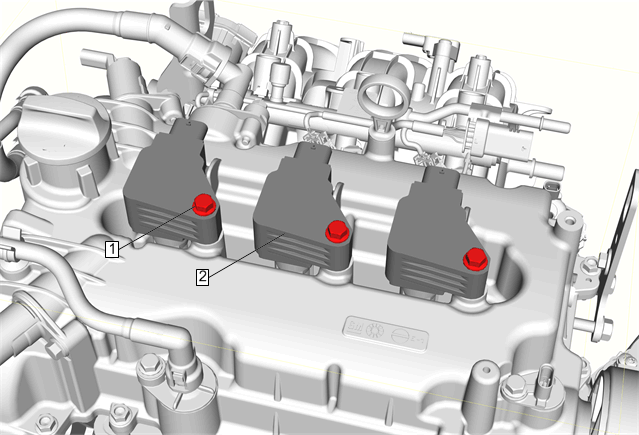

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the 3 ignition coil connectors.
1	Ignition Coil Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the ignition coil bolts (1). Tighten 10 N.m (89 lb in)
2	Ignition Coil (Qty: 3) Procedure Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the 3 ignition coil connectors.

Ignition Coil Cover Bolt (Qty: 3)

CAUTION:

Procedure
Remove the ignition coil bolts (1).
Tighten
10 N.m (89 lb in)

Ignition Coil (Qty: 3)
Procedure
Transfer parts as necessary.
