Special Tools (Service Repair Tools)

Illustration	Tool Number/Description
Courtesy of GENERAL MOTORS COMPANY	CH-41769 Fuel Line Quick Disconnect Tool
Courtesy of GENERAL MOTORS COMPANY	EN-45059 J-45059 Angle Meter
Courtesy of GENERAL MOTORS COMPANY	EN-48259 J-39194-C J-38756 J-44626 J-46577 Heated Oxygen Sensor Remover/Installer
Courtesy of GENERAL MOTORS COMPANY	EN-50167 Fuel Pump Lock Ring Remover/Installer
Courtesy of GENERAL MOTORS COMPANY	EN-50207 Oil Pressure Switch Remover/Installer
Courtesy of GENERAL MOTORS COMPANY	EN-51632 Camshaft Locking Tool
Courtesy of GENERAL MOTORS COMPANY	EN-51691 Timing Chain Retainer
Courtesy of GENERAL MOTORS COMPANY	J-45747 (35L Tank) Fuel Pump Lock Ring Remover/Installer

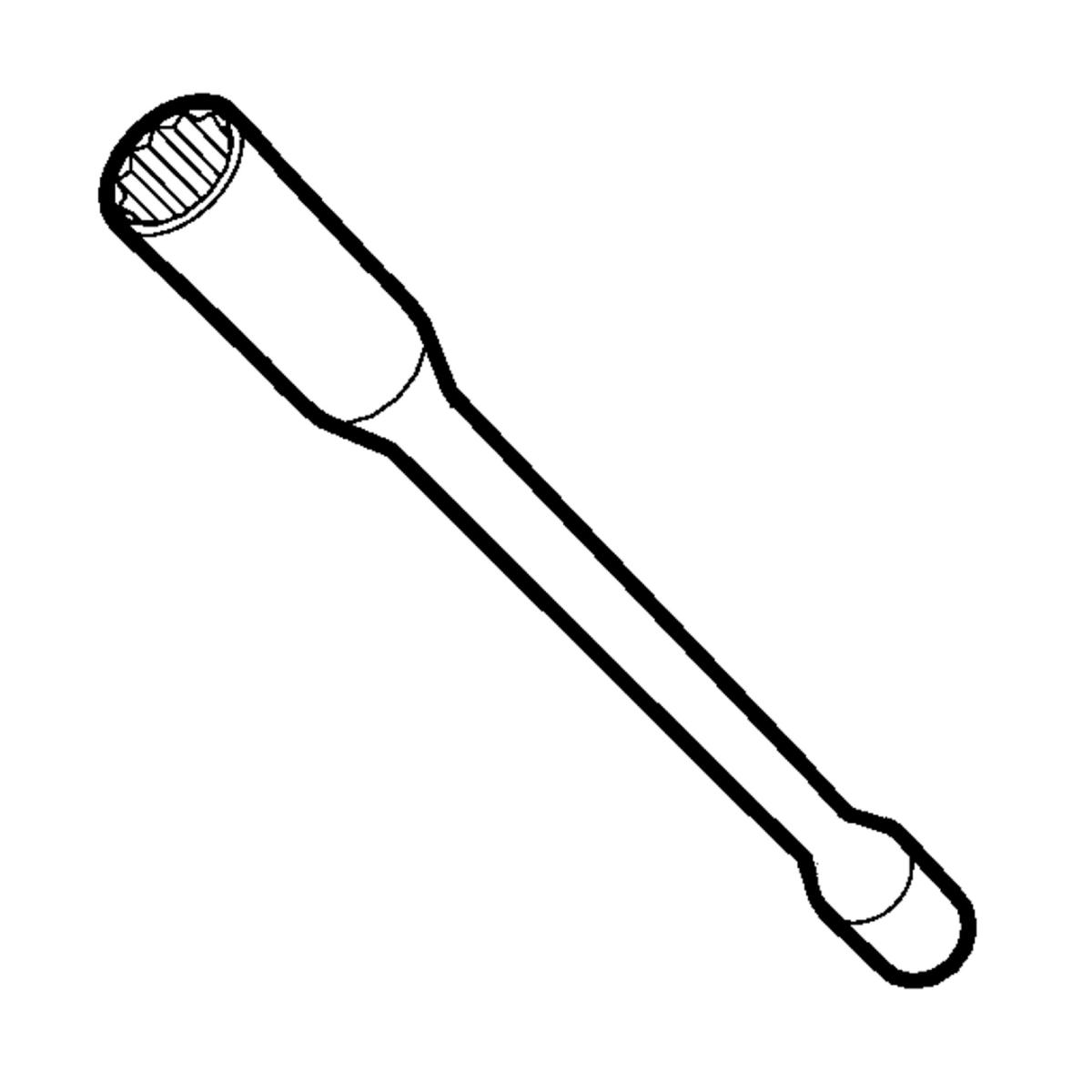

Courtesy of GENERAL MOTORS COMPANY	EN-51149 Spark Plug Wrench
Courtesy of GENERAL MOTORS COMPANY	EN-50956 Tamper Proof Drive Bit
