Exhaust Muffler Replacement (LV7)

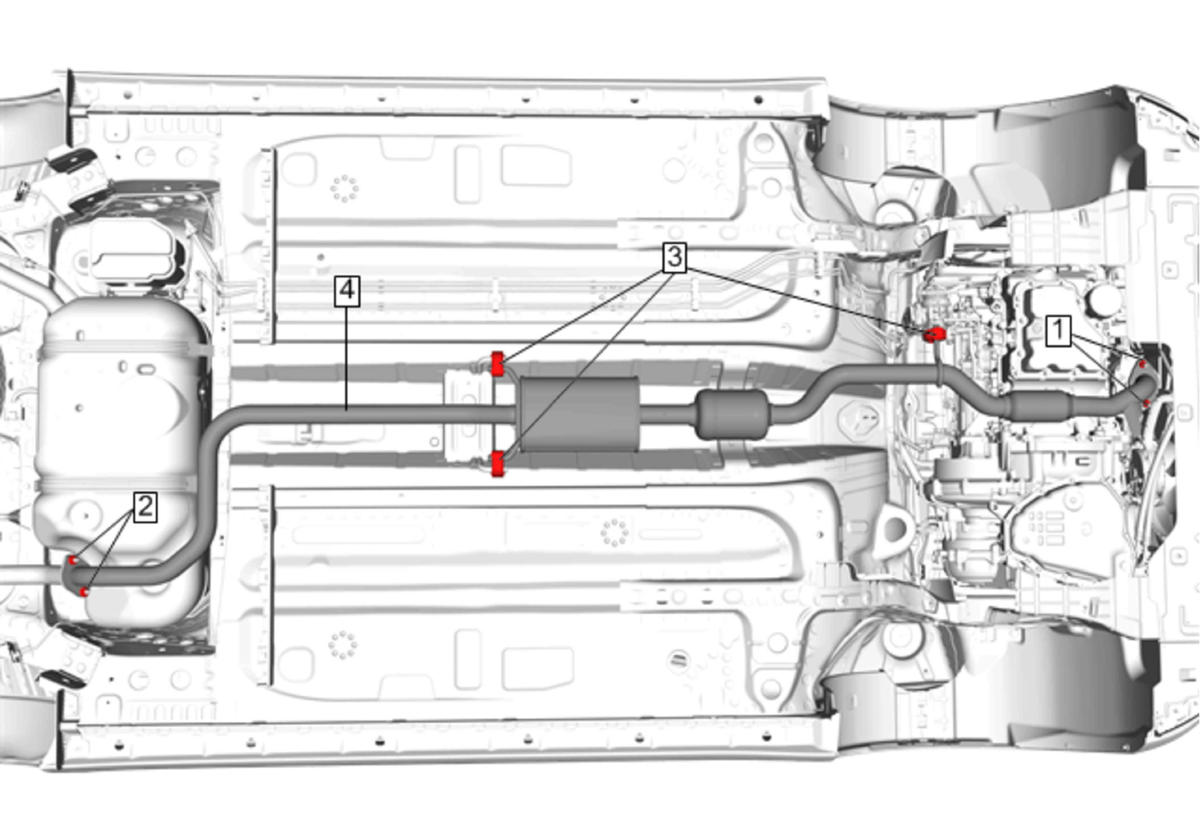

GM4183644Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the heated oxygen sensor 2. Refer to Heated Oxygen Sensor Replacement - Sensor 2 (LV7) .
1 Exhaust Muffler to Catalytic Converter Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Exhaust Rear Muffler to Exhaust Muffler Nut (Qty: 2)
Tighten
42 N.m (32 lb ft)
3 Exhaust Muffler Hanger (Qty: 3)
4 Exhaust Muffler
