X700 Body Harness to Left Rear Door Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

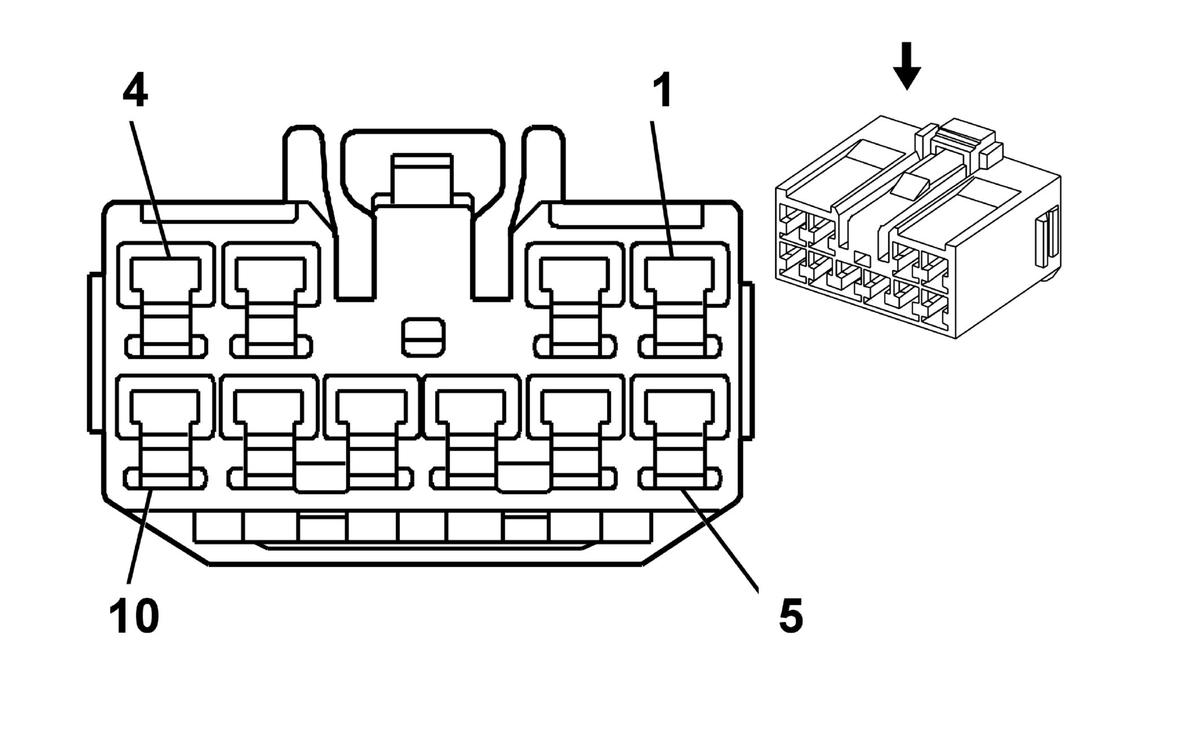

Connector Part Information
- Harness Type: Body
- OEM Connector: MG651056
- Service Connector: 88952443
- Description: 10-Way F 090 II Series (NA)
|
Connector Part Information
- Harness Type: Left Rear Door
- OEM Connector: MG622072
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way M 090 II Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13580050 |
J-35616-18 (BK) |
J-38125-553 |
7116-4020 |
Yazaki 11 |
E |
C |
| II |
13580050 |
J-35616-18 (BK) |
J-38125-553 |
7116-4021 |
Yazaki 11 |
E |
A |
| III |
13580051 |
J-35616-18 (BK) |
J-38125-553 |
7116-4021 |
Yazaki 11 |
2 |
A |
| IV |
Not Required |
J-35616-19 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
GN/BK |
116 |
II |
- |
Left Rear Speaker Signal (-) |
1 |
0.75 |
GN/BK |
116 |
IV |
UQ3 |
| 2 |
0.75 |
GN |
199 |
II |
- |
Left Rear Speaker Control (+) |
2 |
0.75 |
GN |
199 |
IV |
UQ3 |
| 3 |
- |
- |
- |
- |
- |
Not Occupied |
3 |
- |
- |
- |
- |
- |
| 4 |
0.5 |
GY |
295 |
I |
AU3 |
Door Lock Actuator Lock Control |
4 |
0.5 |
GY |
295 |
IV |
AU3 |
| 5 |
0.5 |
BN/YE |
294 |
I |
AU3 |
Door Lock Actuator Unlock Control |
5 |
0.5 |
BN/YE |
294 |
IV |
AU3 |
| 6 - 7 |
- |
- |
- |
- |
- |
Not Occupied |
6 - 7 |
- |
- |
- |
- |
- |
| 8 |
1.5 |
GN/GY |
1185 |
III |
- |
Power Window Switch Left Rear Up Signal |
8 |
1.5 |
GN/GY |
1185 |
IV |
A33 |
| 9 |
1.5 |
BU/WH |
1307 |
III |
A33 |
Power Window Master Switch Lockout Signal |
9 |
1.5 |
BU/WH |
1307 |
IV |
A33 |
| 10 |
1.5 |
BN/BU |
1187 |
III |
- |
Power Window Switch Left Rear Down Signal |
10 |
1.5 |
BN/BU |
1187 |
IV |
A33 |
