Oil Pump Flow Control Solenoid Valve Replacement (L5Q)

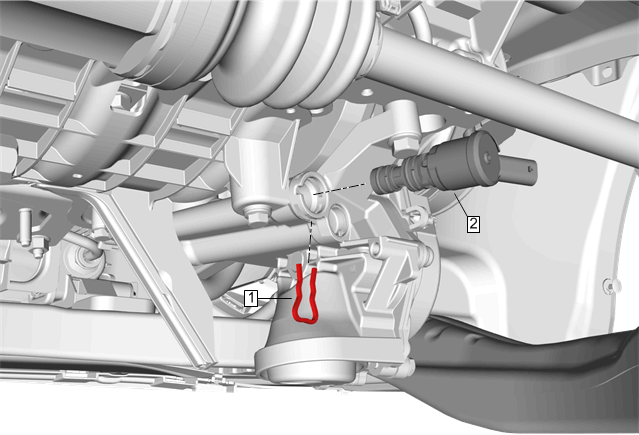

GM4499162Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the oil pan. Refer to Oil Pan Replacement (L5Q) .
  2. Disconnect the oil pump flow control solenoid valve connector.
1 Oil Pump Flow Control Solenoid Valve Retainer
Procedure
Remove the oil pump flow control solenoid valve retainer.
2 Oil Pump Flow Control Solenoid Valve
