Installation Procedure

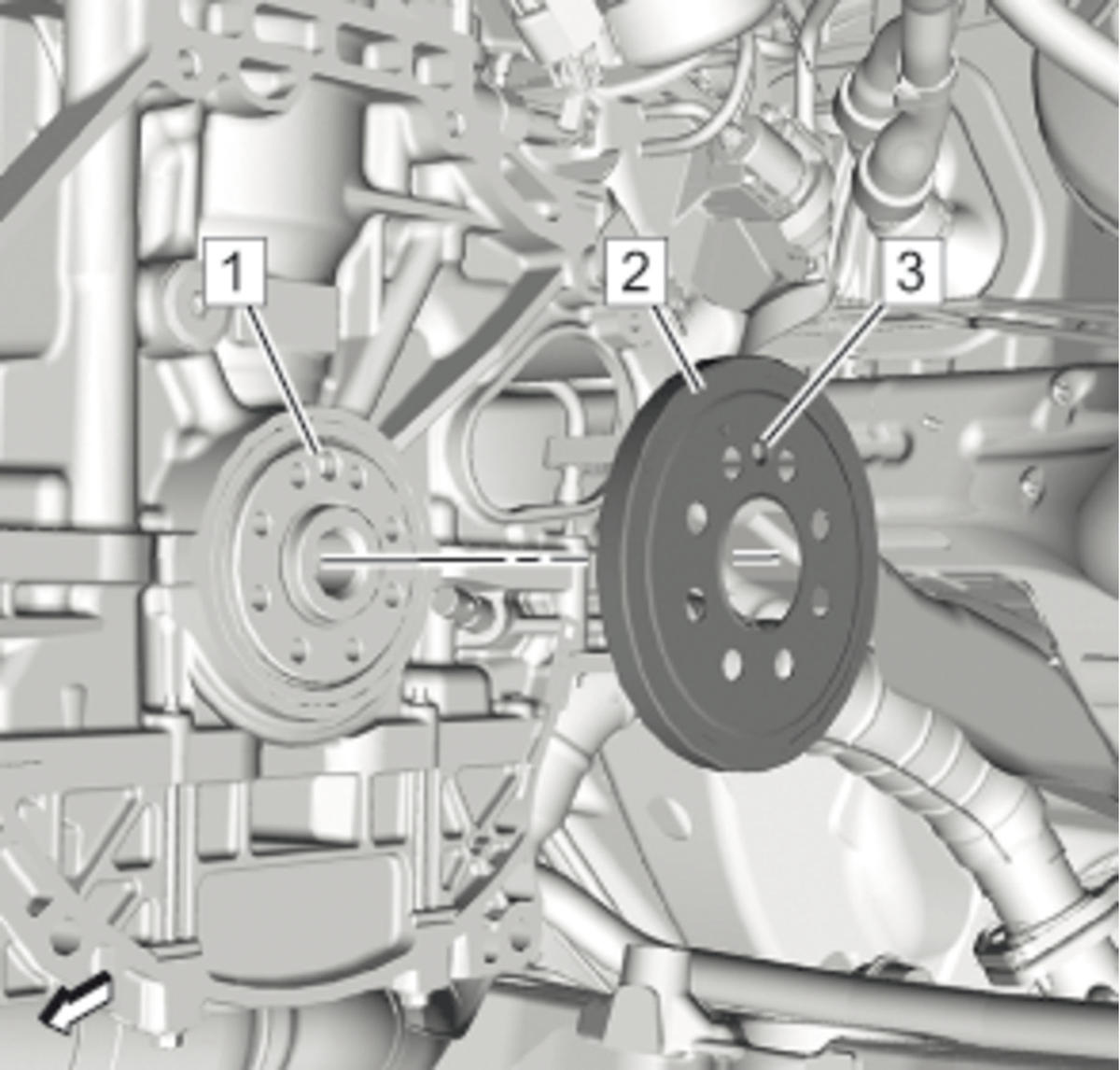

  1. GM3763326Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Crankshaft Position Sensor Reluctor Ring Caution .

    Install the crankshaft position sensor reluctor ring (2).

  2. Install the pin (3) into the correct hole (1).
  3. Install the engine flywheel. Refer to Engine Flywheel Replacement .
