Floor Rear Air Outlet Duct Adapter Replacement (Right Side)

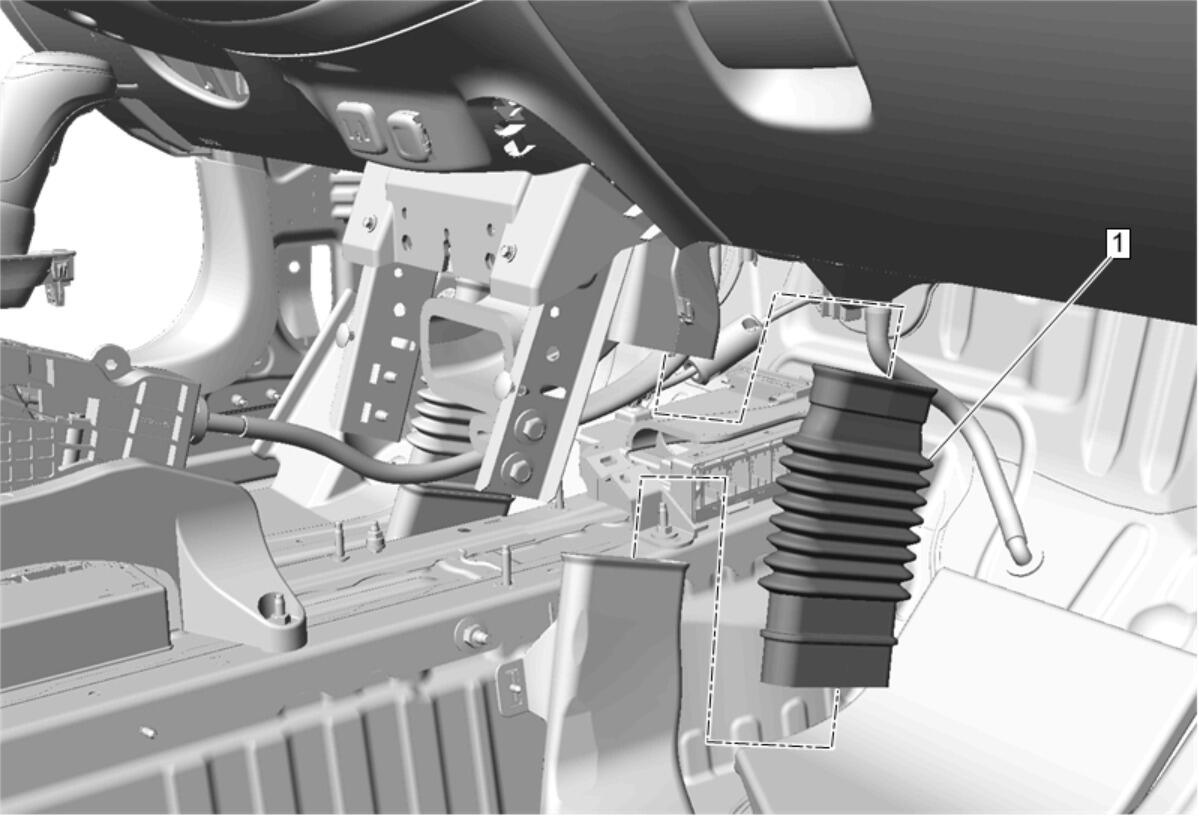

GM4217857Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Floor Rear Air Outlet Duct Adapter - Right Side
Procedure
Pull the right front carpet back to access the floor rear air outlet duct adapter.
NOTE:

The front floor console is removed for clarity.
