Transmission Control Module Replacement
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

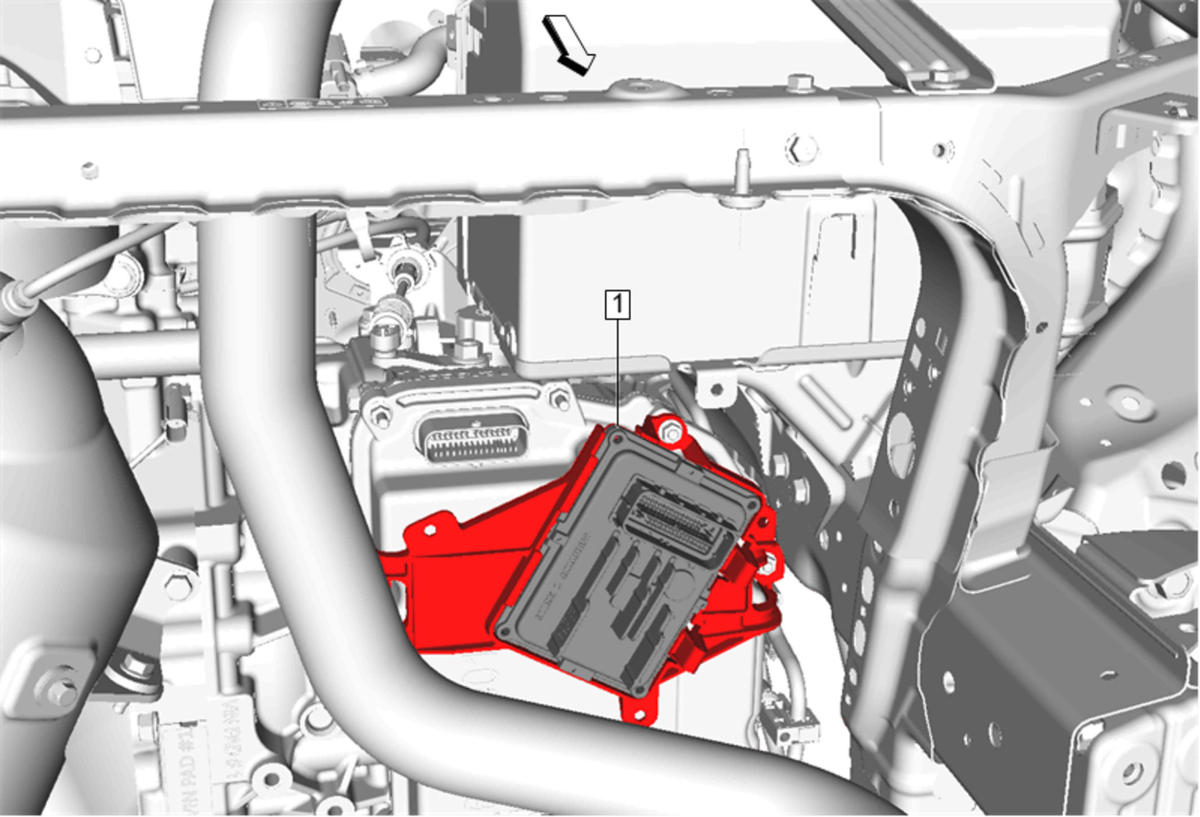

| Callout |
Component Name |
| 1 |
Transmission Control Module Procedure
NOTE:
Radiator assembly removed for clarity.
- Disconnect the electrical connector.
- Remove the module from the module bracket by releasing the retaining tabs.
- Program the transmission control module, if replaced. Control Module References
- Reprogram the transmission. Solenoid Valve Characterization Reprogramming
|
