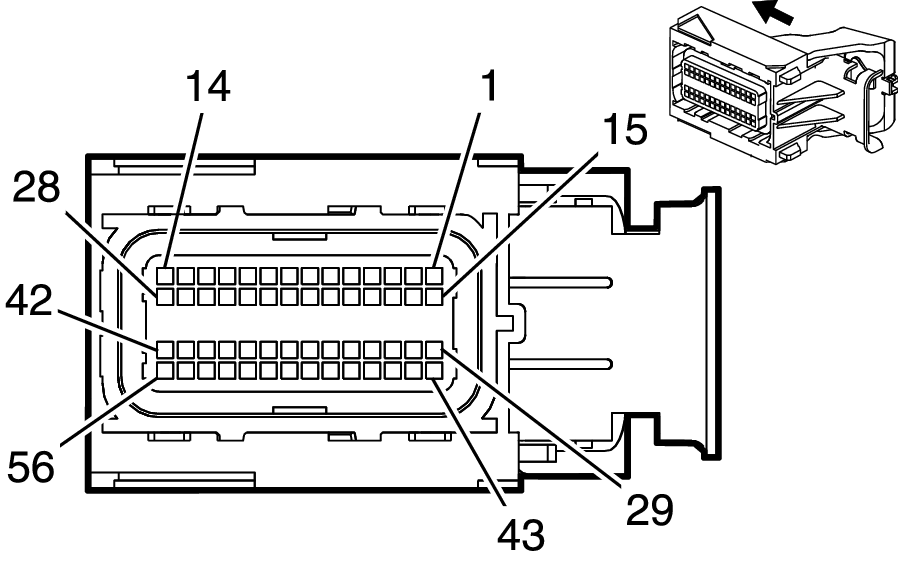

T6 Power Inverter Module X1 (HP4)

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Harness Type: Engine
OEM Connector: 13946578
Service Connector: 19352787
Description: 56-Way F MX123 34576 Series (BK with GY Terminal Position Assurance)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575812	J-35616-64B (LT BU)	J-38125-213	33467-0005	Delphi 23	J	J

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	BK/WH	151	Signal Ground	I	-
2	0.75	RD/GN	1840	Battery Positive Voltage	I	-
3	0.5	VT/BK	2139	Run/Crank Ignition 1 Voltage	I	-
4	0.5	BU/WH	3977	Accessory Wakeup Serial Data 2	I	-
5	-	-	-	Not Occupied	-	-
6	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
7	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
8	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
9	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
10 - 19	-	-	-	Not Occupied	-	-
20	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
21	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
22 - 28	-	-	-	Not Occupied	-	-
29	0.5	VT/BU	6091	Crankshaft Position Sensor Replicated Signal	I	-
30	-	-	-	Not Occupied	-	-
31	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
32	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
33	0.5	BU/BK	7493	High Speed GMLAN Serial Data (+)3	I	-
34	0.5	WH	7494	High Speed GMLAN Serial Data (-)3	I	-
35 - 44	-	-	-	Not Occupied	-	-
45	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
46	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
47	0.5	BU/BK	7493	High Speed GMLAN Serial Data (+)3	I	-
48	0.5	WH	7494	High Speed GMLAN Serial Data (-)3	I	-
49	-	-	-	Not Occupied	-	-
50	0.75	RD/WH	2040	Battery Positive Voltage	I	-
51	0.75	BK/WH	151	Signal Ground	I	-
52 - 56	-	-	-	Not Occupied	-	-
