Q23 Line Pressure Control Solenoid Valve (HP4)
 Courtesy of GENERAL MOTORS COMPANY
|

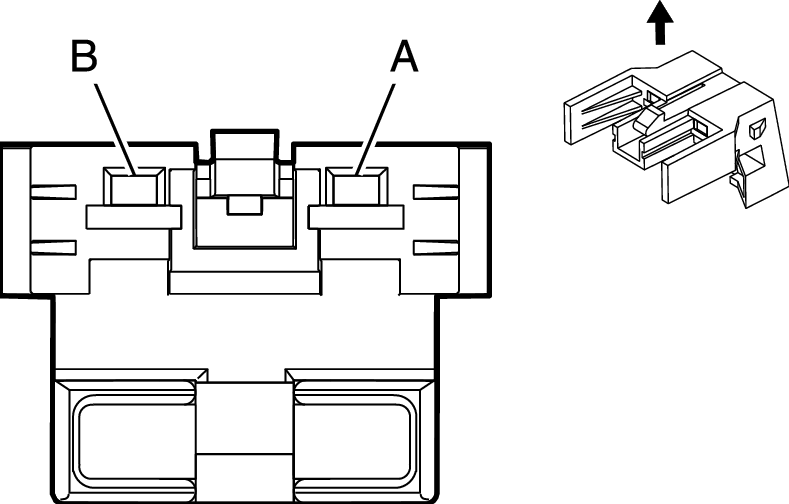

Connector Part Information
- Harness Type: Drive Motor 1
- OEM Connector: 15544185
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 345 GT Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-41 (BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.8 |
BK |
6387 |
Transmission High Side Driver 1 Signal Driver |
I |
- |
| B |
0.5 |
YE |
6400 |
Clutch A Control |
I |
- |
