Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams
>>
Wiring Schematics And Wiring Harness Routing Diagrams
>>
Power Moding Wiring Schematics
>>

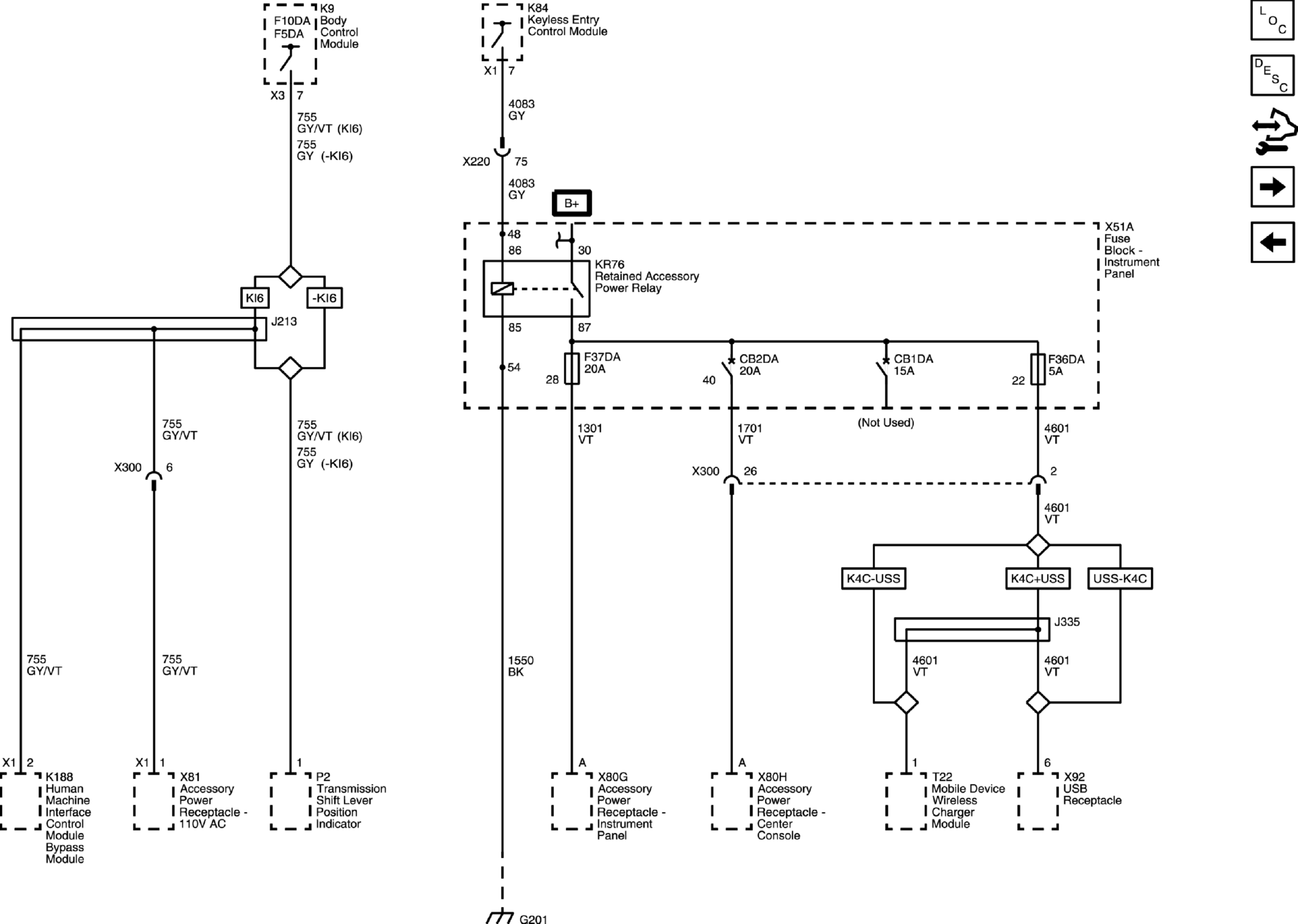

Accessory Power and Retained Accessory Power Relay
Accessory Power and Retained Accessory Power Relay
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
