Home >> Chevrolet >> 2018 >> Malibu LS >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Wiring Schematics And Wiring Harness Routing Diagrams >> Power Distribution Wiring Schematics >> F75UA, F76UA, F83UA, F84UA, F85UA, F88UA and F91UA Fuses

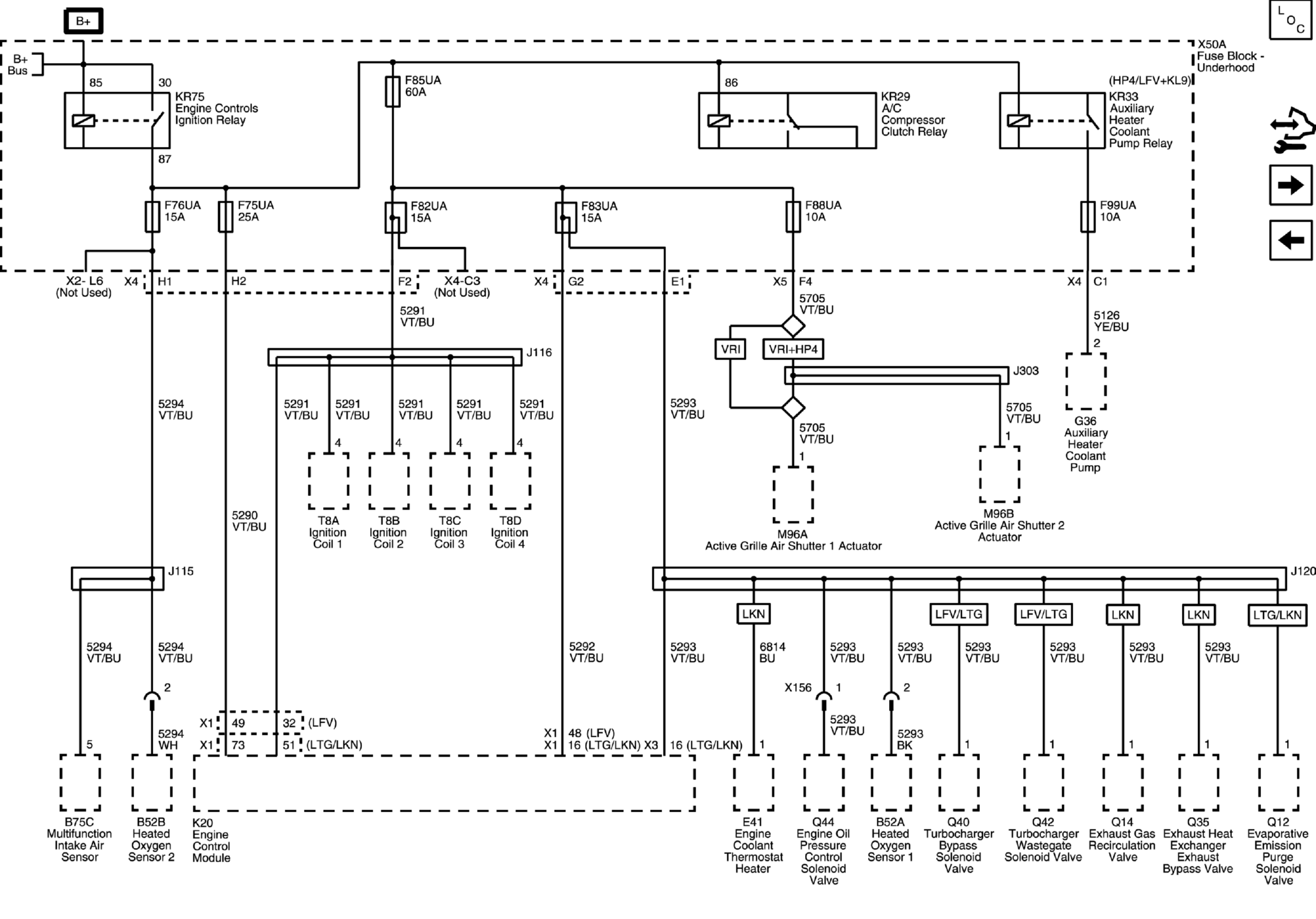

F75UA, F76UA, F83UA, F84UA, F85UA, F88UA and F91UA Fuses

GM4632347

Courtesy of GENERAL MOTORS COMPANY
