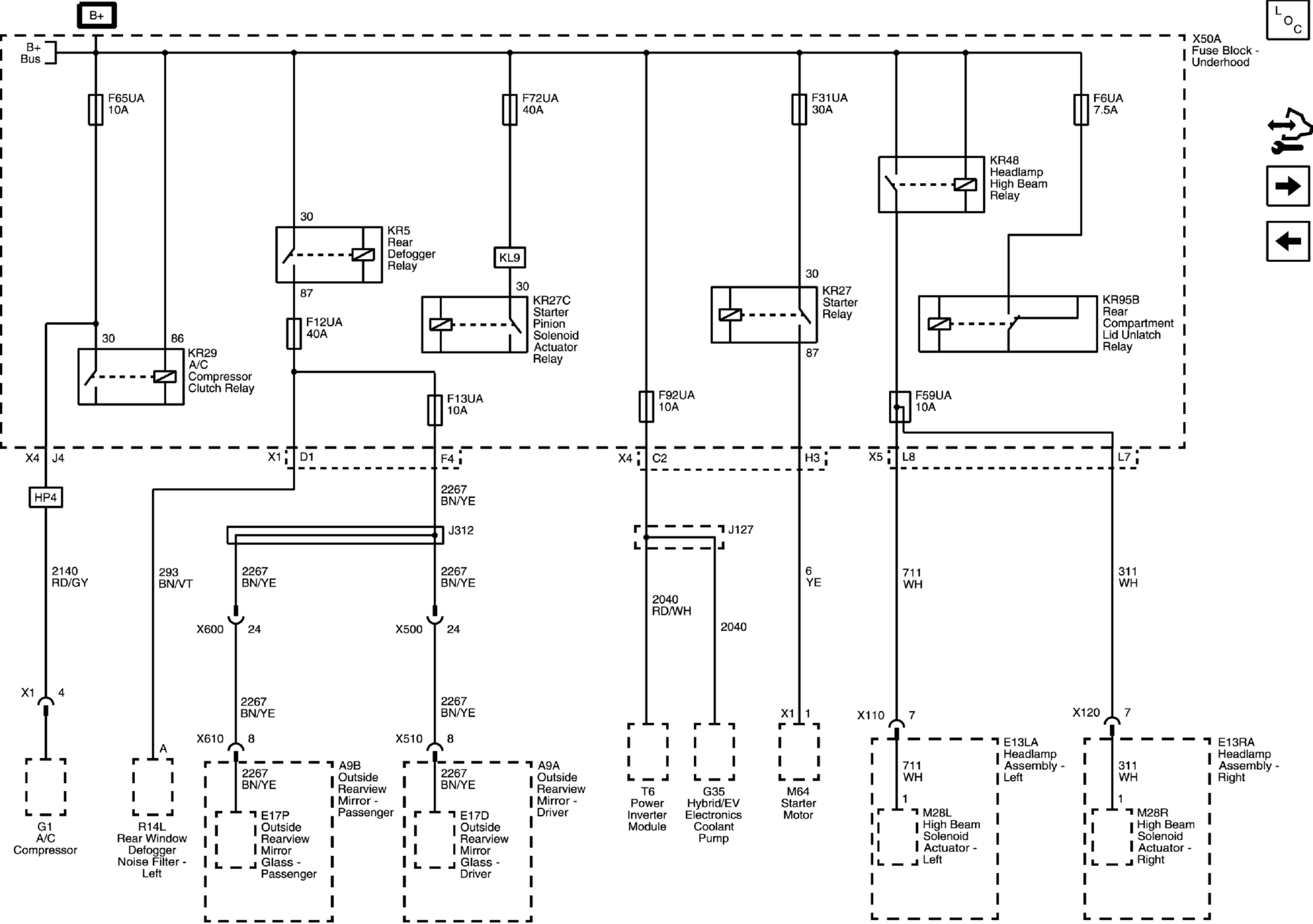

F6UA, F12UA, F13UA, F59UA, F65UA, F72UA and F74UA Fuses

GM4632367

Courtesy of GENERAL MOTORS COMPANY
