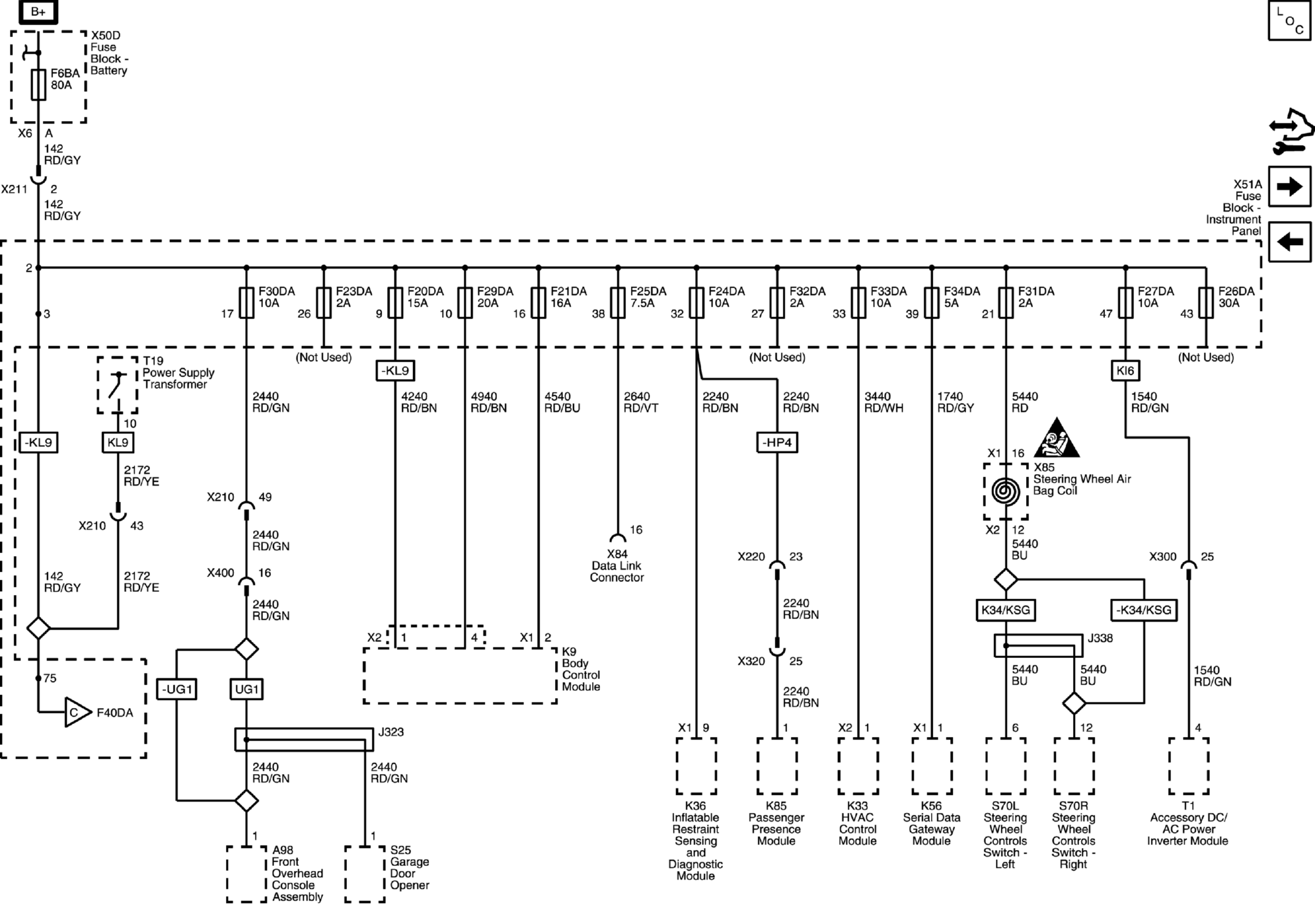

F6BA, F20DA, F21DA, F22DA, F23DA, F24DA, F25DA, F26DA, F27DA, F29DA, F30DA F31DA, F32DA, F33DA and F34DA Fuses

GM4632372

Courtesy of GENERAL MOTORS COMPANY
