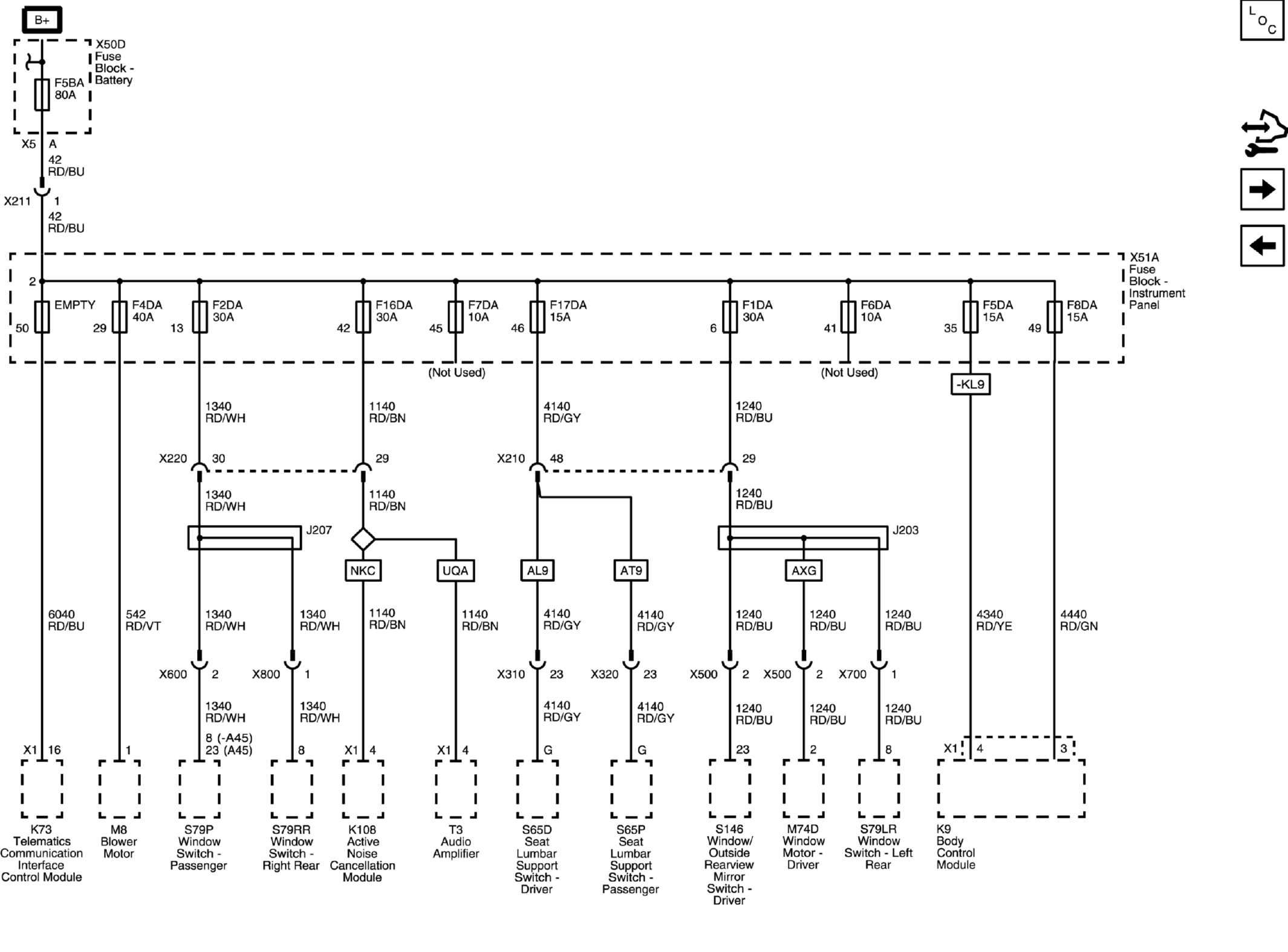

F5BA, F1DA, F2DA, F4DA, F5DA, F6DA, F7DA, F8DA, F16DA, F17DA, and F18DA Fuses

GM4632370

Courtesy of GENERAL MOTORS COMPANY
