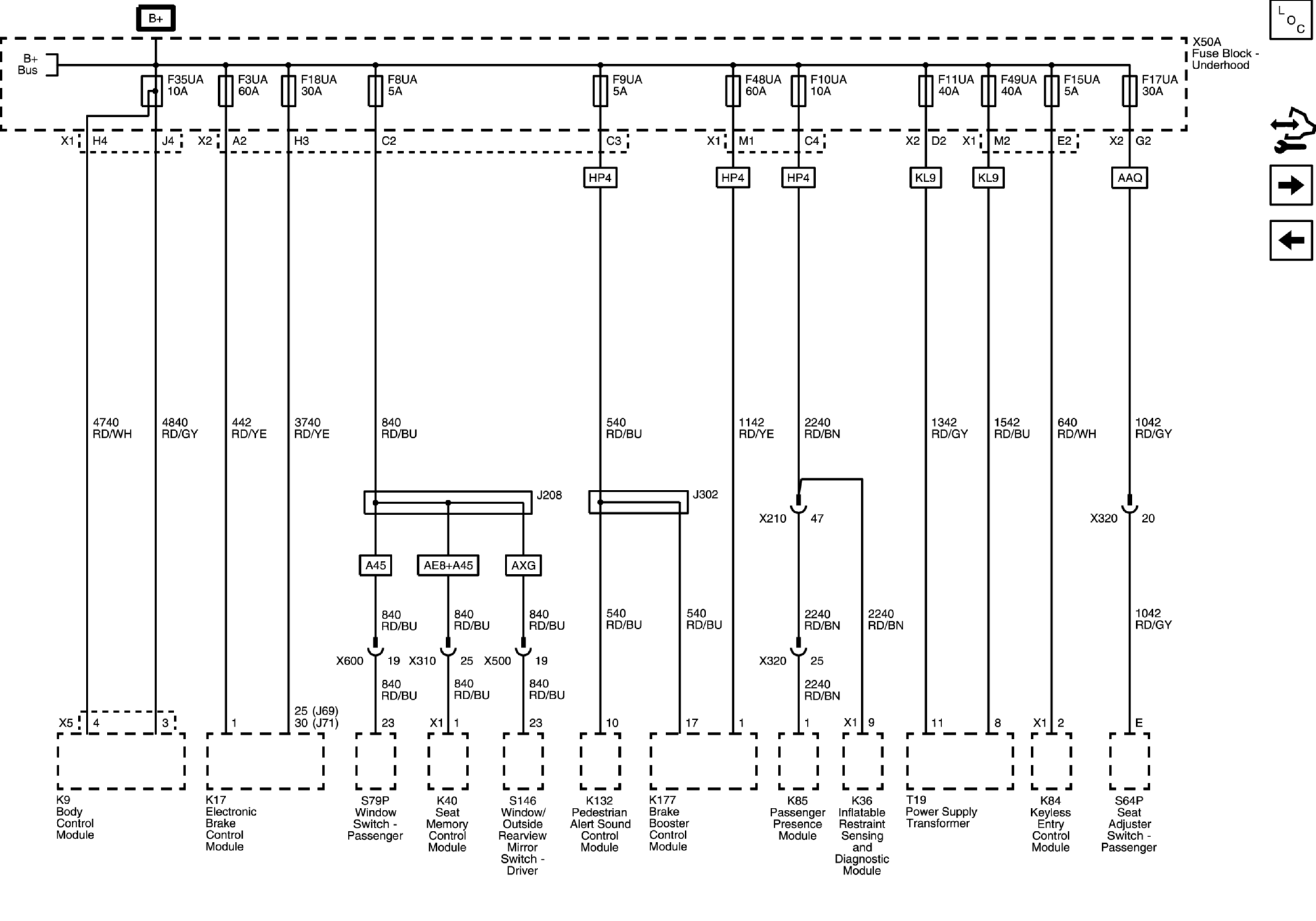

F3UA, F8UA, F9UA, F10UA, F11UA, F15UA, F17UA, F18UA, F35UA, and F49UA Fuses

GM4632327

Courtesy of GENERAL MOTORS COMPANY
