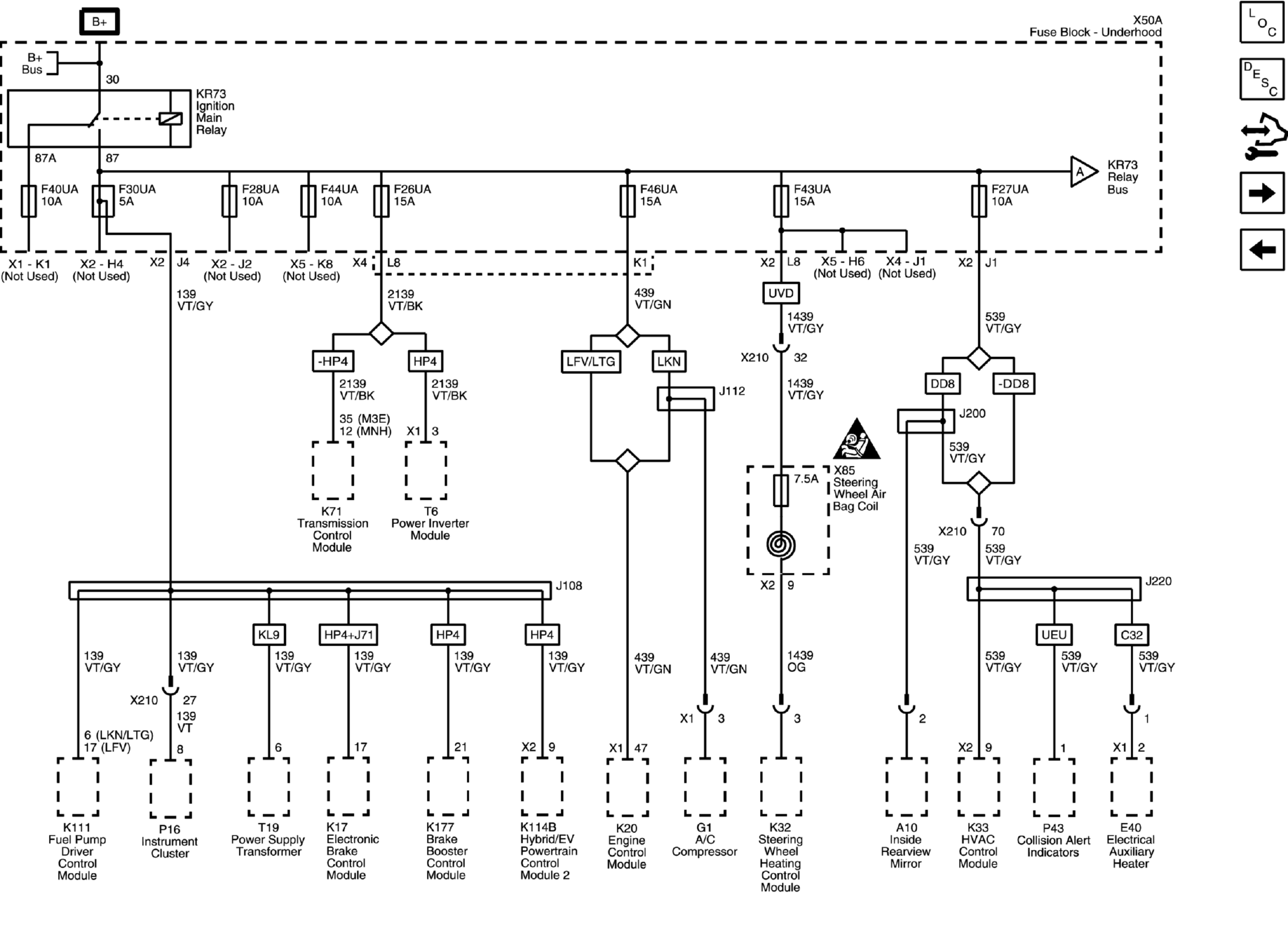

F26UA, F27UA, F28UA, F30UA, F40UA, F43UA, F44UA and F46UA Fuses

GM4632337

Courtesy of GENERAL MOTORS COMPANY
