Home >> Chevrolet >> 2018 >> Malibu LS >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Wiring Schematics And Wiring Harness Routing Diagrams >> Power Distribution Wiring Schematics >> F19UA, F21UA, F32UA, F33UA, F34UA, F59UA and F81UA Fuses

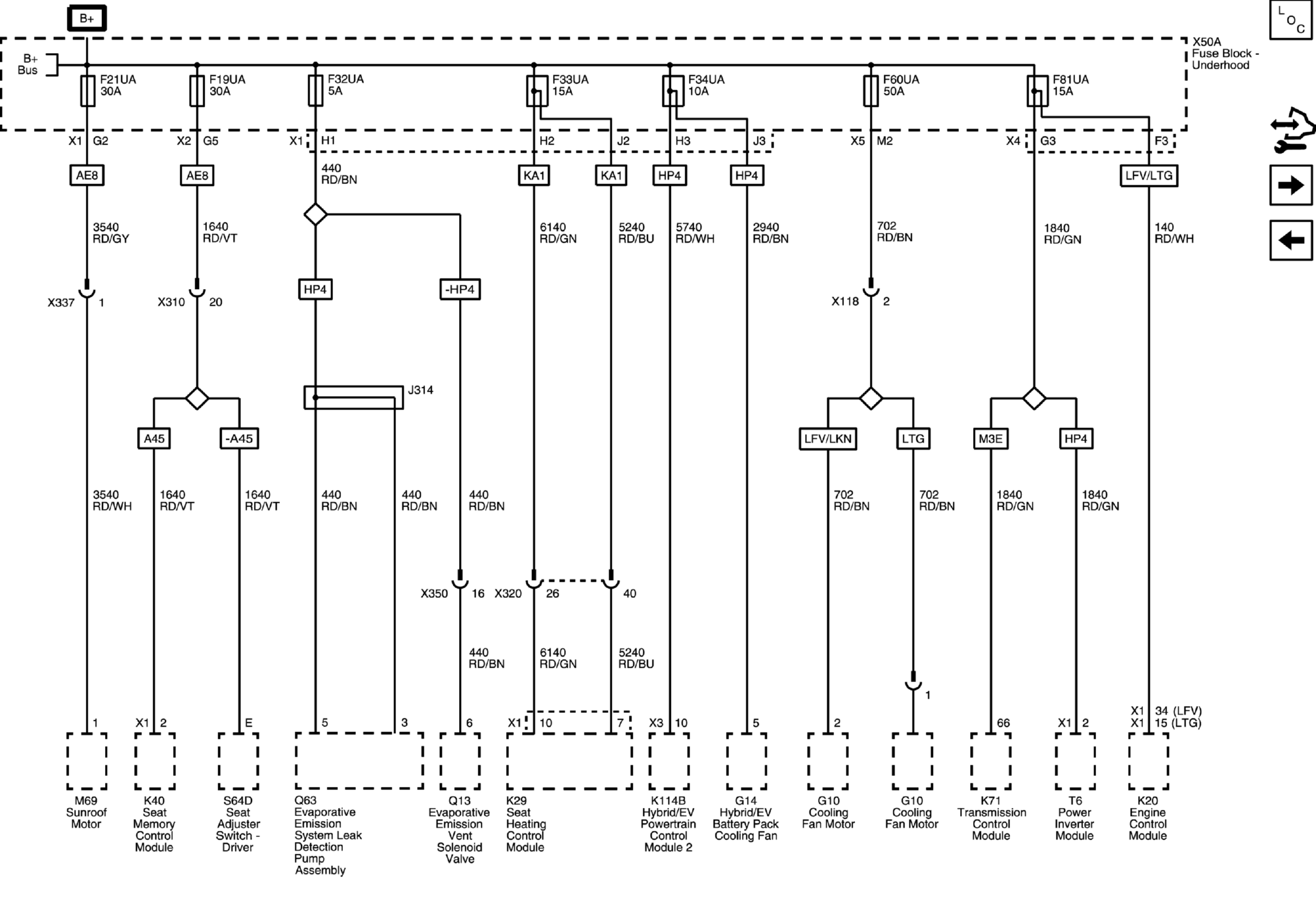

F19UA, F21UA, F32UA, F33UA, F34UA, F59UA and F81UA Fuses

GM4632329

Courtesy of GENERAL MOTORS COMPANY
