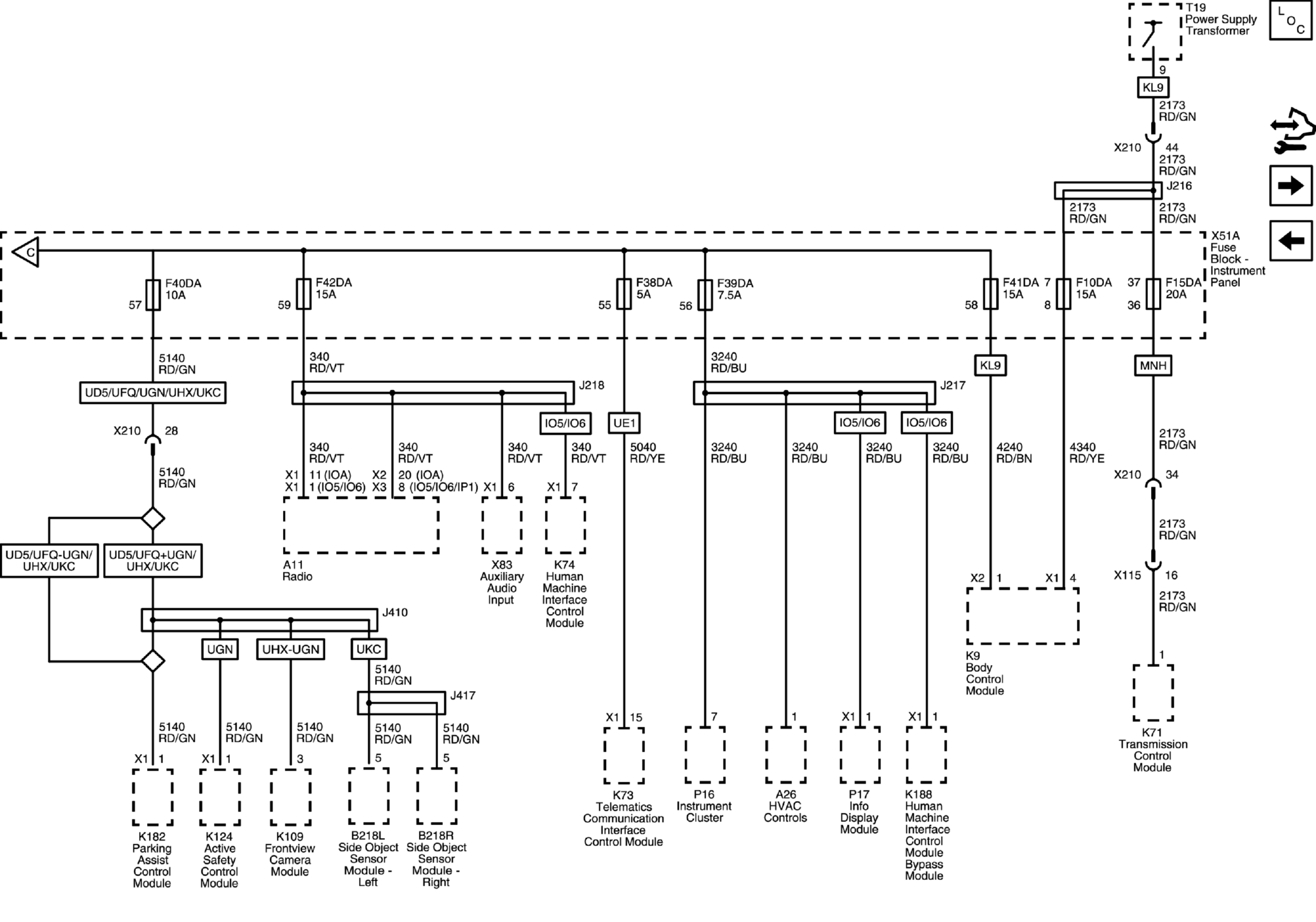

F10DA, F15DA, F38DA, F39DA, F40DA, F41DA, and F42DA Fuses

GM4632371

Courtesy of GENERAL MOTORS COMPANY
