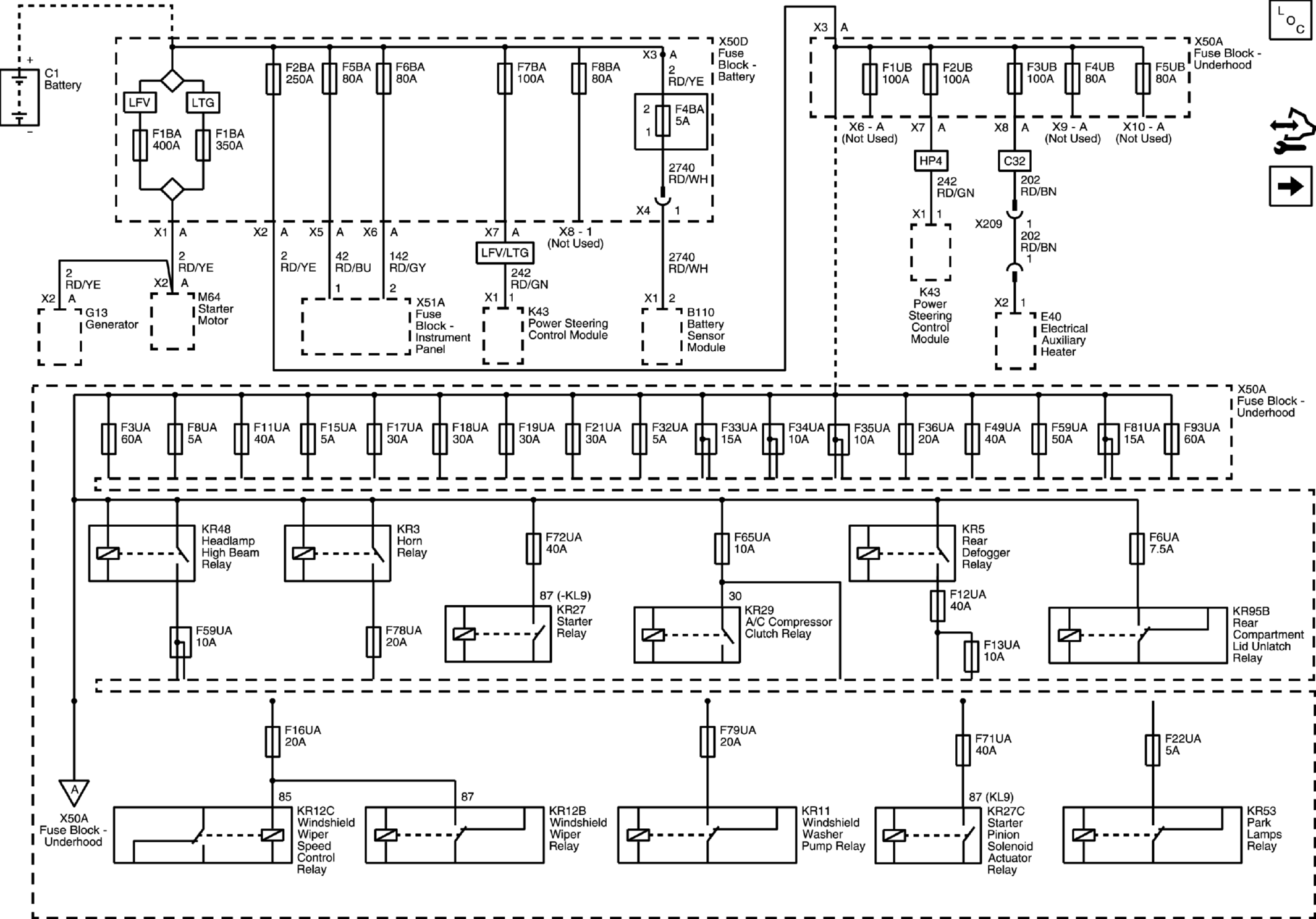

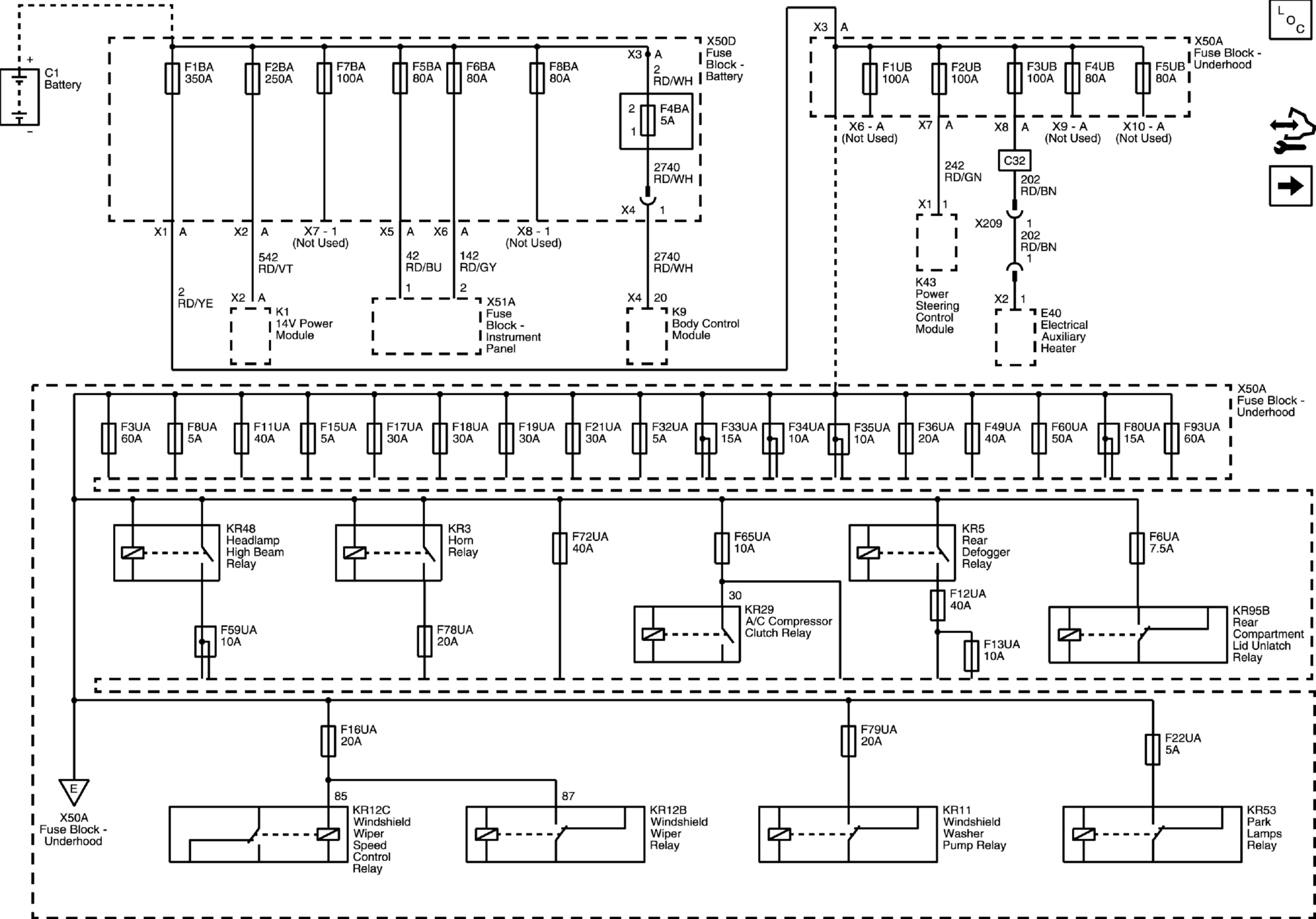

Home >> Chevrolet >> 2018 >> Malibu LS >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Wiring Schematics And Wiring Harness Routing Diagrams >> Power Distribution Wiring Schematics >> B+ Bus (1 of 2) (-HP4)
