Home >> Chevrolet >> 2018 >> Malibu LS >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Wiring Schematics And Wiring Harness Routing Diagrams >> Ground Distribution Wiring Schematics >> G406

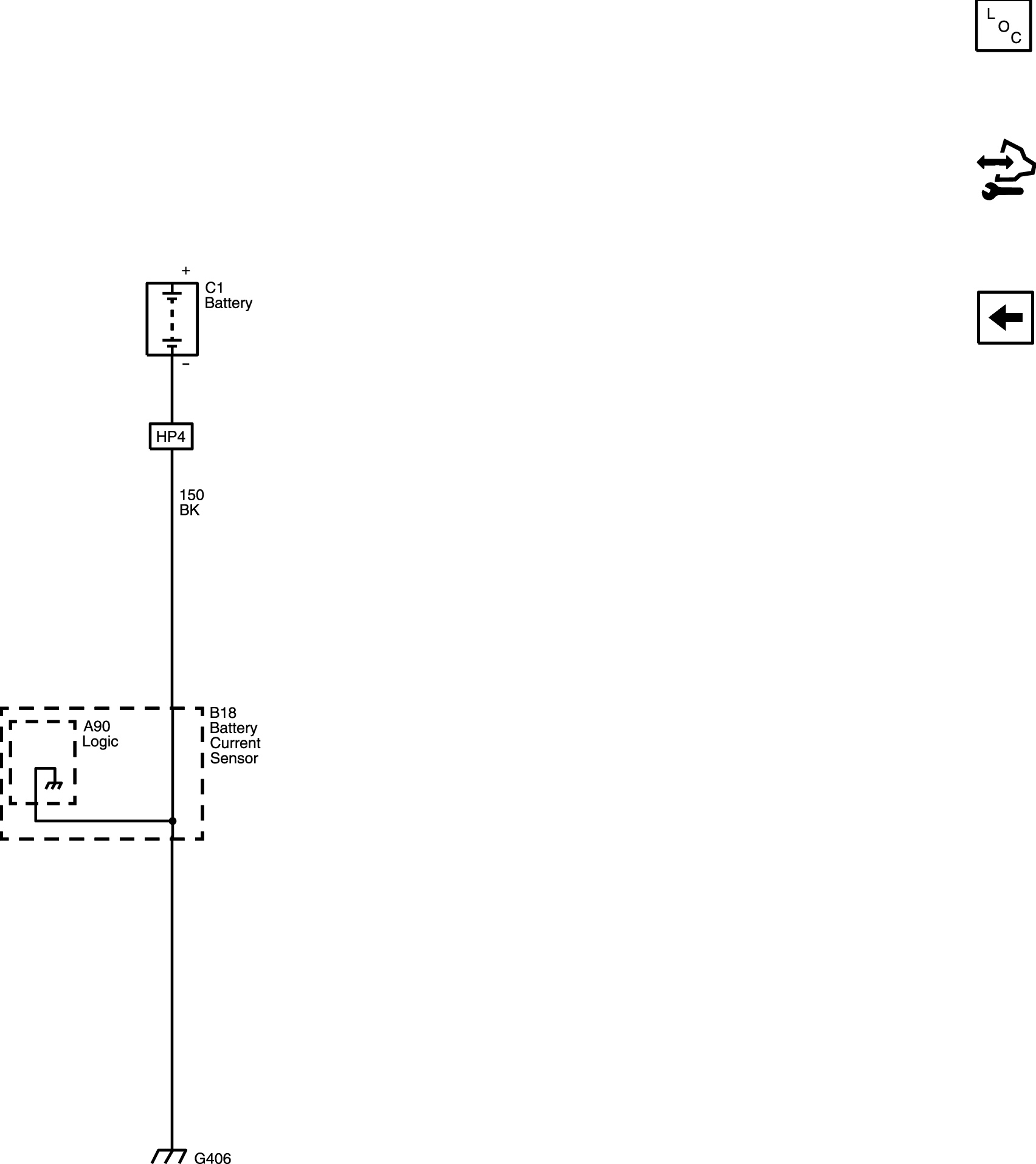

Ground Distribution Wiring Schematics: G406

GM4632404Courtesy of GENERAL MOTORS COMPANY
